Remove a PCIe Card
5.

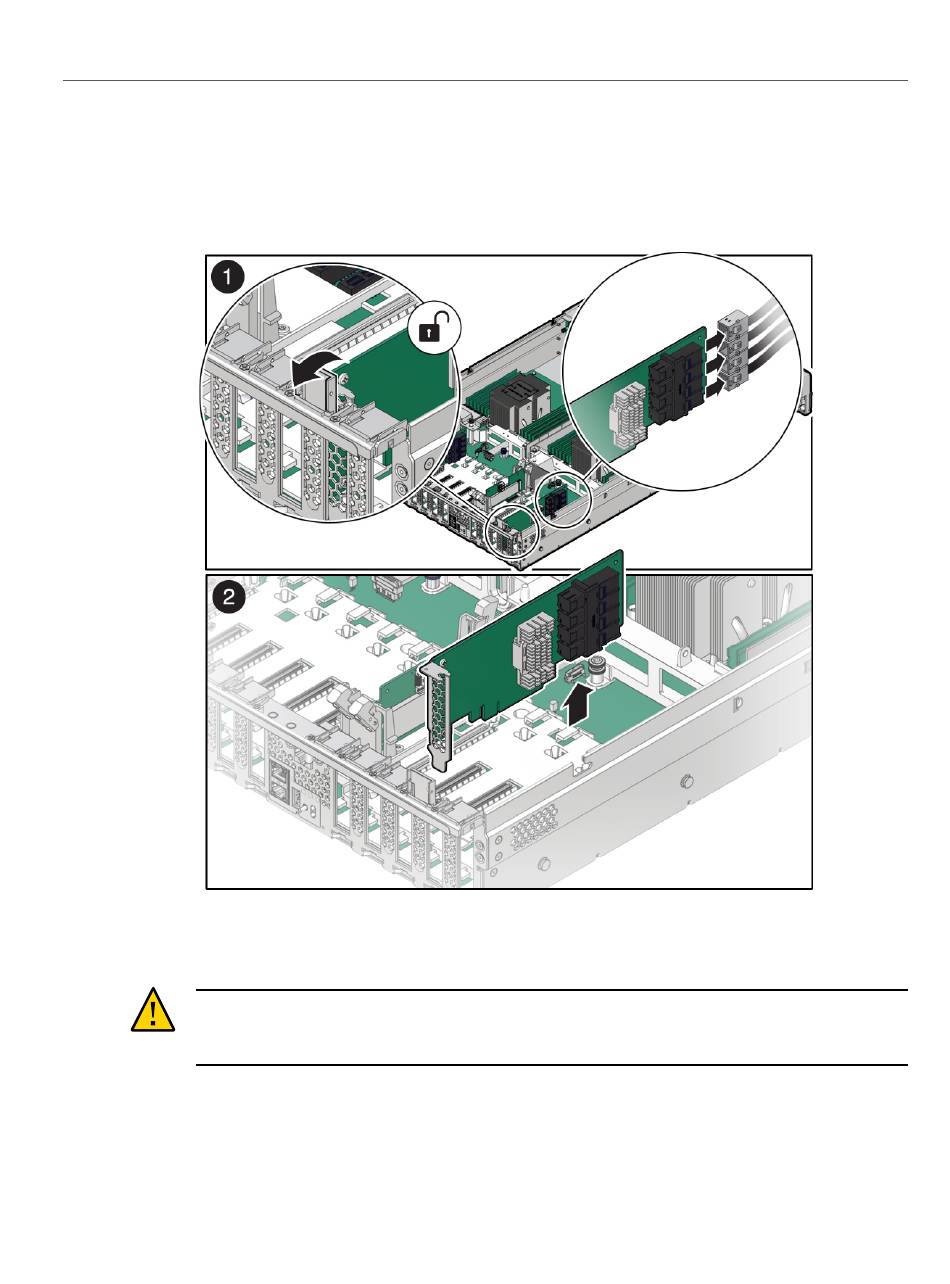

Rotate the PCIe card locking mechanism in to an upright position [1], and then
lift up on the PCIe card to disengage it from the motherboard connectors [2].
Place the PCIe card on an antistatic mat.
6.
Caution -
insert a PCIe filler panel in the slot to reduce the possibility of radiated electromagnetic
interference (EMI). See
136
Oracle Server X8-2L Service Manual • January 2021
If you are not immediately inserting a replacement PCIe card into the empty slot,
"Remove and Install Filler Panels" on page
217.
