Install a Processor
c.

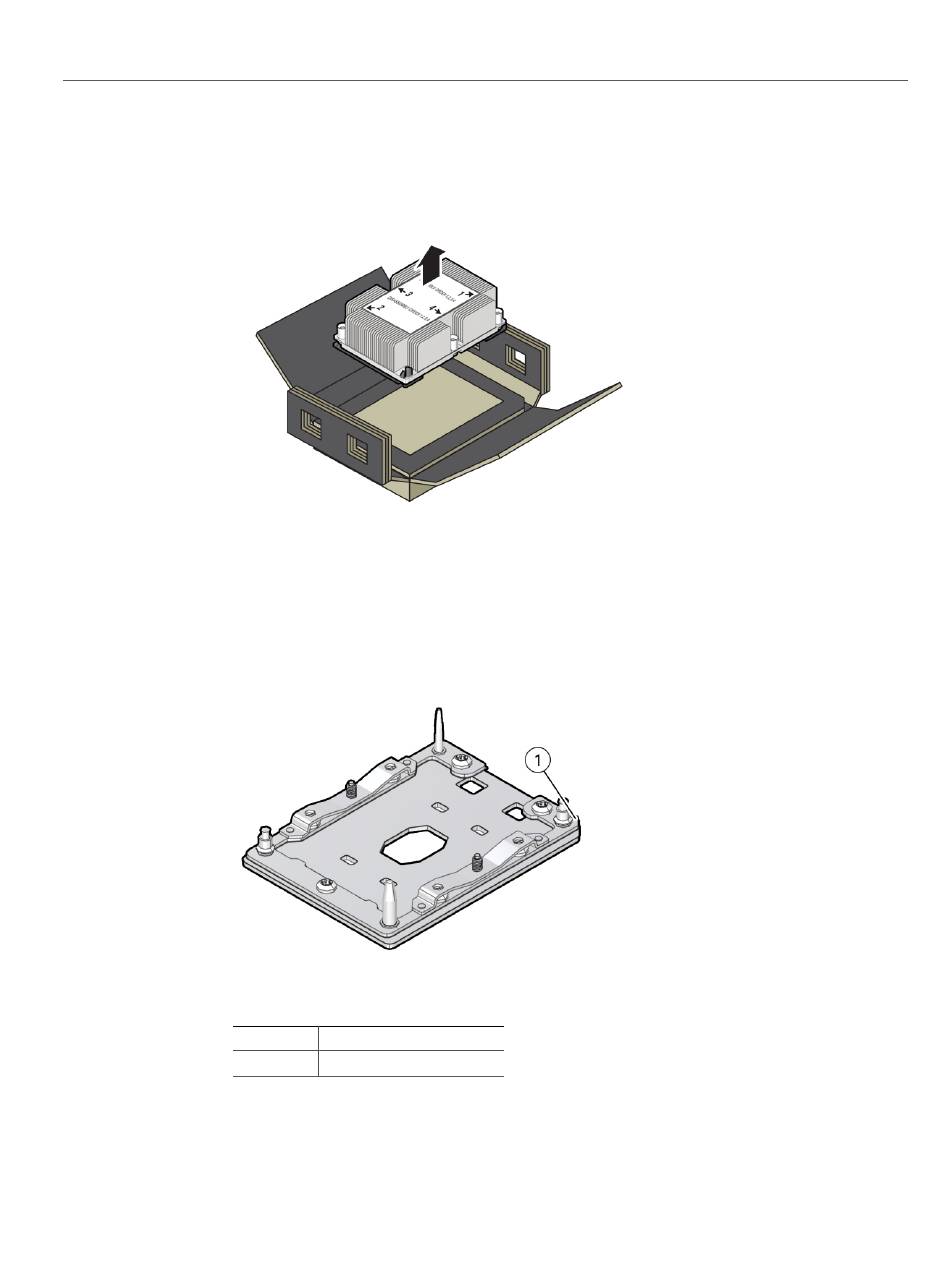

Lift the processor-heatsink module out of the packaging tray.
Align the processor-heatsink module to the processor socket bolster plate
d.
on the motherboard, matching the pin 1 location [1].
A small pin 1 indicator (triangle) is near the beveled corner of the socket.
Callout
1
154
Oracle Server X8-2L Service Manual • January 2021
Description
Pin 1 indicator
