Identify and Remove a Processor

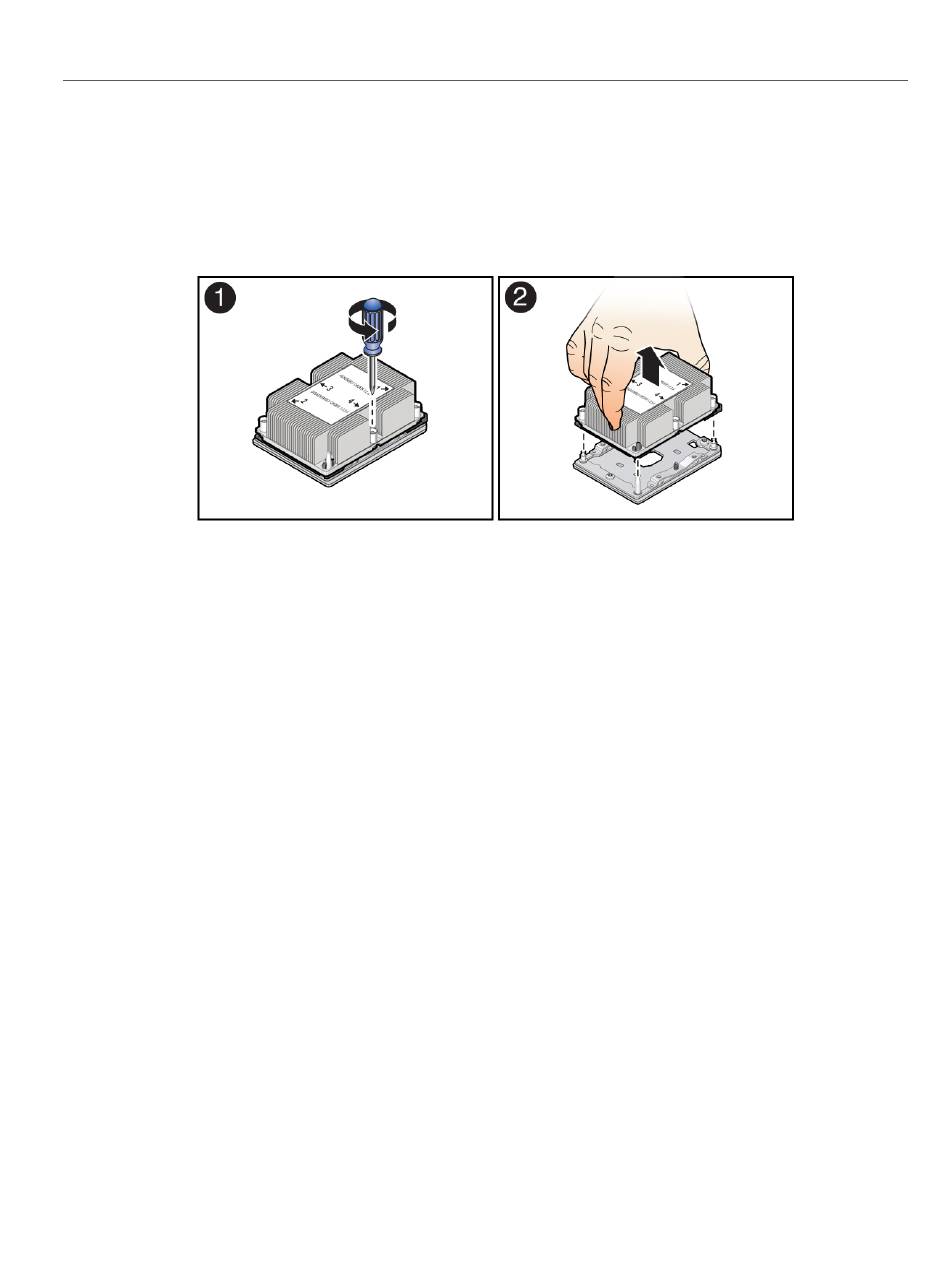

3. Using a Torx T30 screwdriver, loosen the four captive nuts that secure the
processor-heatsink module to the socket: fully loosen nut 4, then 3, then 2, then
1 [1].
Lift the processor-heatsink module from the socket [2].
4.
Always hold the processor-heatsink module along the axis of the fins to prevent damage.
5. Separate the processor from the heatsink.
