TORQUE
Oil Pan Bolts:
M8 Bolts:
26 ft-lb (35 Nm)
M6 Bolts:
9 ft-lb (12 Nm)
26. Reinstall the crankcase drain plug if previously
removed. Torque drain plug to specification.
TORQUE
Crankcase Drain Plug:
12 ft-lbs (16 Nm)
l
27. Reinstall the oil cooler , if previously removed. Use
1(
new O-rings upon installation. Torque fasteners to
specification.
TORQUE
Oil Cooler bolts:
7 ft-lb (10 Nm)
28. Proceed to Flywheel Installation, page 3.82 and then
Cylinder Head Installation, page
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.

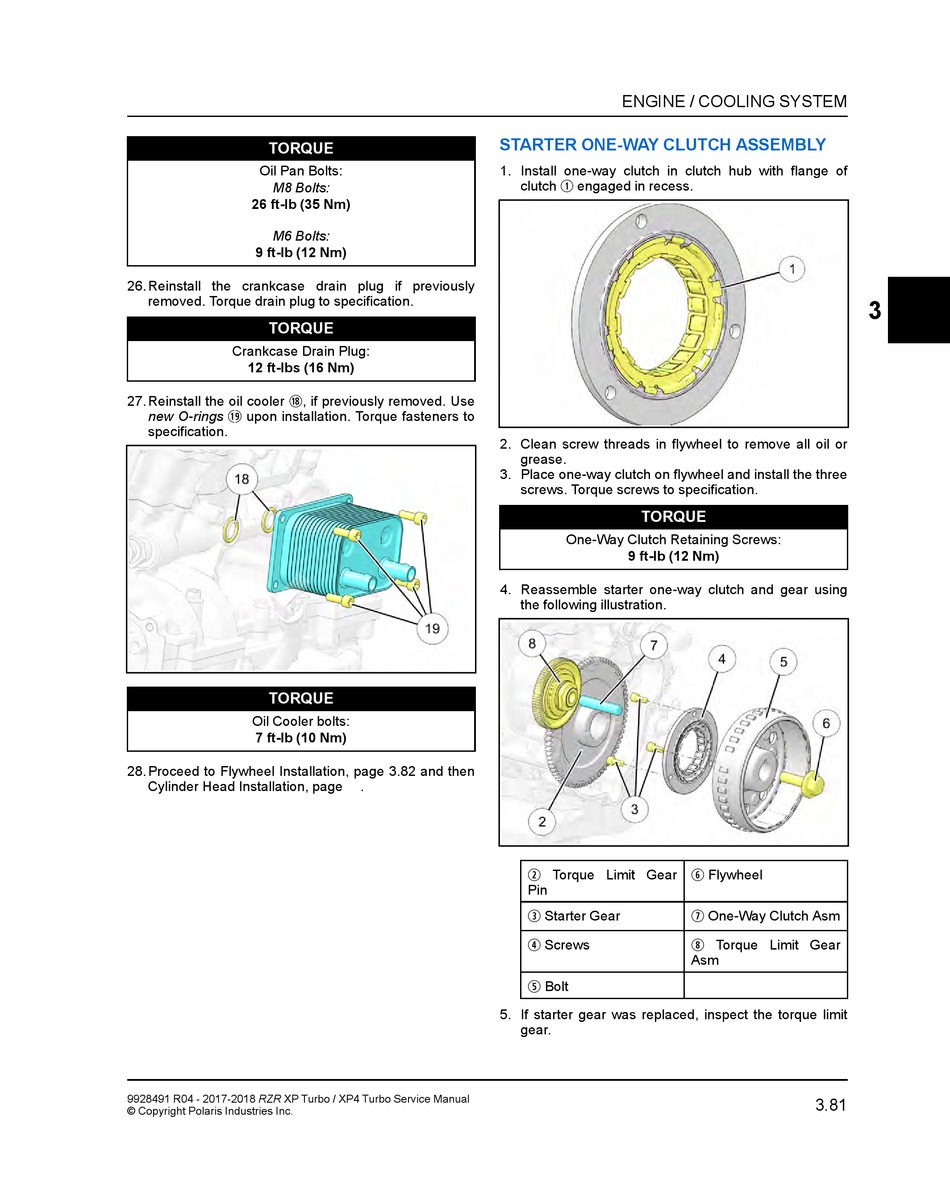

STARTER ONE-WAY CLUTCH ASSEMBLY

1. Install one-way clutch in clutch hub with flange of
clutch
2. Clean screw threads in flywheel to remove all oil or
grease.
3. Place one-way clutch on flywheel and install the three
screws. Torque screws to specification.
4. Reassemble starter one-way clutch and gear using
the following illustration.
.
w
Pin
e
r
t
5. If starter gear was replaced, inspect the torque limit
gear.
ENGINE / COOLING SYSTEM
q
engaged in recess.
TORQUE
One-Way Clutch Retaining Screws:
9 ft-lb (12 Nm)
y
Torque Limit Gear Flywheel
u
Starter Gear One-Way Clutch Asm
i
Screws Torque Limit Gear
Asm
Bolt
3
3.81
