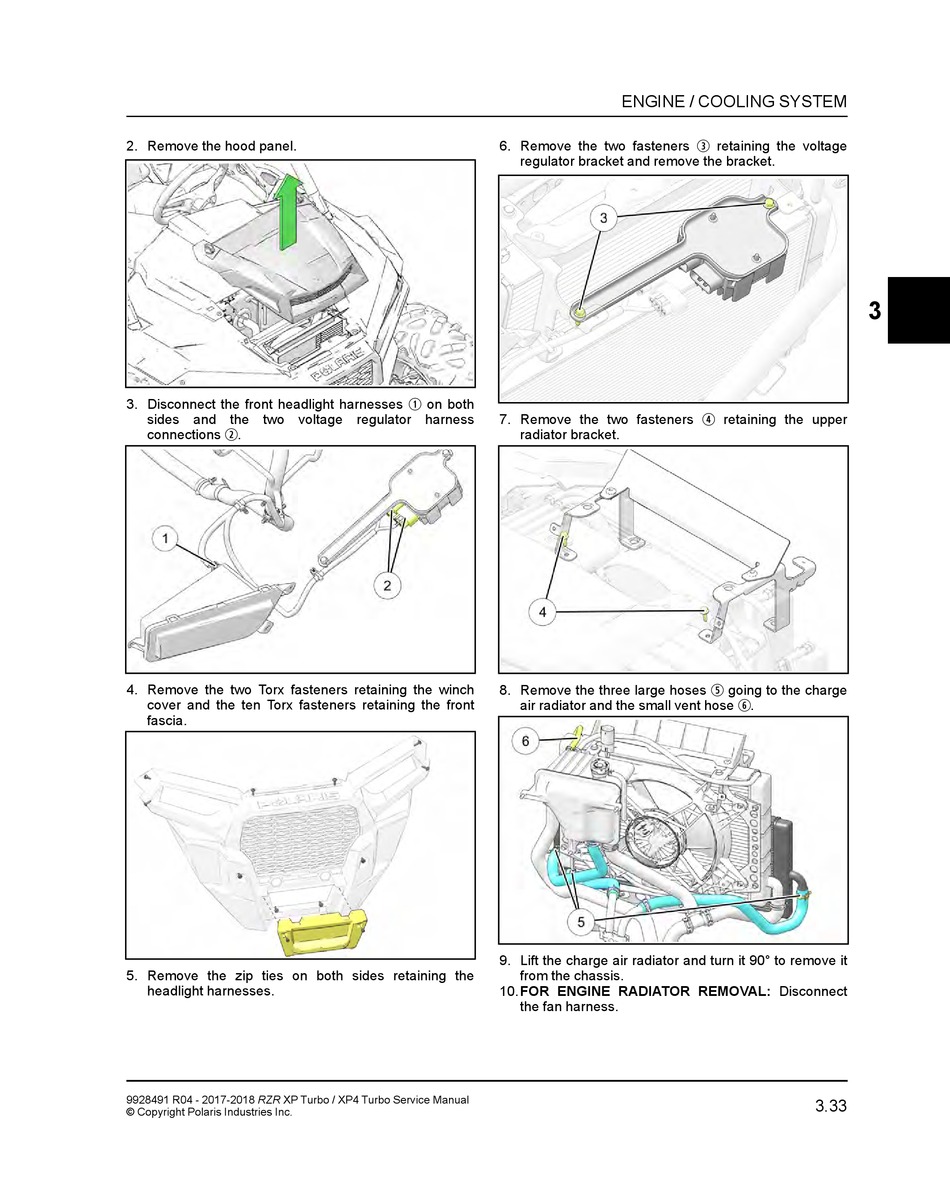

2. Remove the hood panel.
3. Disconnect the front headlight harnesses
sides and the two voltage regulator harness
w
connections .
4. Remove the two Torx fasteners retaining the winch
cover and the ten Torx fasteners retaining the front
fascia.
5. Remove the zip ties on both sides retaining the
headlight harnesses.
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
6. Remove the two fasteners
regulator bracket and remove the bracket.
q
on both
7. Remove the two fasteners
radiator bracket.
8. Remove the three large hoses
air radiator and the small vent hose
9. Lift the charge air radiator and turn it 90° to remove it
from the chassis.
10. FOR ENGINE RADIATOR REMOVAL: Disconnect
the fan harness.
