MAINTENANCE

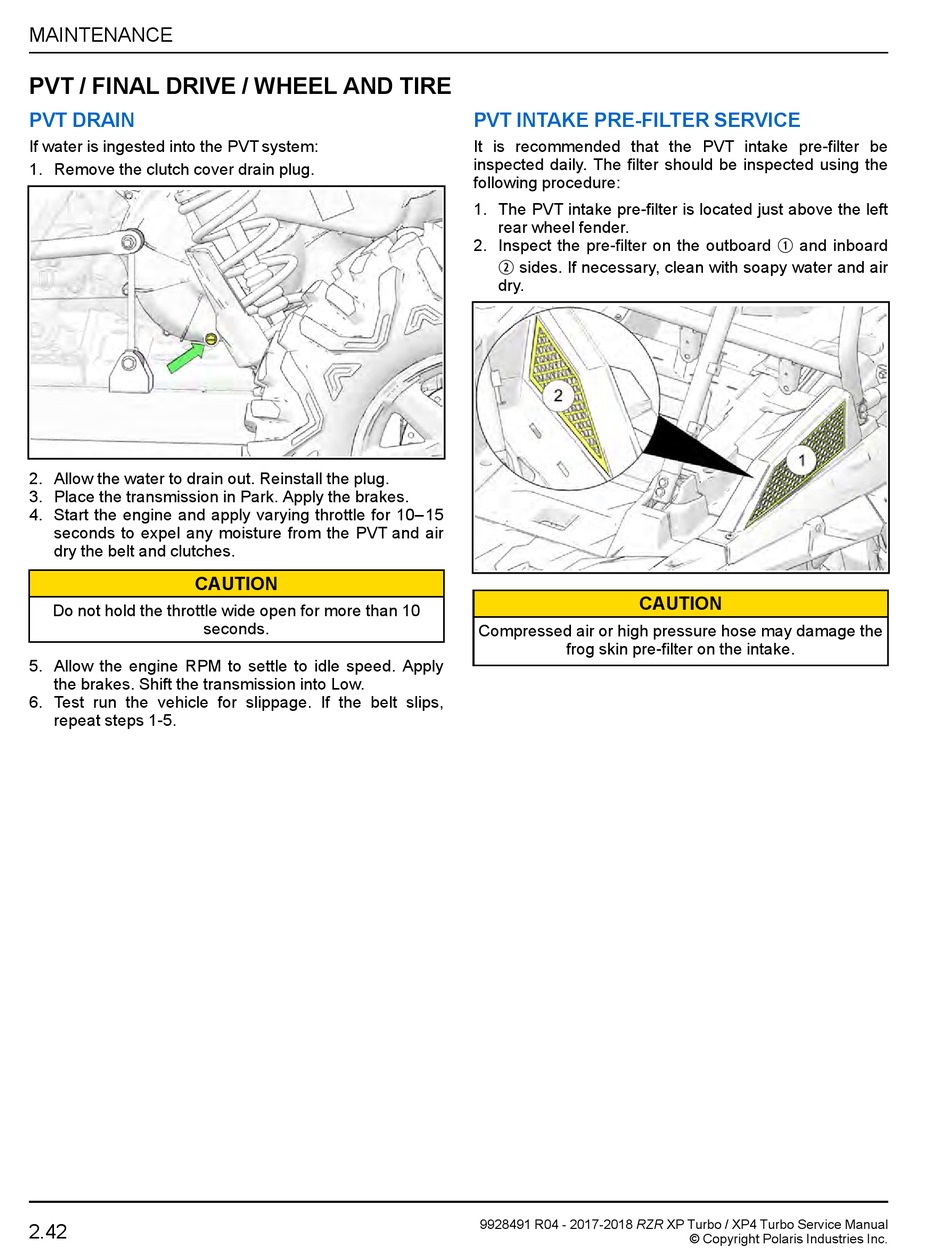

PVT / FINAL DRIVE / WHEEL AND TIRE

PVT DRAIN

If water is ingested into the PVT system:
1. Remove the clutch cover drain plug.
2. Allow the water to drain out. Reinstall the plug.
3. Place the transmission in Park. Apply the brakes.
4. Start the engine and apply varying throttle for 10–15
seconds to expel any moisture from the PVT and air
dry the belt and clutches.
CAUTION
Do not hold the throttle wide open for more than 10
seconds.
5. Allow the engine RPM to settle to idle speed. Apply
the brakes. Shift the transmission into Low.
6. Test run the vehicle for slippage. If the belt slips,
repeat steps 1-5.
2.42

PVT INTAKE PRE-FILTER SERVICE

It is recommended that the PVT intake pre-filter be
inspected daily. The filter should be inspected using the
following procedure:
1. The PVT intake pre-filter is located just above the left
rear wheel fender.
2. Inspect the pre-filter on the outboard
w
sides. If necessary, clean with soapy water and air
dry.
CAUTION
Compressed air or high pressure hose may damage the
frog skin pre-filter on the intake.
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
q
and inboard
