STEERING / SUSPENSION

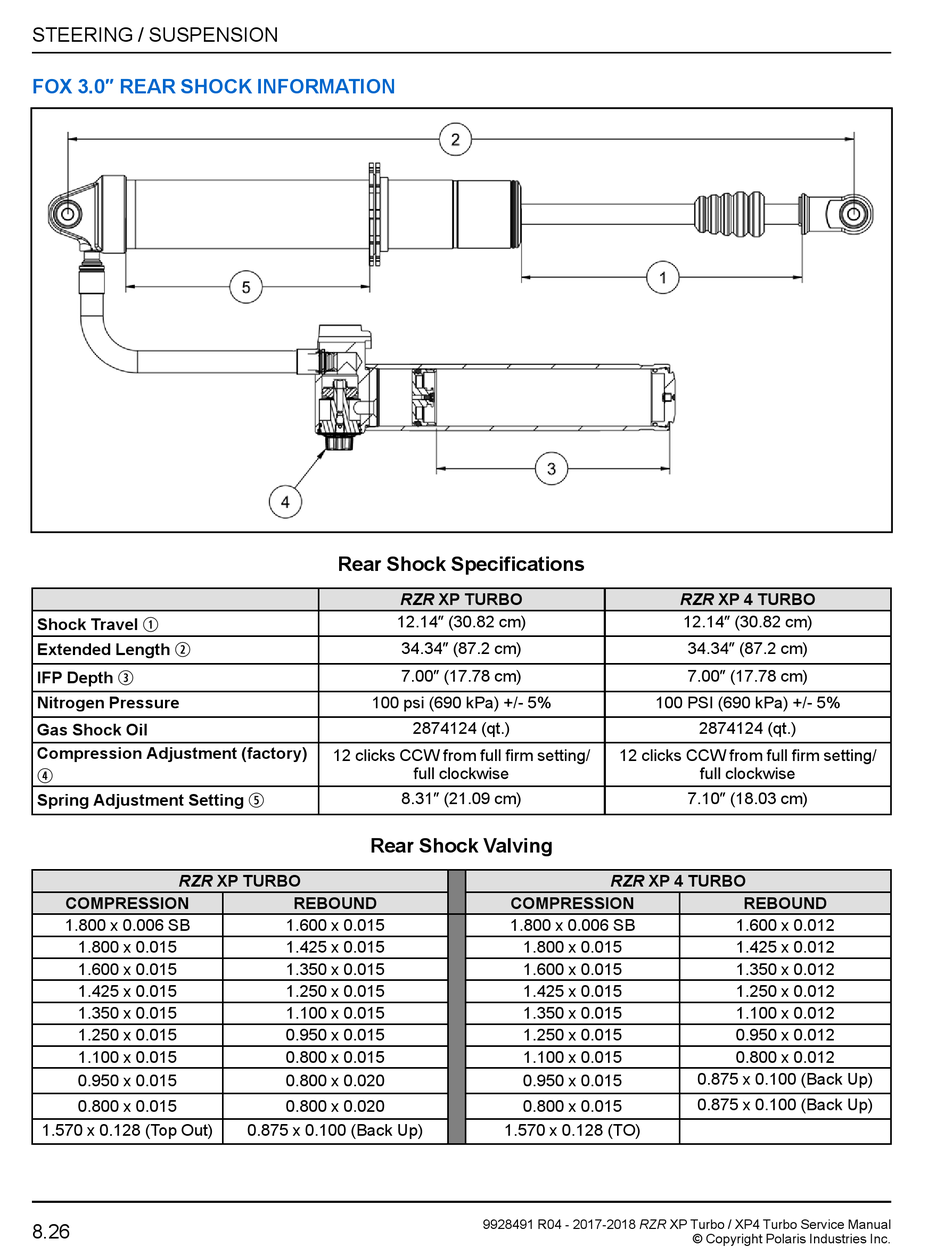

FOX 3.0" REAR SHOCK INFORMATION

q
Shock Travel
w
Extended Length
e
IFP Depth
Nitrogen Pressure
Gas Shock Oil
Compression Adjustment (factory)
r
Spring Adjustment Setting
RZR XP TURBO
COMPRESSION
1.800 x 0.006 SB
1.800 x 0.015
1.600 x 0.015
1.425 x 0.015
1.350 x 0.015
1.250 x 0.015
1.100 x 0.015
0.950 x 0.015
0.800 x 0.015
1.570 x 0.128 (Top Out)
8.26
Rear Shock Specifications
RZR XP TURBO
12.14" (30.82 cm)
34.34" (87.2 cm)
7.00" (17.78 cm)
100 psi (690 kPa) +/- 5%
2874124 (qt.)
12 clicks CCW from full firm setting/
full clockwise
t
8.31" (21.09 cm)
Rear Shock Valving
REBOUND
1.600 x 0.015
1.425 x 0.015
1.350 x 0.015
1.250 x 0.015
1.100 x 0.015
0.950 x 0.015
0.800 x 0.015
0.800 x 0.020
0.800 x 0.020
0.875 x 0.100 (Back Up)
100 PSI (690 kPa) +/- 5%
12 clicks CCW from full firm setting/
RZR XP 4 TURBO
COMPRESSION
1.800 x 0.006 SB
1.800 x 0.015
1.600 x 0.015
1.425 x 0.015
1.350 x 0.015
1.250 x 0.015
1.100 x 0.015
0.950 x 0.015
0.800 x 0.015
1.570 x 0.128 (TO)
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
RZR XP 4 TURBO
12.14" (30.82 cm)
34.34" (87.2 cm)
7.00" (17.78 cm)
2874124 (qt.)
full clockwise
7.10" (18.03 cm)
REBOUND
1.600 x 0.012
1.425 x 0.012
1.350 x 0.012
1.250 x 0.012
1.100 x 0.012
0.950 x 0.012
0.800 x 0.012
0.875 x 0.100 (Back Up)
0.875 x 0.100 (Back Up)
