Polaris RZR XP Turbo Service Manual page 102

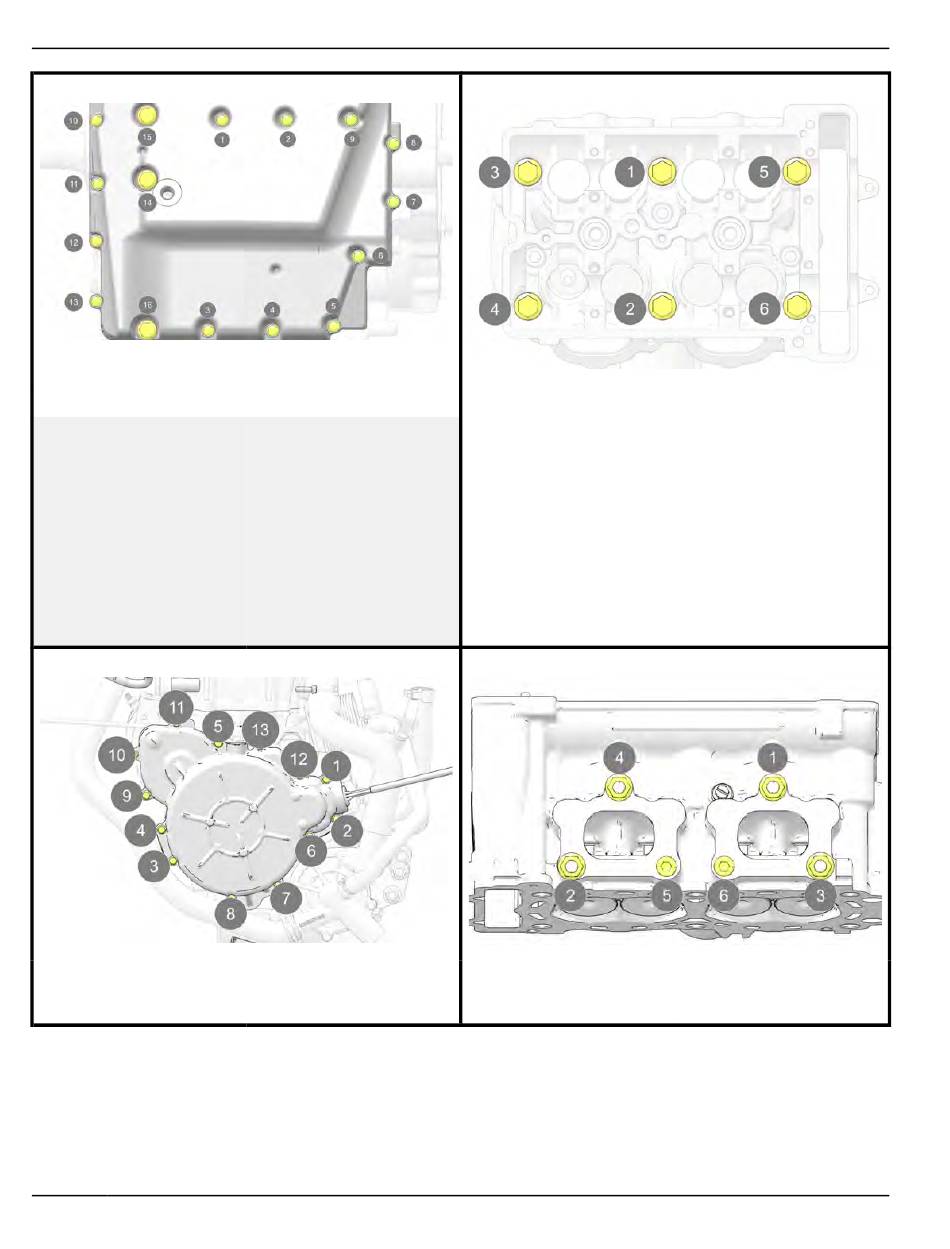

ENGINE / COOLING SYSTEM
SUMP COVER / OIL PAN
M8
M6
STATOR COVER
Stator Cover Bolts
3.10
26 ft-lb (35 Nm)
9 ft-lb (12 Nm)
9 ft-lb (12 Nm)
CYLINDER HEAD
Cylinder Head Bolts
HEAD PIPE / TURBO
Exhaust Head Pipe
Fasteners
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
Torque in sequence
Step 1: 13 ft-lbs (18
Nm)
Step 2: 26 ft-lb (35
Nm)
Step 3: Additional
180°
Step 4: Additional
180°
Step 5: M6 bolts: 7 ft-
lb (10 Nm)
18 ft-lb (24 Nm)
