STEERING / SUSPENSION
9. With the retaining ring fully installed, position LSC
with IFP tool.
10. Install retaining ring.
11. Press spherical bearing into position.
12. Install retaining ring.
13. Apply Loctite 638 to shaft, 2 threads up, 2 threads
wide 360°.
14. Torque eyelet to specification with shaft secured in
clamp blocks.
TORQUE
Shock Eyelet:
50 ft-lb (68 Nm)
15. Install 398-00-095-B Bullet tool on shaft to install
bumper.
16. Install body cap.
17. Install T-seal.
18. Install 1st T-seal back-up ring.
19. Install 2nd T-seal back-up ring
20. Install wiper seal.
21. Lubricate all seals with Slick Honey.

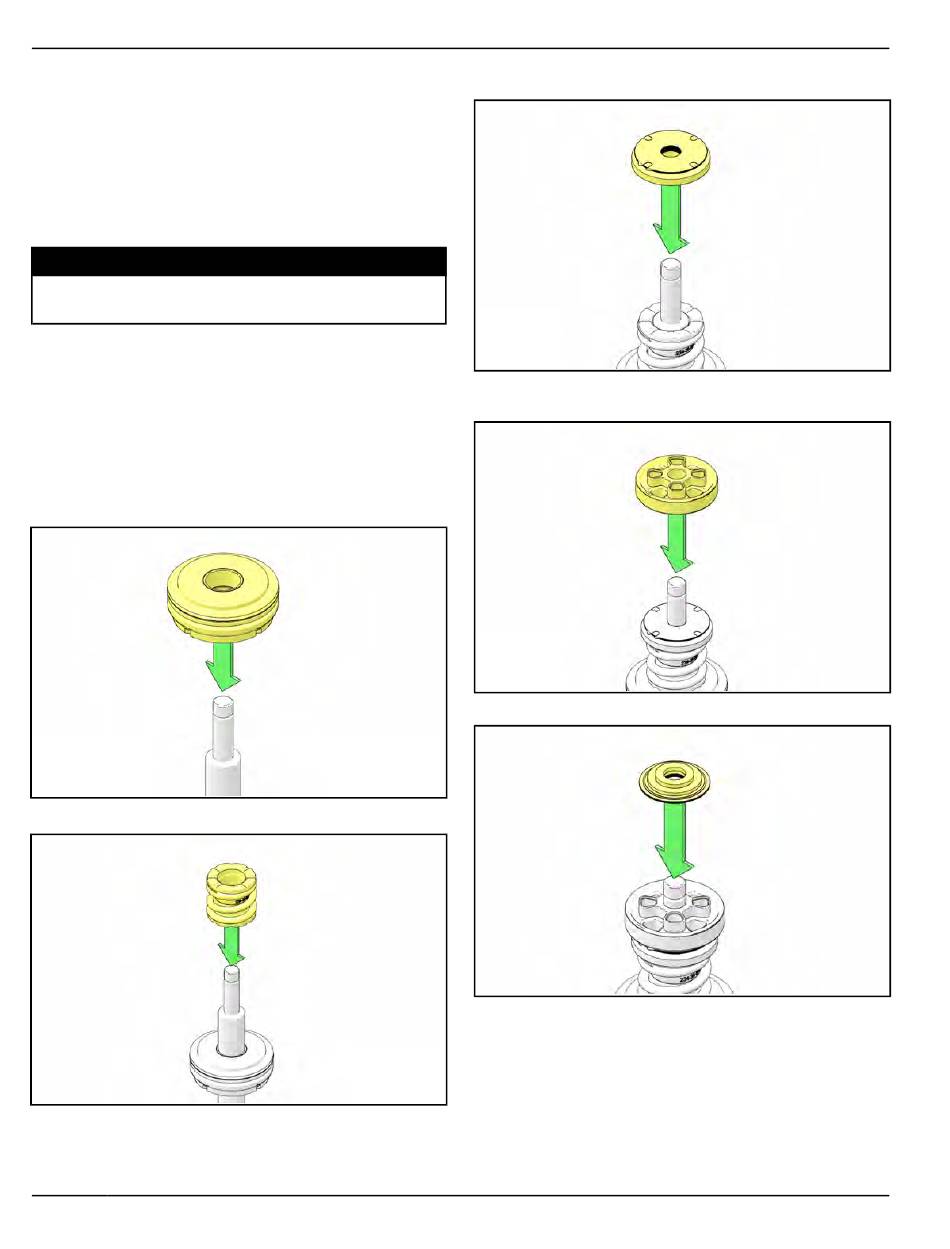

22. Install external o-ring.
23. Install bearing assembly with cinch ring.
24. Install negative spring assembly.
8.38
25. Install compression valve stack.
26. Install piston with compression port in-line with bleed
shim.
27. Install rebound valve stack.
28. Install shaft nut and torque to specification.
