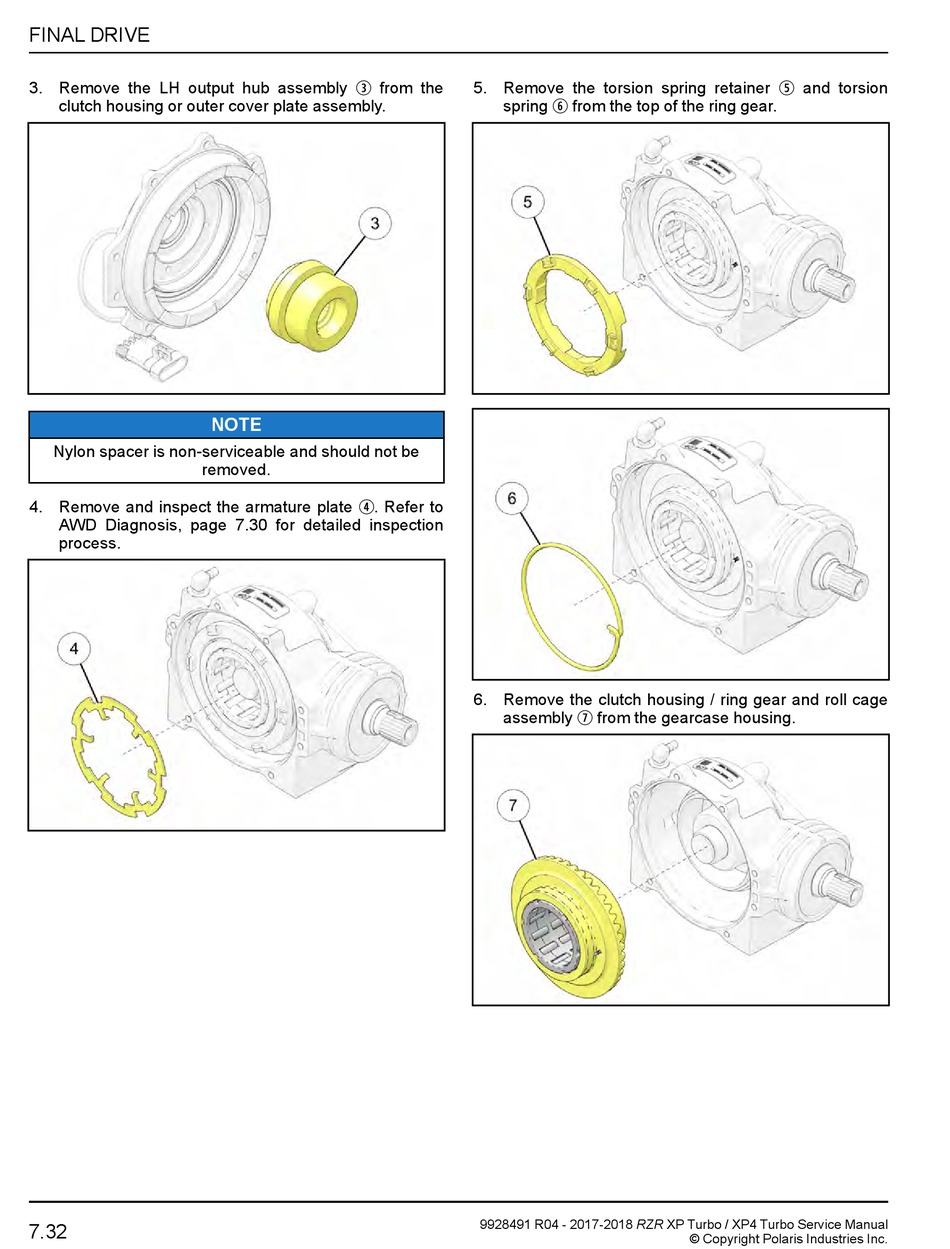

FINAL DRIVE
3. Remove the LH output hub assembly
clutch housing or outer cover plate assembly.
Nylon spacer is non-serviceable and should not be
removed.
4. Remove and inspect the armature plate
AWD Diagnosis, page 7.30 for detailed inspection
process.
7.32
e
from the
NOTE
r
. Refer to
5. Remove the torsion spring retainer
y
spring from the top of the ring gear.
6. Remove the clutch housing / ring gear and roll cage
u
assembly from the gearcase housing.
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
t
and torsion
