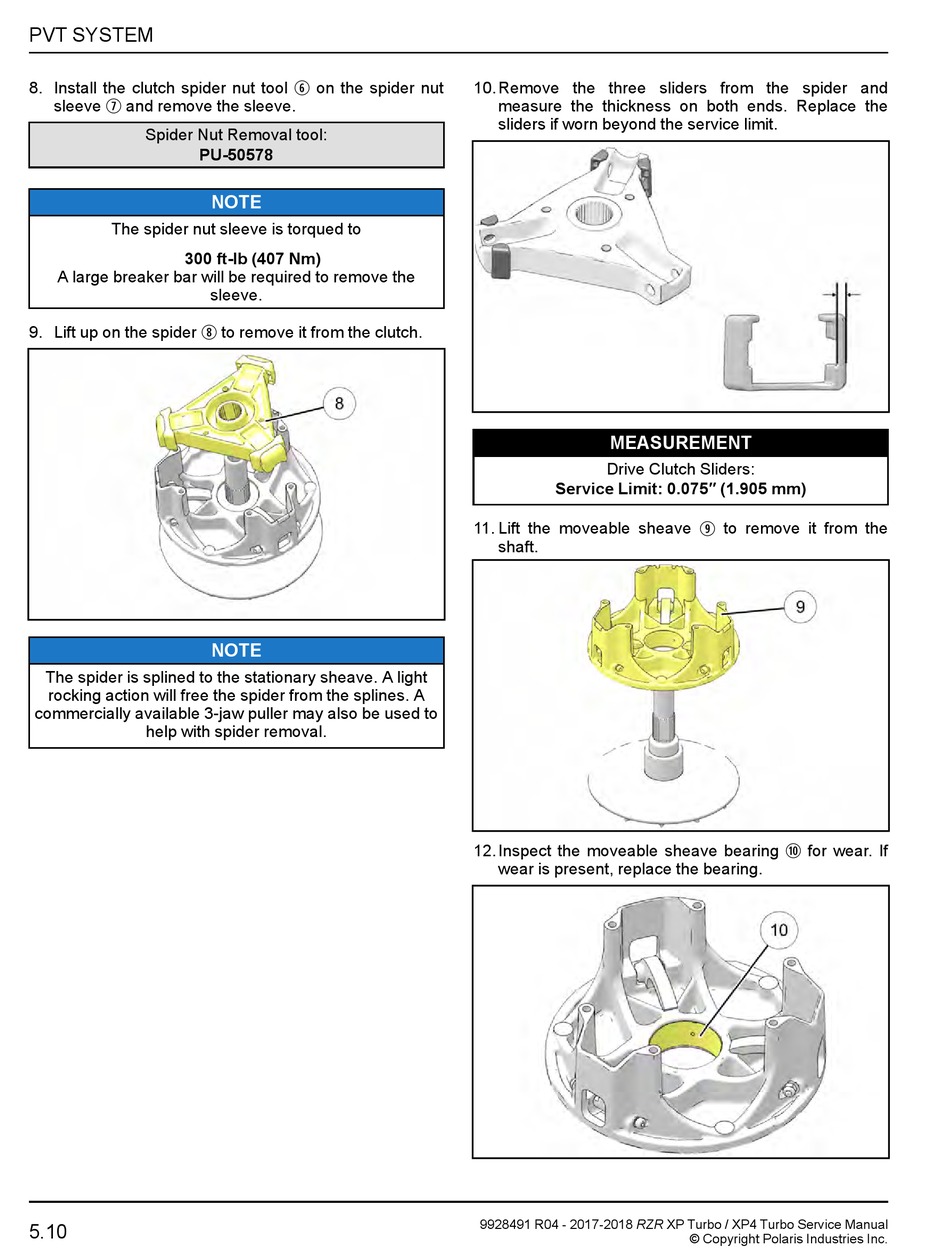

PVT SYSTEM
8. Install the clutch spider nut tool
u
sleeve and remove the sleeve.
Spider Nut Removal tool:
PU-50578
The spider nut sleeve is torqued to
300 ft-lb (407 Nm)
A large breaker bar will be required to remove the
i
9. Lift up on the spider
The spider is splined to the stationary sheave. A light
rocking action will free the spider from the splines. A
commercially available 3-jaw puller may also be used to
help with spider removal.
5.10
y
on the spider nut
NOTE
sleeve.
to remove it from the clutch.
NOTE
10. Remove the three sliders from the spider and
measure the thickness on both ends. Replace the
sliders if worn beyond the service limit.
MEASUREMENT
Drive Clutch Sliders:
Service Limit: 0.075" (1.905 mm)
11. Lift the moveable sheave
shaft.
12. Inspect the moveable sheave bearing
wear is present, replace the bearing.
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
o
to remove it from the
a
for wear. If
