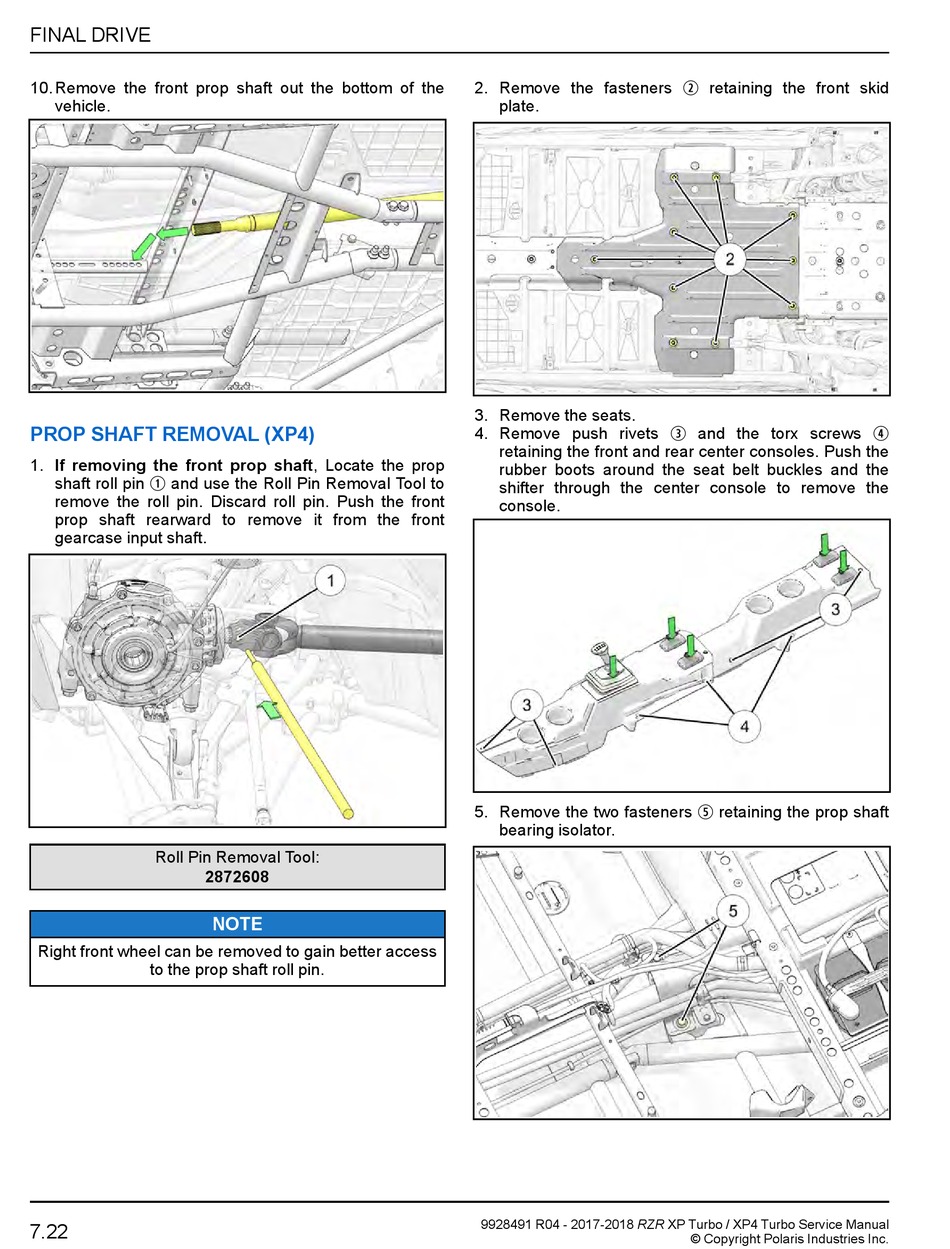

Prop Shaft Removal (Xp4) - Polaris RZR XP Turbo Service Manual

FINAL DRIVE
10. Remove the front prop shaft out the bottom of the
vehicle.

PROP SHAFT REMOVAL (XP4)

1. If removing the front prop shaft, Locate the prop
q
shaft roll pin and use the Roll Pin Removal Tool to
remove the roll pin. Discard roll pin. Push the front
prop shaft rearward to remove it from the front
gearcase input shaft.
Roll Pin Removal Tool:
2872608
Right front wheel can be removed to gain better access
to the prop shaft roll pin.
7.22
NOTE
2. Remove the fasteners
plate.
3. Remove the seats.
4. Remove push rivets
retaining the front and rear center consoles. Push the
rubber boots around the seat belt buckles and the
shifter through the center console to remove the
console.
5. Remove the two fasteners
bearing isolator.
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
w
retaining the front skid
e
and the torx screws
t
retaining the prop shaft
© Copyright Polaris Industries Inc.
r
