10. If replacing the exhaust pipe, remove the heat
shielding from the pipe.

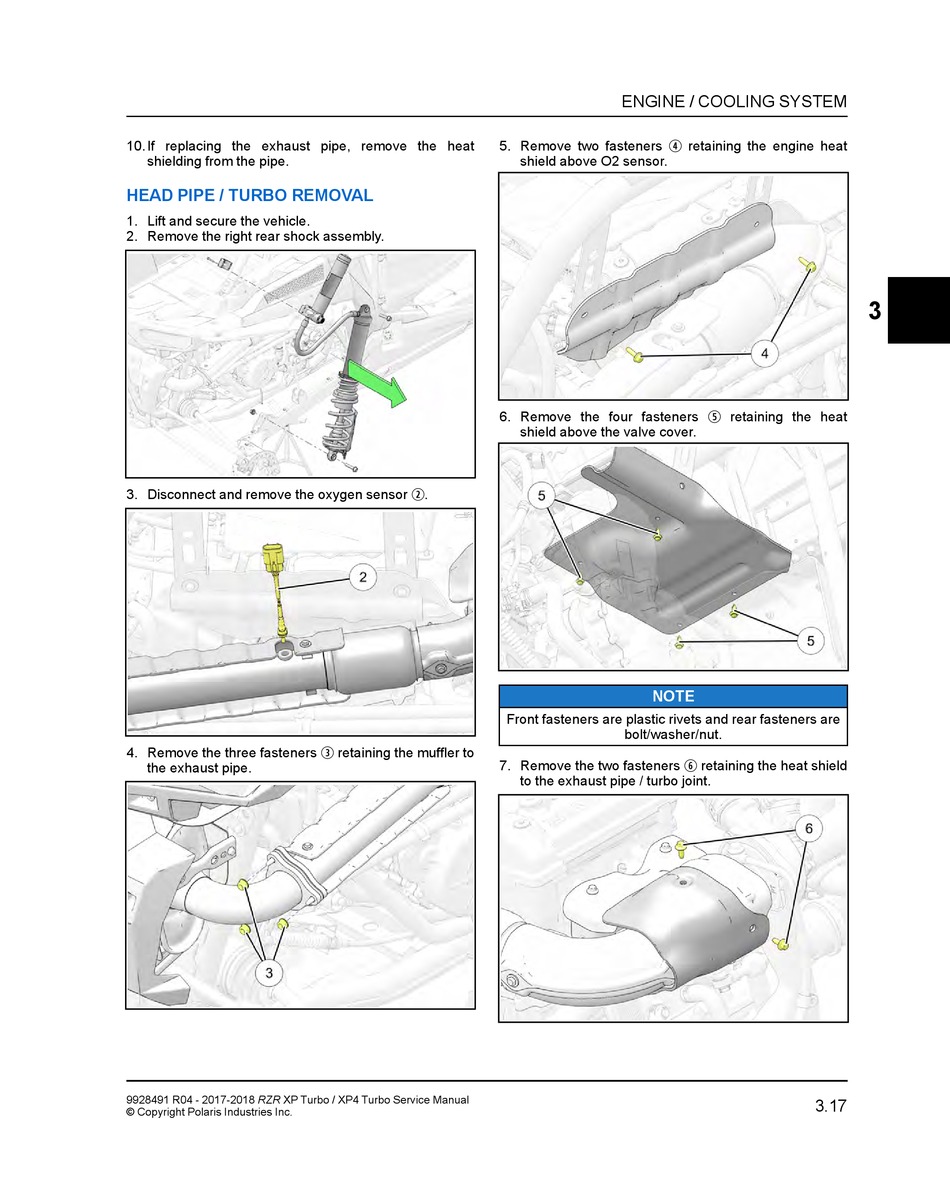

HEAD PIPE / TURBO REMOVAL

1. Lift and secure the vehicle.
2. Remove the right rear shock assembly.
3. Disconnect and remove the oxygen sensor
4. Remove the three fasteners
the exhaust pipe.
9928491 R04 - 2017-2018 RZR XP Turbo / XP4 Turbo Service Manual
© Copyright Polaris Industries Inc.
5. Remove two fasteners
6. Remove the four fasteners
w
.
e
retaining the muffler to
7. Remove the two fasteners
ENGINE / COOLING SYSTEM
r
shield above O2 sensor.
shield above the valve cover.
NOTE
Front fasteners are plastic rivets and rear fasteners are
bolt/washer/nut.
y
to the exhaust pipe / turbo joint.
retaining the engine heat
t
retaining the heat
retaining the heat shield
3.17
