Fanfold Printing

In fanfold printing, a stack of fanfold media is placed outside the back of the
printer and fed into the printer though a gap in the back of the side cover. The
media is fed into the printer mechanism using the same method as for straight-
through printing.
To load fanfold media
1. Disengage the printhead by rotating the head lift lever clockwise to the UP
3-12
8/9
4100-18b
position.
Helvitica condensed 9 pt italic
C o d e 3 9

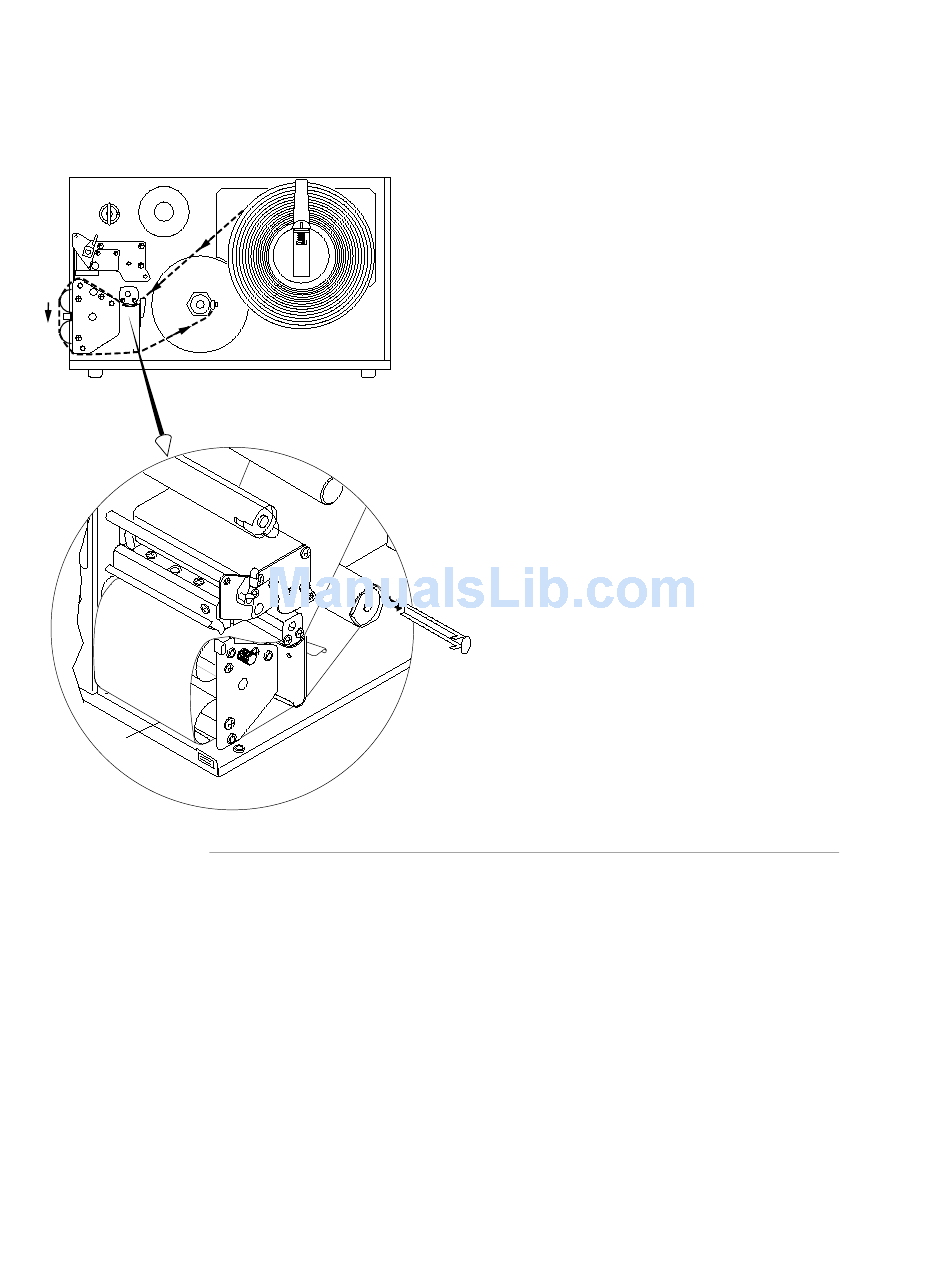

7. Pull the leading edge of the
media down over the rewind
adapter and beneath the bottom
assist roller.
8. Remove the clasp from the media
rewinder hub.
9. Wind a few inches of media
counterclockwise onto the media
rewinder hub, and then secure
the media to the rewinder with
the clasp.
10. Rotate the media guide up and
slide it to the edge of the media.
11. Engage the printhead by rotating
the head lift lever
counterclockwise to the DOWN
position and close the printer
covers.
12. Press [FEED] to advance several
inches of media through the
printer and onto the media
rewinder hub.
