Loading Media Into the Printer for Self-Strip Printing
7
1 8 p t
8/9
4100-17b
Operating the Printer
2. Slide the retainer to the outer end
of the supply mount and flip it
down.
3. Place the label roll on the supply
mount.
4. Flip the retainer to the upright
position and slide the retainer
firmly back against the roll of
media.
5. Rotate the media guide down.

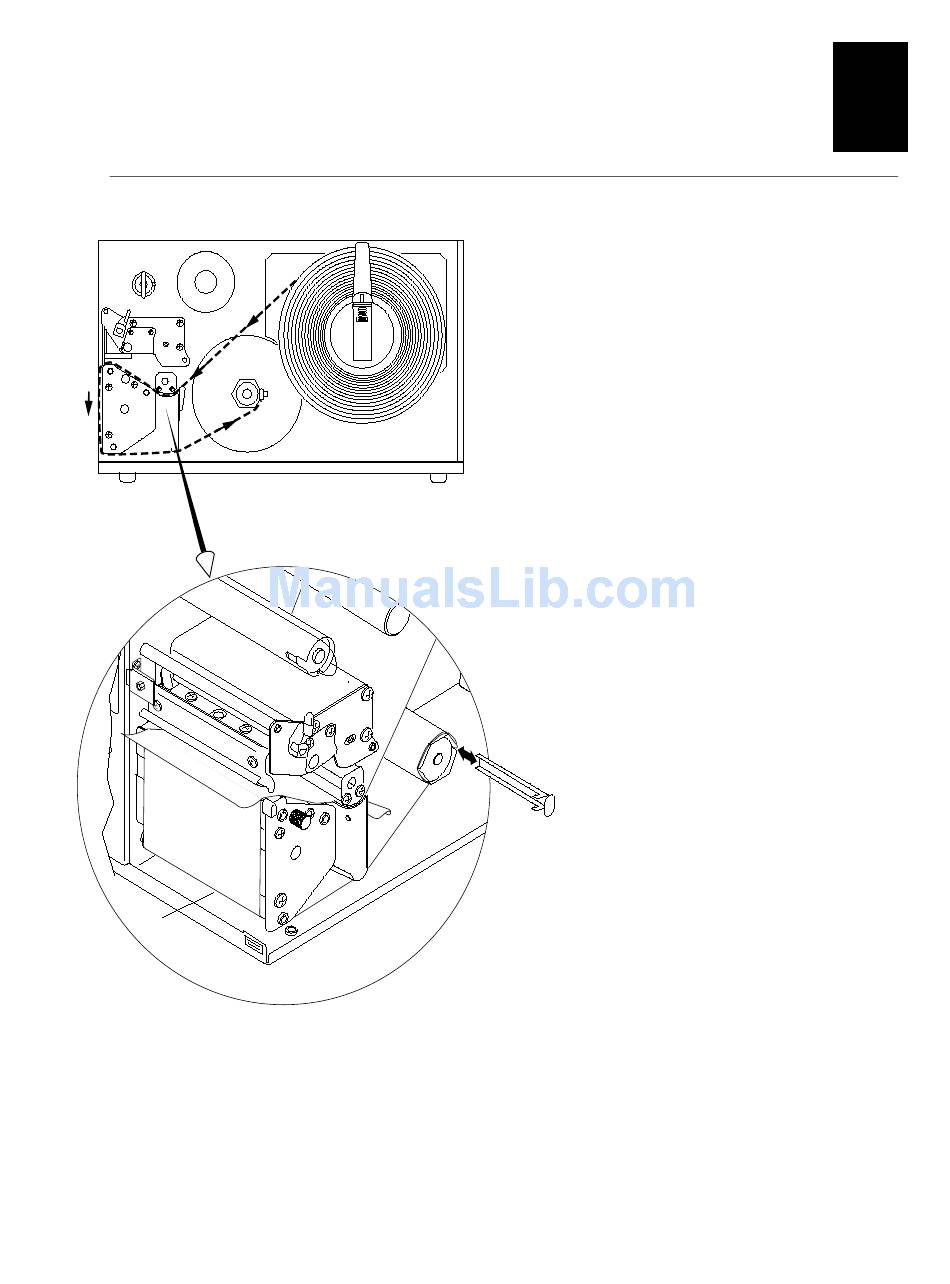

6. Insert the label stock through the
printer mechanism as shown in
the illustration. Make sure the
front edge of the media passes
through the label gap sensor
(illustrated on page 3-7) and over
the top of the drive roller.
7. Pull the leading edge of the media
down over the tear-off plate and
beneath the bottom assist roller.
8. Remove the clasp from the media
rewinder hub.
9. Wind a few inches of media
counterclockwise onto the media
rewinder hub, and then secure the
media to the rewinder with the
clasp.
10. Rotate the media guide up and
slide it to the edge of the media.
11. Engage the printhead by rotating
the head lift lever
counterclockwise to the down
position and close the printer
covers.
12. Set Switch 8 on the top bank of
DIP switches to position 1 or on.
