Intermec EasyCoder 4100 User Manual page 103

Helvitica condensed 9 pt italic
C o d e 3 9

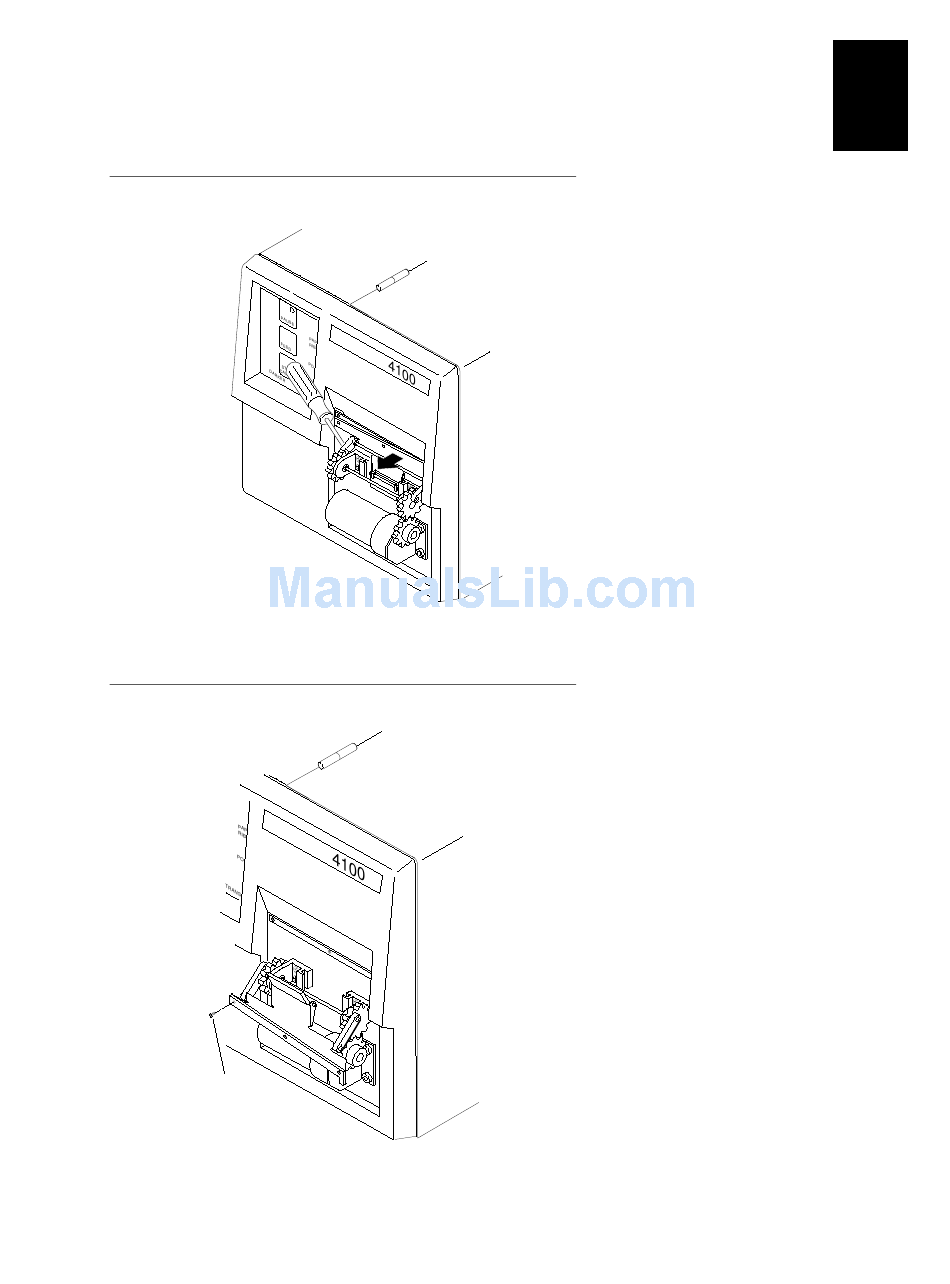

Step 4
Step 5
I n t e
r m e
A L c
itt o
n C
o m
p a
n y
Blade Screws
(six places)
1 8 p t
I n t e
r m e
c
A Li
tto
n C
om
pa ny
4100-C7a
4100-C7b
Routine Maintenance
4. Rotate the gears so the moving
blade is at its highest position.
Pull the blade mount outward by
pulling on the plastic link arms
that connect to the gears, or use a
screwdriver to pry the arms back.
5. Remove the six Phillips screws
that secure the blades to the blade
mount and remove the blades.
6. Inspect both blades for dust or
adhesive buildup. Apply some
WD-40 to the blade surfaces using
a small cloth, if necessary.
7. Clean the area where the blades
were mounted, if necessary.
4
4-15
