Self-Strip Printing

In self-strip printing, the printer presents each label after it is printed with the
backing removed so it may be applied immediately. The backing is collected
on the rewinder hub after passing over the bottom assist roller. The rewinder
hub can hold the backing for an entire roll of media.
Follow the procedures below to prepare the printer for self-strip printing.
Tools required: Phillips screwdriver.
Note: You must have the Present Sensor option installed to print in Self-Strip mode.
The Present Sensor detects when a label has been removed and automatically advances
the next one through the label dispense opening.

Repositioning the Tear-Off Plate Before Printing

Loading the Media

With the tear-off plate reinstalled, you are ready to load the media for self-strip
printing.
The first six steps of this procedure are shown in the illustration for straight-
through printing earlier in this section. Steps 7 through 9 are shown in the
illustration that accompanies this procedure.
1. Disengage the printhead by rotating the head lift lever clockwise to the UP
3-8
position.
Helvitica condensed 9 pt italic
C o d e 3 9

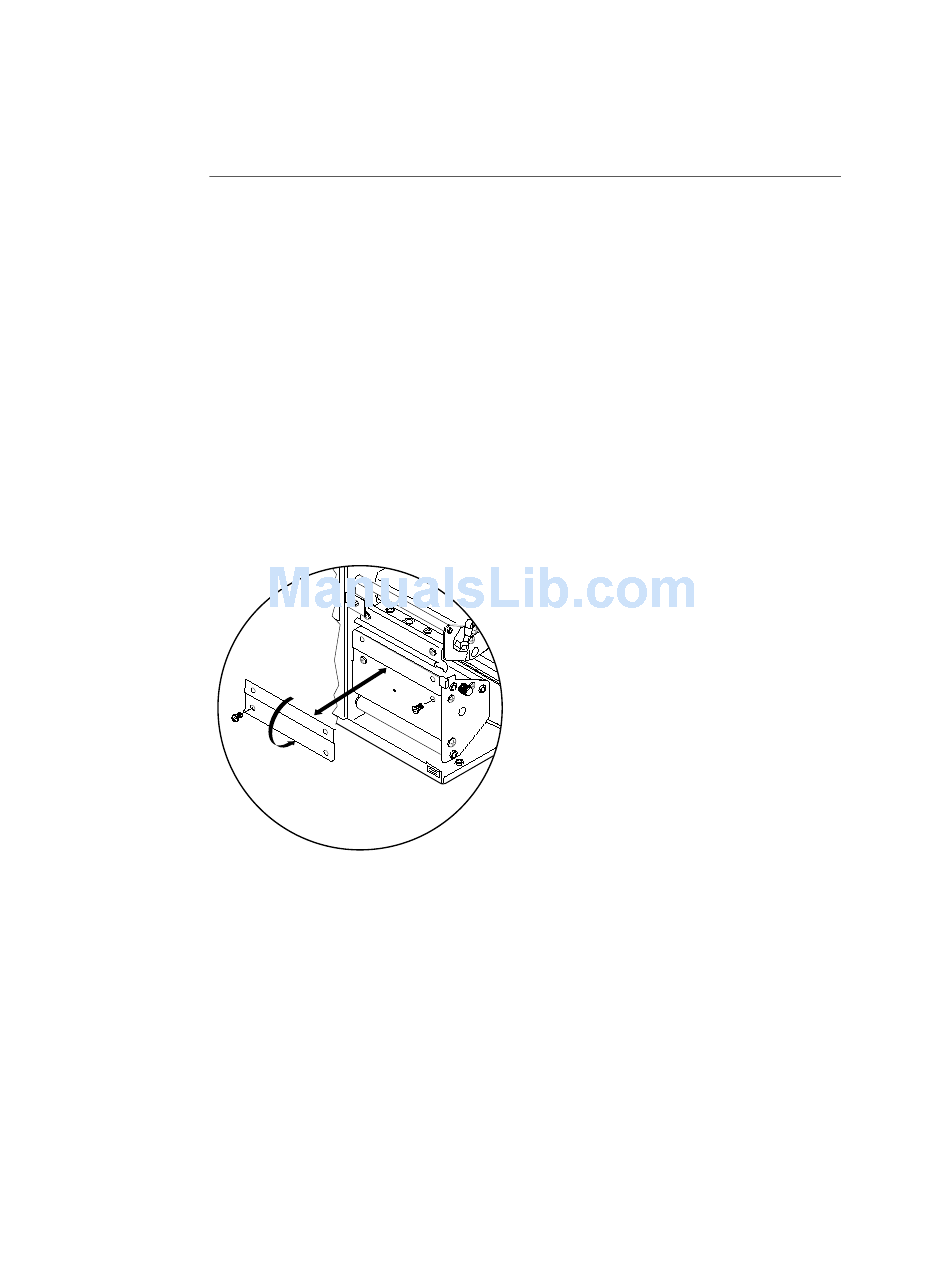

1. Remove the tear-off plate by
unfastening the two screws that
secure the plate to the printer.
2. Flip the tear-off plate upside
down so that its serrated edge is
on the bottom with the teeth
facing the printer. Reattach the
tear-off plate to the printer using
the two screws.
4100-17a
1 8 p t
