4100 Bar Code Label Printer User's Manual
To adjust the printhead alignment for a coarse adjustment
1. Loosen the screws that secure the bearing block mounting bracket.
2. Place the alignment plate over the bearing block mounting bracket and
CAUTION
Do not turn the printhead adjust screws more than two turns in either
direction. Damage to the printhead assembly could result if the adjustment
CAUTION
screws are turned too far.
CONSEIL
Ne tournez pas les vis d'ajustement de la tête d'impression de plus de deux
tours dans chaque direction. Vous risquez d'endommager l'assemblage de la
tête d'impression si les vis d'ajustement sont serrées à fond.
4-12
insert the upper and lower drive roller bearings into the corresponding
holes in the alignment plate. The narrow tab on the top of the alignment
plate should be centered in the printhead alignment slot. If the tab does not
center, use the hex key to turn the left printhead adjust screw until the tab is
centered.

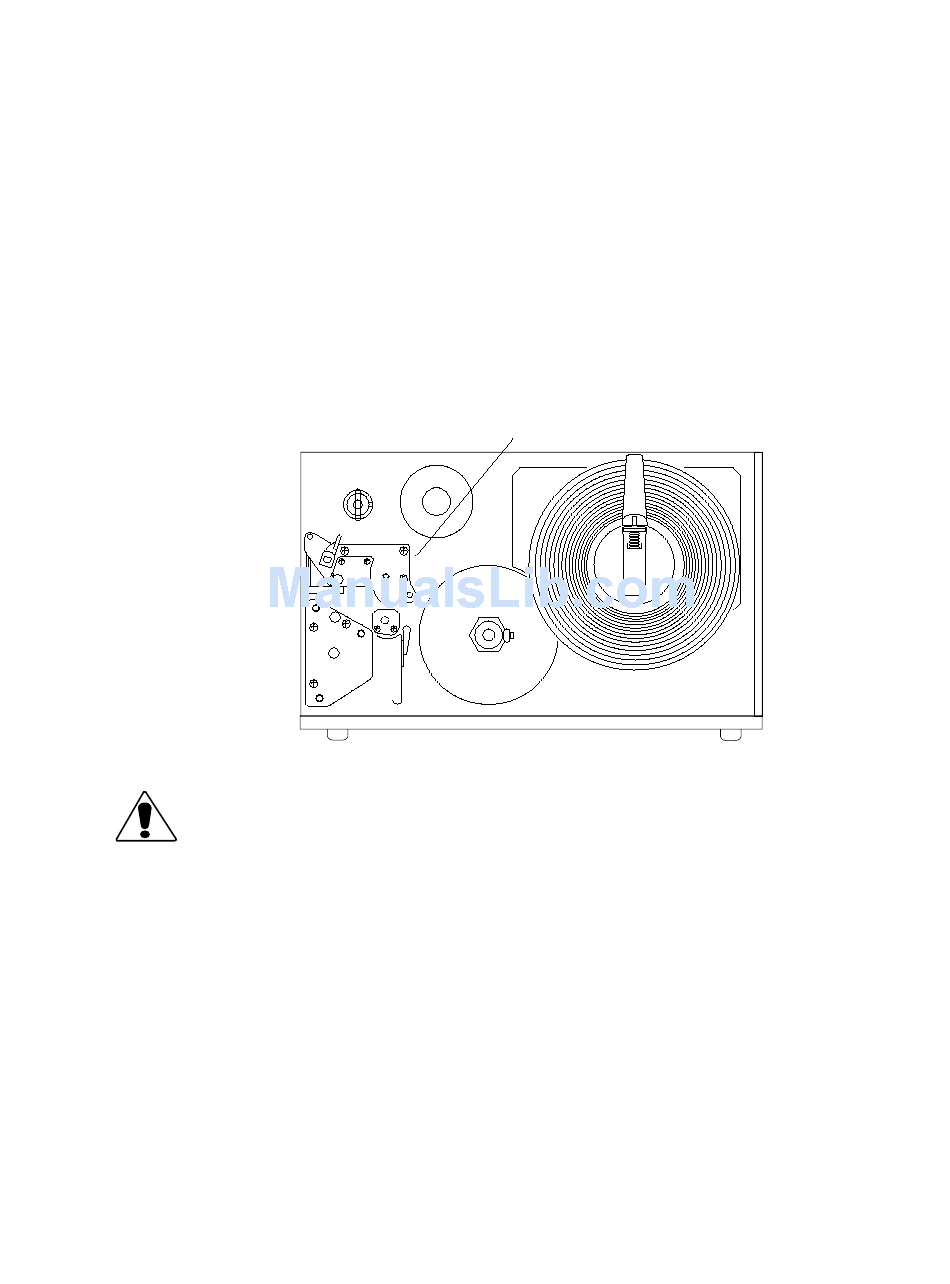

Printhead Adjustment Screws (2)
