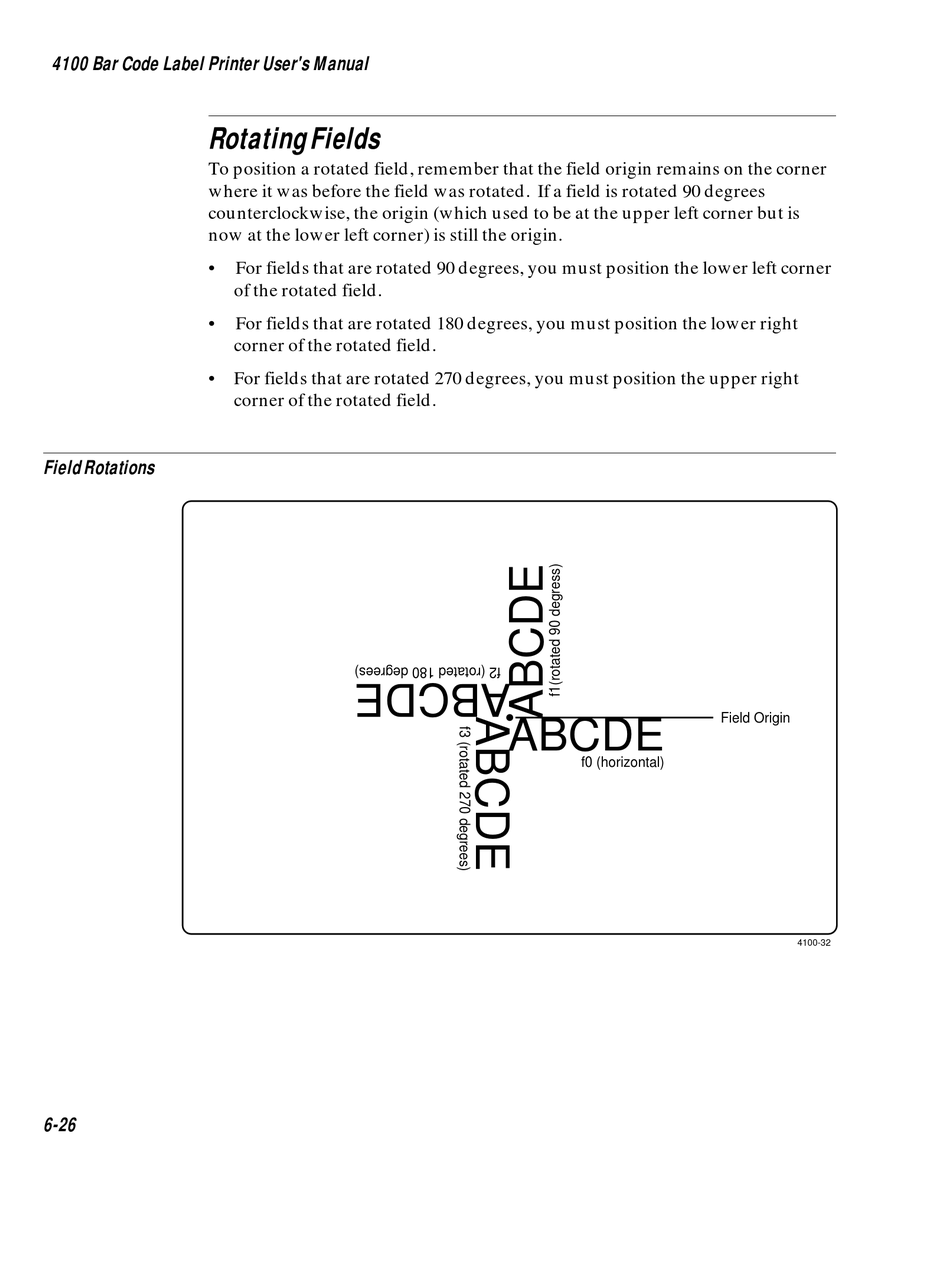

Rotating Fields

To position a rotated field, remember that the field origin remains on the corner
where it was before the field was rotated. If a field is rotated 90 degrees
counterclockwise, the origin (which used to be at the upper left corner but is
now at the lower left corner) is still the origin.
• For fields that are rotated 90 degrees, you must position the lower left corner
• For fields that are rotated 180 degrees, you must position the lower right
• For fields that are rotated 270 degrees, you must position the upper right
Field Rotations
6-26
of the rotated field.
corner of the rotated field.
corner of the rotated field.
degrees) 180
ABCDE
Helvitica condensed 9 pt italic
C o d e 3 9
(rotated f2
ABCDE
f0 (horizontal)
1 8 p t
Field Origin
4100-32
