Cleaning the Printhead
3

Cleaning the Cutter Blades

The cutter requires a minimal amount of maintenance.
Tools Required: WD-40® or a similar petroleum-based lubricant, silicone-
based lubricant, clean cloth or cotton swab.
CAUTION
Do not use any petroleum-based lubricants on the plastic parts of the cutter
mechanism as they can damage the plastic. You must use silicone-based
CAUTION
lubricants on the plastic areas of the cutter.
CONSEIL
Ne pas utiliser de lubrifiant à base d'essence sur les parties en plastique du
mécanisme du massicot, sous peine de risquer de les endommager. Utiliser
seulement des lubrifiants à base de silicone.
1 8 p t
5
4
4100-21
Routine Maintenance

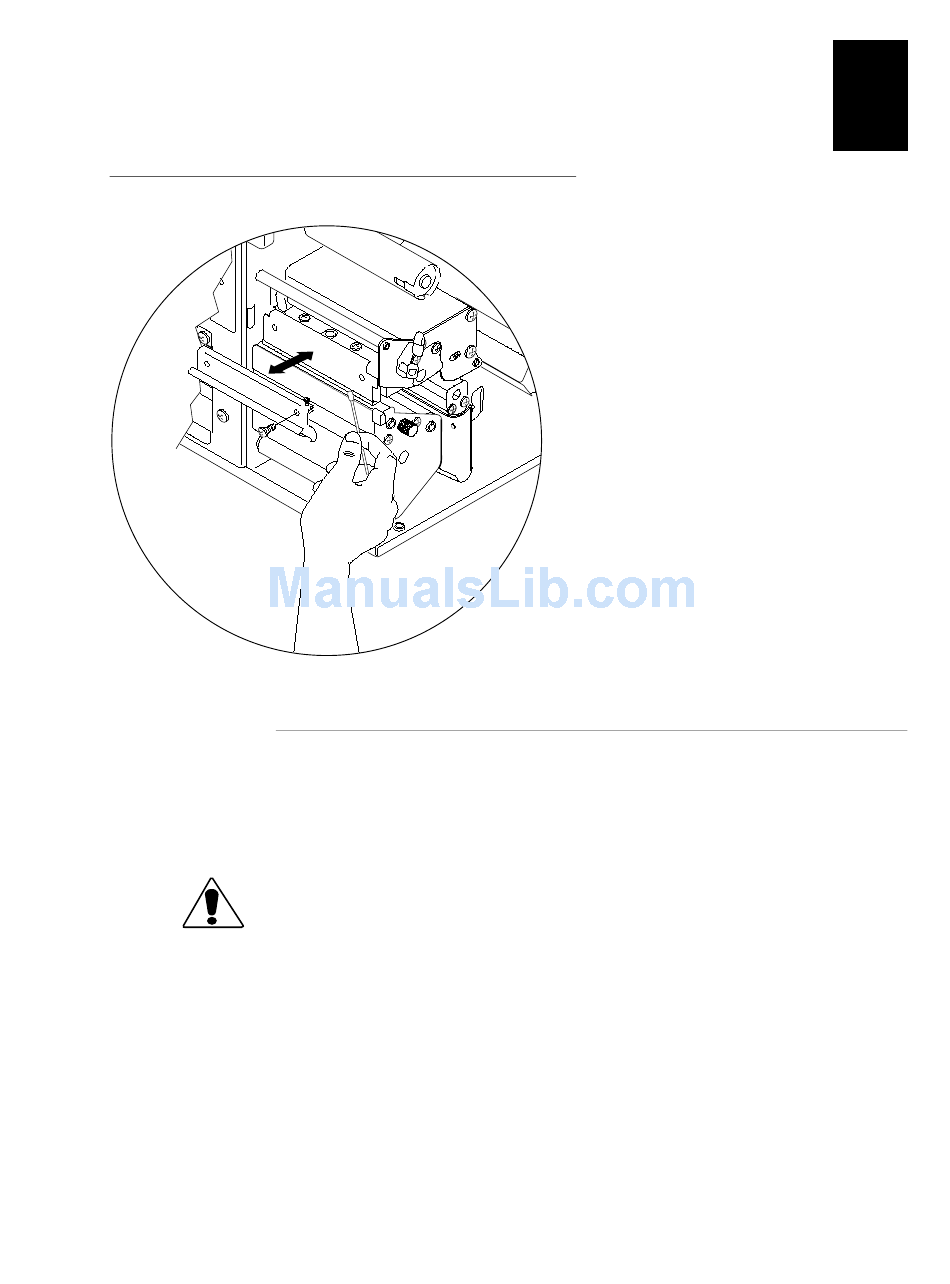

5. Reinstall the printhead support
plate and ribbon shield. Make
sure the tab on the right side of
the ribbon shield fits into the slot
on the printhead mount, and that
the ribbon shield is parallel to the
drive roller. Also make sure the
slotted plastic spacer attached to
the head support adjustment
screw fits into the notch in the
printhead mount.
6. Rotate the printhead lift lever
counterclockwise to the down
position until the lever is locked
securely in place.
Note: For details about the printhead
support plate, refer to the illustration in
the next section.
