Lines and Boxes

You can use the command set to define fields that appear as lines or as boxes
Fr Goth
when you print your label. Use the rotation commands to determine whether a
line or box will appear vertically or horizontally on the label. Use the length
and width commands to set the length and thickness of the lines.

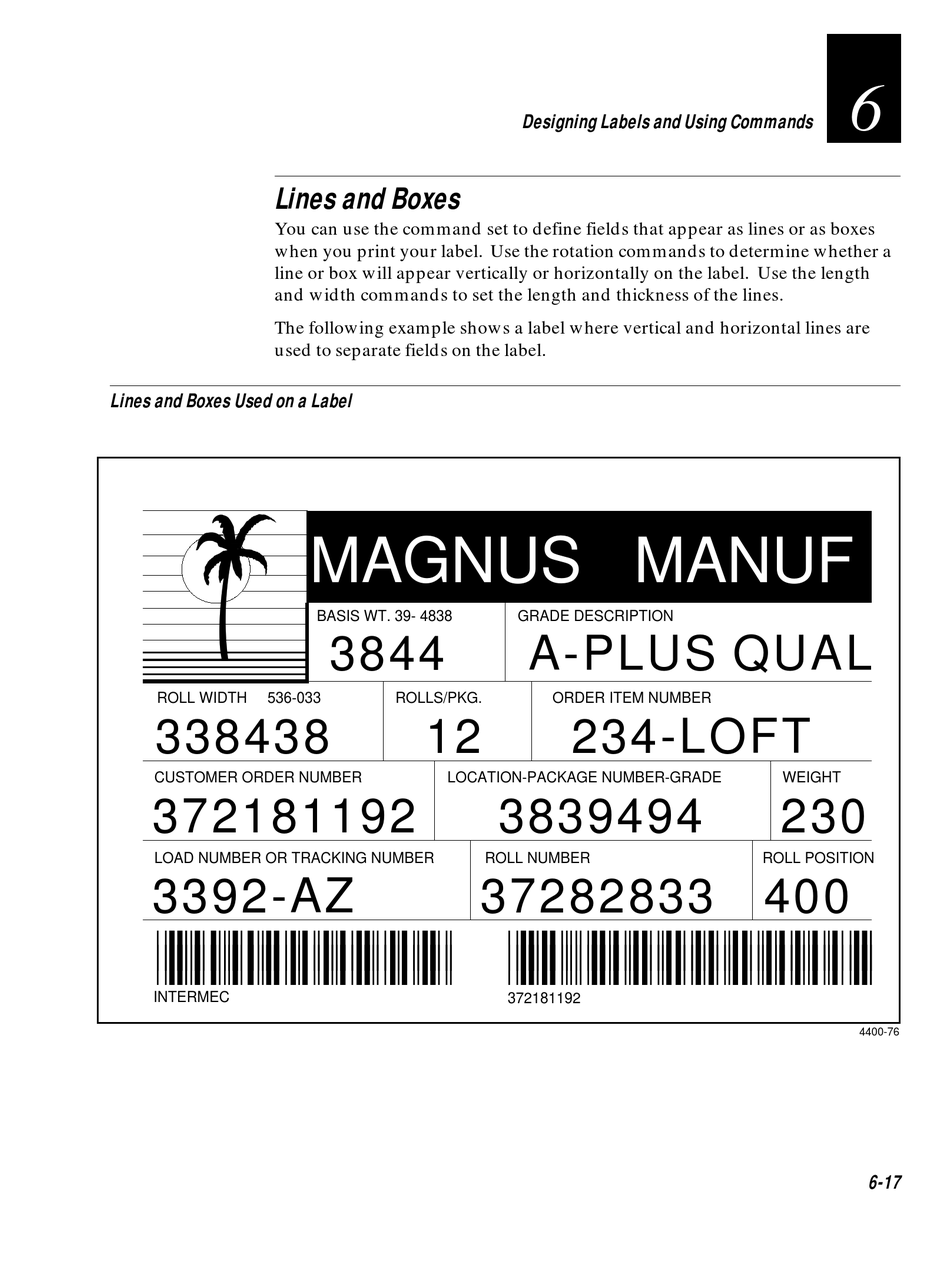

The following example shows a label where vertical and horizontal lines are
used to separate fields on the label.
Lines and Boxes Used on a Label
