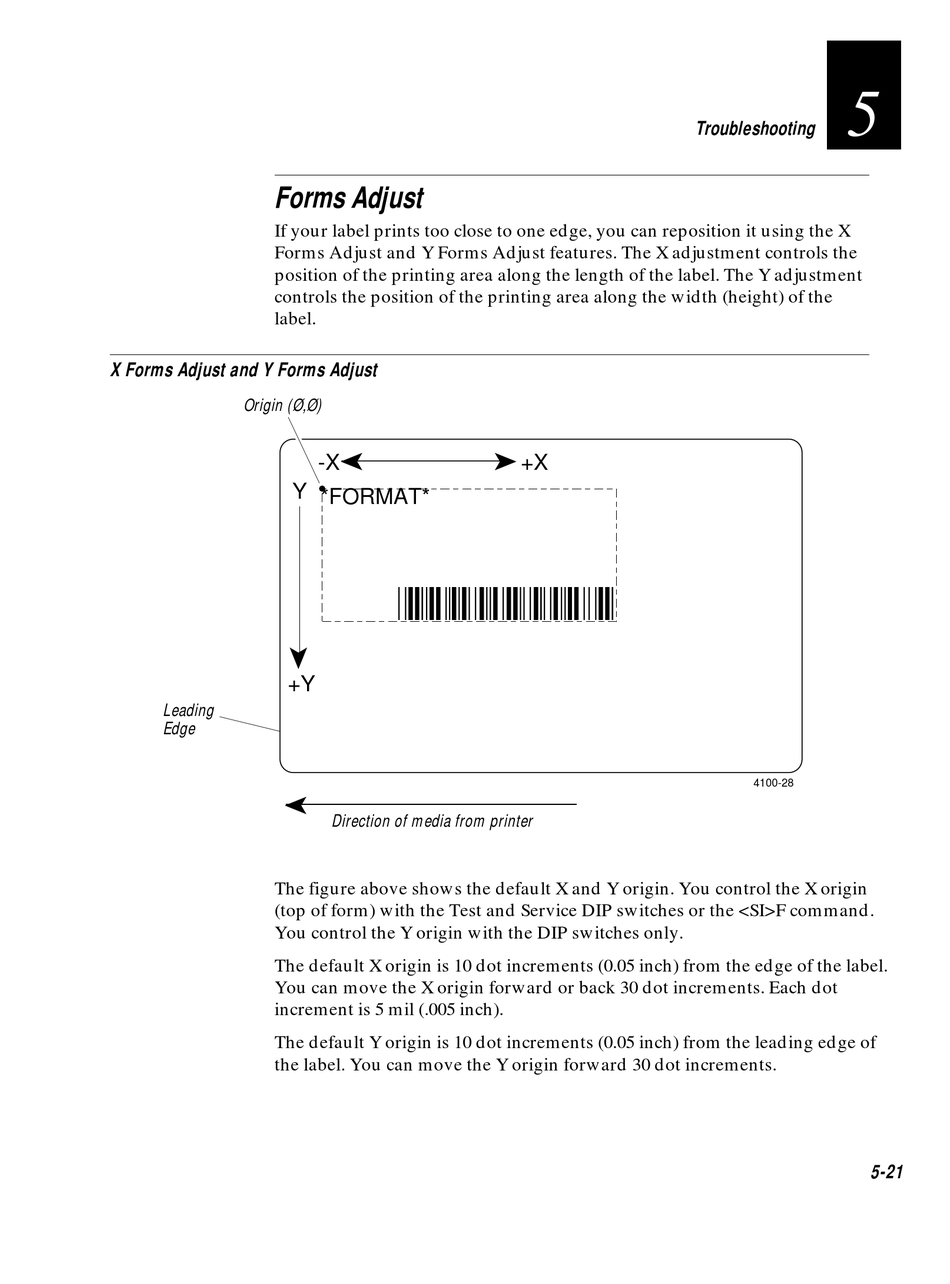

Forms Adjust

If your label prints too close to one edge, you can reposition it using the X
Forms Adjust and Y Forms Adjust features. The X adjustment controls the
position of the printing area along the length of the label. The Y adjustment
controls the position of the printing area along the width (height) of the
label.
X Forms Adjust and Y Forms Adjust
Origin (Ø,Ø)
Leading
Edge
The figure above shows the default X and Y origin. You control the X origin
(top of form) with the Test and Service DIP switches or the <SI>F command.
You control the Y origin with the DIP switches only.
The default X origin is 10 dot increments (0.05 inch) from the edge of the label.
You can move the X origin forward or back 30 dot increments. Each dot
increment is 5 mil (.005 inch).
The default Y origin is 10 dot increments (0.05 inch) from the leading edge of
the label. You can move the Y origin forward 30 dot increments.
