Helvitica condensed 9 pt italic
C o d e
3 9
To use this procedure to install your system, you need a serial cable with an
RS-232C or RS-422/485 interface, a 25-pin D-style subminiature connector on
one end, and the appropriate host connector on the other end. If you are
unsure about which cable to use, see "Connecting the Printer to a Network"
later in this chapter.
To install the printer
1. Plug the 25-pin plug into the serial port on the rear panel of the 4100 printer.
2. Plug the other end of the cable into a serial port on the host computer. Your
3. If necessary, change the printer configuration to match the host. See

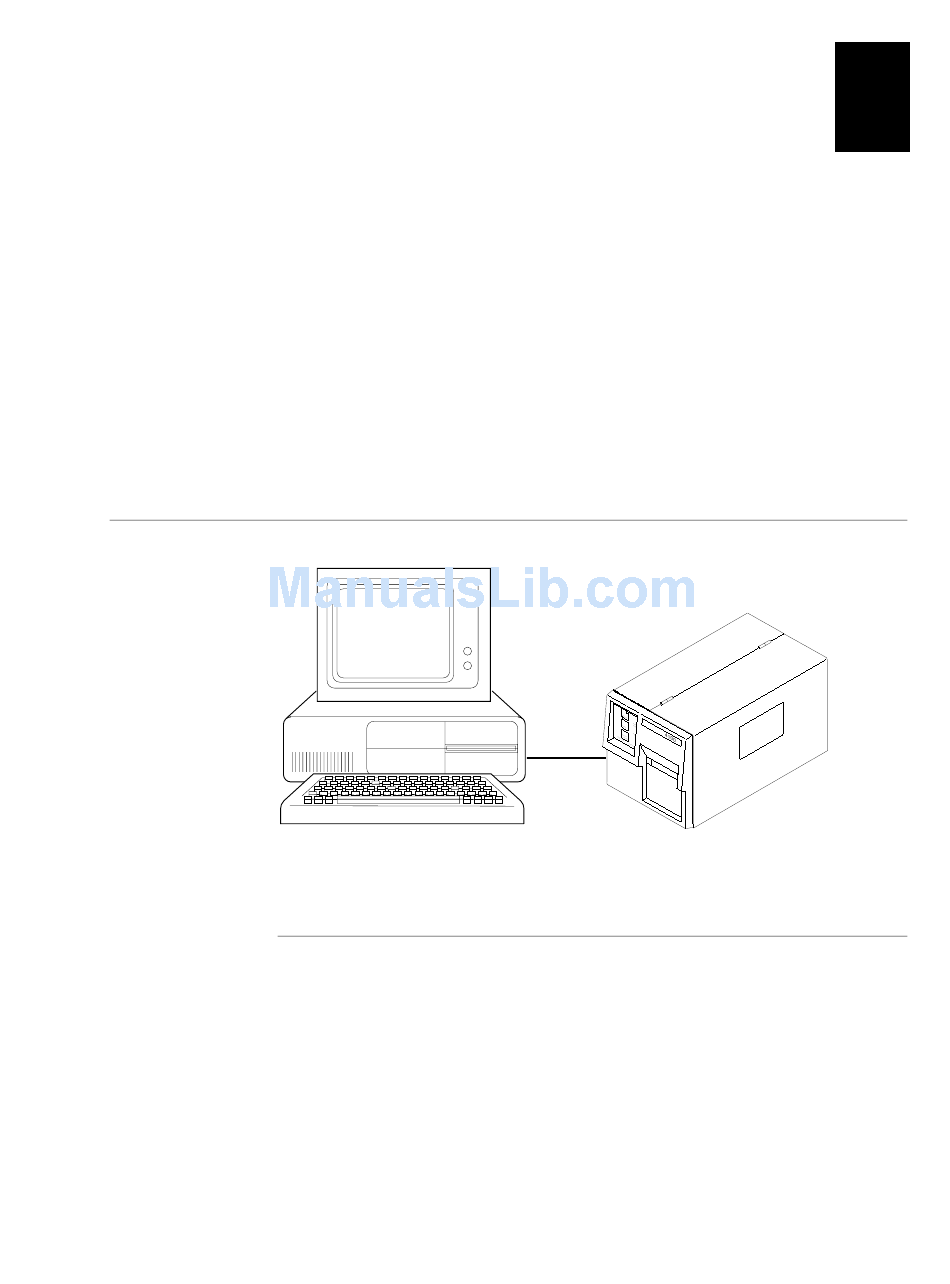

Typical Point-to-Point Installation
About Network Installations
If you are installing your printer in a network environment, you may need to
change the serial port settings to match the requirements of your network.
You can determine the communications requirements for your network by
referring to the controlling device documentation. If the controlling device is
an Intermec product, refer to the following manuals for instructions and
information on the necessary cabling and connections.
1 8
p t
printer is now installed.
"Configuring the Serial Port" later in this chapter.
PC
Installing the Printer
In te
rm ec
A Litto
n Com
pan
y
Printer
4100-06
2
2-5
