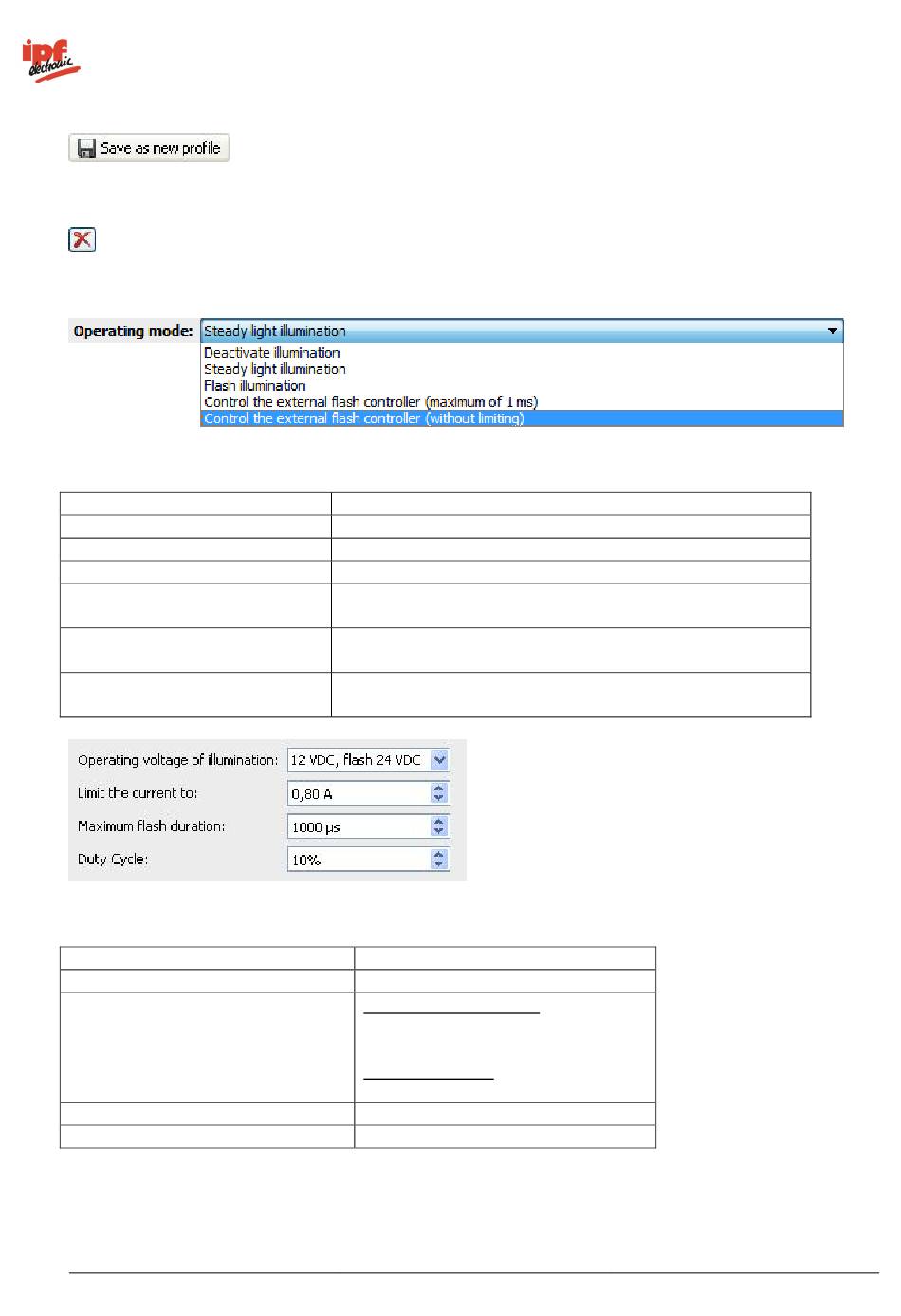

If you have made your own settings, you may save them as a new profile.
Using this function, you can delete a profile that you created.
You have various operating modes available.
Operating Mode
Deactivate illumination
Steady light illumination
Flash illumination
Control the external flash
controller
Control the external flash
controller (max. 1 ms)
Control the external flash
controller (without limit)
Here, you can define settings in the current operating mode.
Function
Operating voltage of illumination:
Limit the current to:
Maximum flash duration:
Duty Cycle:
v2.8.2-K11
Description
No settings possible / illumination port deactivated
Settings possible (limit operating voltage/current)
All settings possible
No settings possible, flash sync active
No settings possible, flash sync active (max. 1 ms)
No settings possible, flash sync synchronous to exposure
active
Setting Possibilities
12VDC/24VDC
Steady light illumination
0.1A...0.8A (increments of 0.1A)
Flash illumination
0.1A...4.0A (increments of 0.1A)
1µs...1000µs
1%...10%
