6.10 LED panel (devices with integrated Industrial Ethernet)

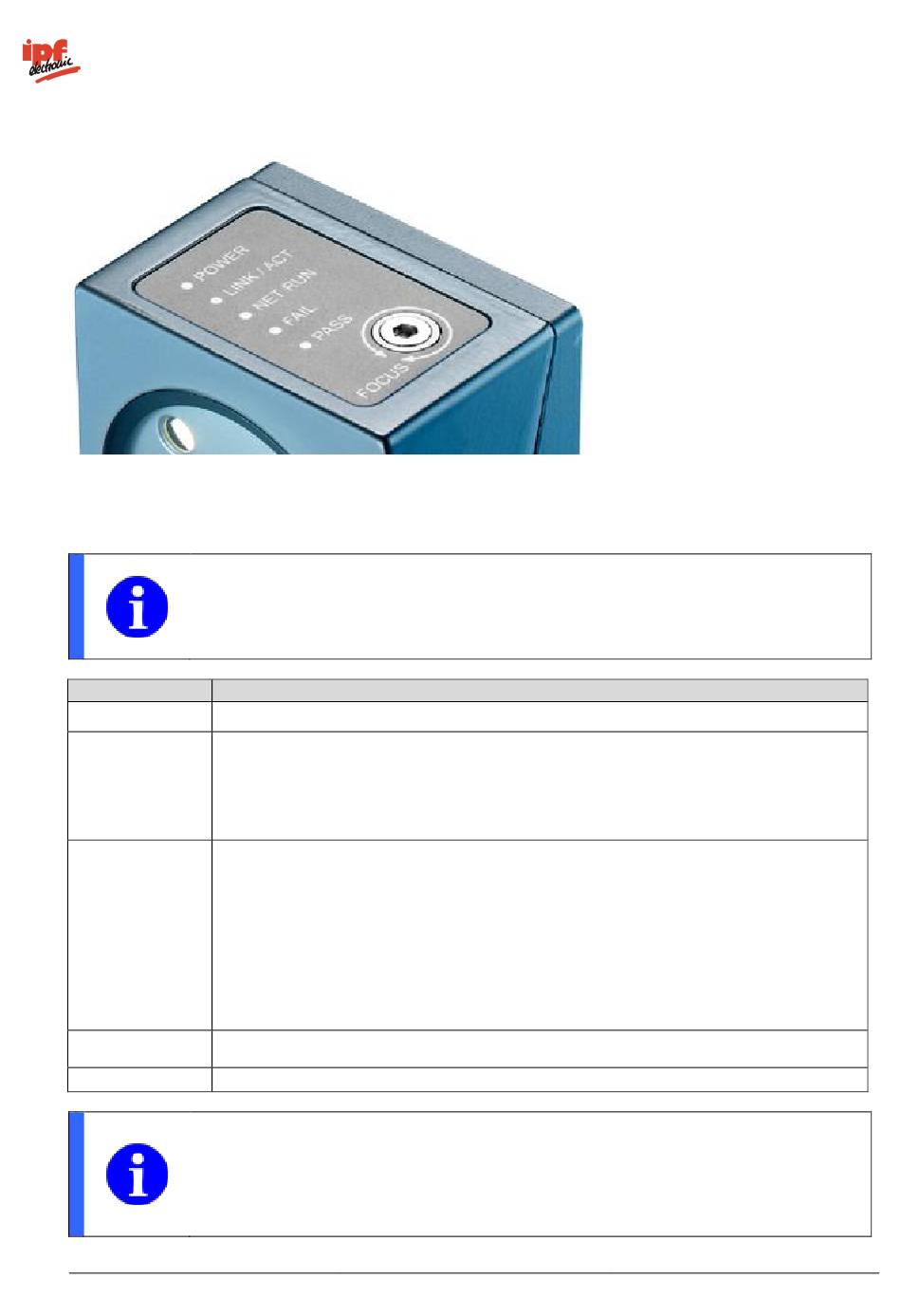

A screw and 5 LEDs are located on the Vision Sensor for displaying the various states.
Image focus setting screw: Used to set the image focus.
NOTE
For devices with interchangeable lenses, the image focus is set on the installed lens.
LED Meaning
Indicates that the Vision Sensor is being supplied with electricity.
POWER
Indicates that the Vision Sensor is connected to a network.
LINK / ACT
Indicates that data is being transferred via Industrial Ethernet.
NET RUN
Lights up when a feature check has been failed.
FAIL
Lights up when a feature check has been passed.
PASS
NOTE
POWER blinking: Vision Sensor starts
Pass/Fail flash simultaneously: Vision Sensor is in Recovery mode
v2.8.2-K11

on: network connection established

blinking: data traffic active

off: Industrial Ethernet will not be used

long blinking: waiting for the first cyclical connection

on: cyclical connection active

short blinking: cyclical connection ended (waiting for next connection)

3 seconds of regular blinking: device identification in the system
