Control buttons
You can move the CIELab coordinate system freely with the mouse and zoom with mouse wheel. There are
also buttons to stop the animation and tilt the CIELab colour coordinate system.


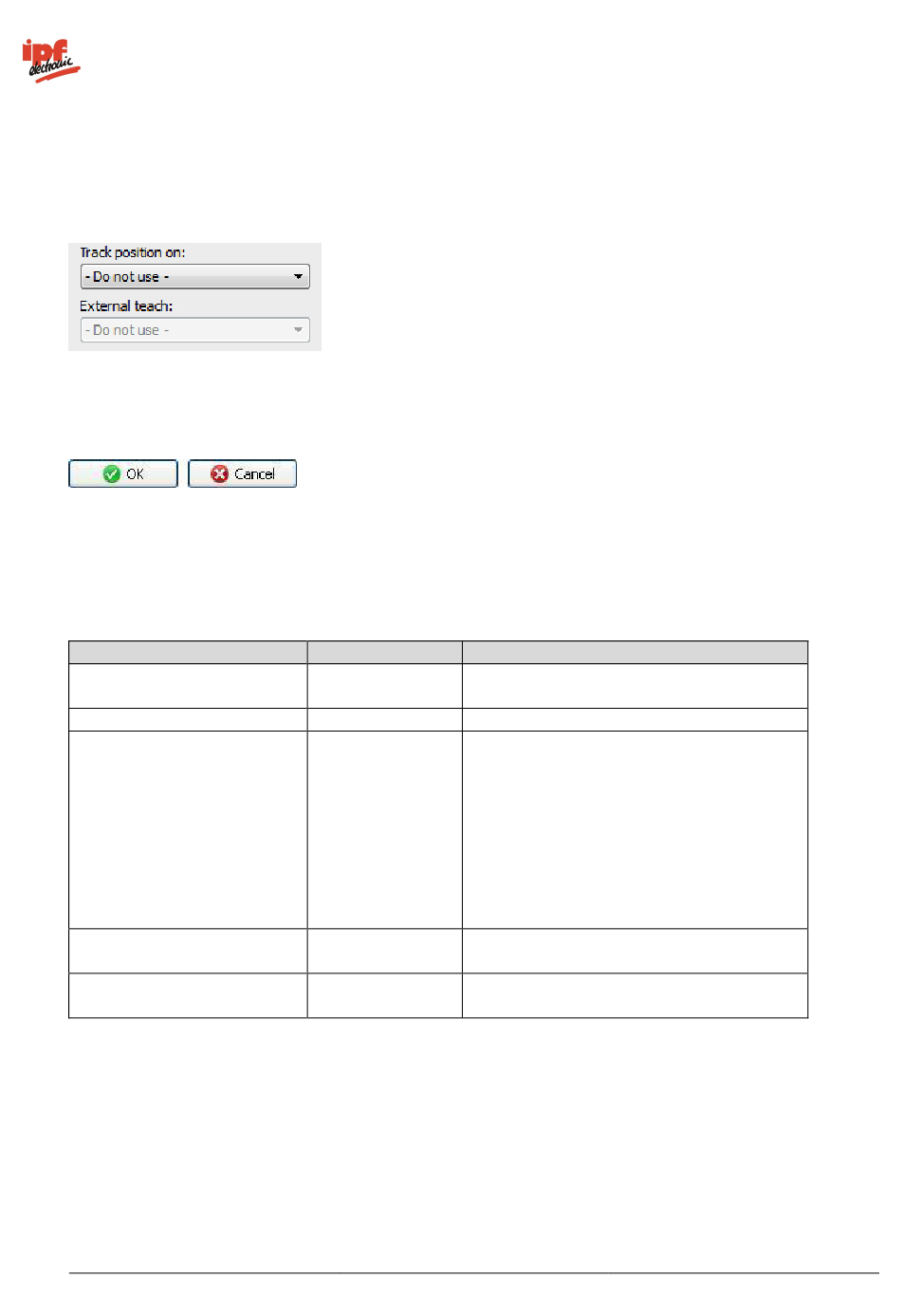

If the feature check is to be corrected by the result of the part location, you can choose this option
here.

Confirm your settings and return to the feature list with OK. Return to the feature list without making
any changes with Cancel.
This feature check has the following output values for the datagram at the process interface:
Output value
Result
Reference area brightness
Field of view, colour, area
Dominant colour
Pass/Fail
v2.8.2-K11
Data type Description
Result of the feature check: "P" (Pass); "F"
(Fail)
Integer
Integer list Three values are listed for each combination
of a field of view and a colour (field of view,
colour, area).
Field of view: Number, starting with 1 (not
as letters)
Colour: Number, starting with 1
Area: Proportion (in percent) of the field of
view occupied by the colour
Integer list Number of the dominant colour for each field
of view, or 0 if no colour is found
Text Results for the individual fields of view as
"P" (Pass) or "F" (Fail)
