12.1.2 Part location on edges

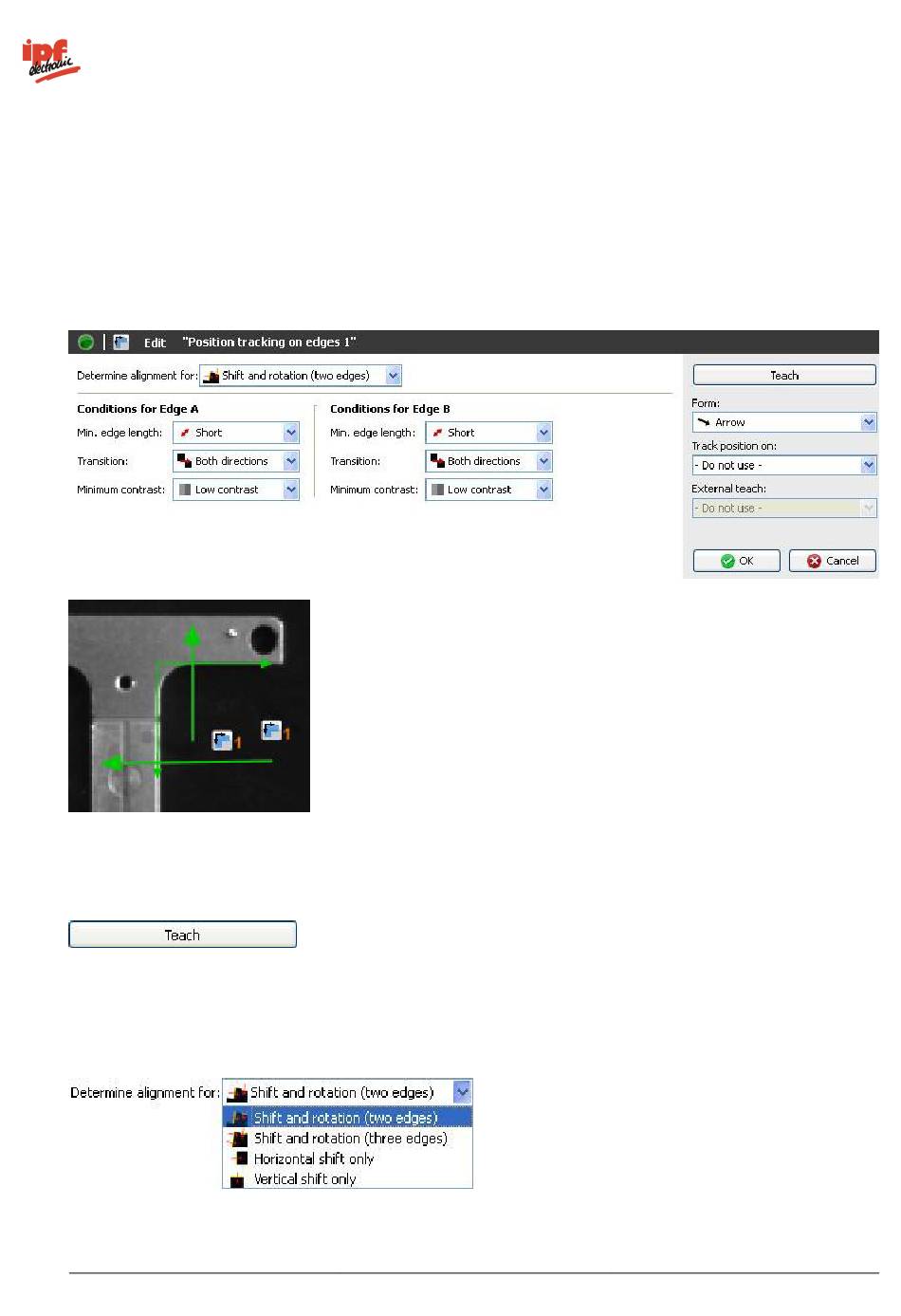

This feature check localizes an object using edges. The detected position is used as a reference for the
subsequent feature checks. In this way, tilted or displaced objects can also be examined. All fields of view
and search beams for which part location is activated are corrected according to the current position of the
test object.
This feature check does not support external teach. If a teach procedure is still executed, the parameters set
will be maintained.
In this example, two edges of a test object are found, with a horizontal and a vertical search line, and the
reference point for part location is determined at the intersection of the detected edges.

If you wish to change the reference position of the part location, press the Teach button and the new
position will be adopted.
Configuring of the part location as follows:
