9.3.2 Timing digital I/Os

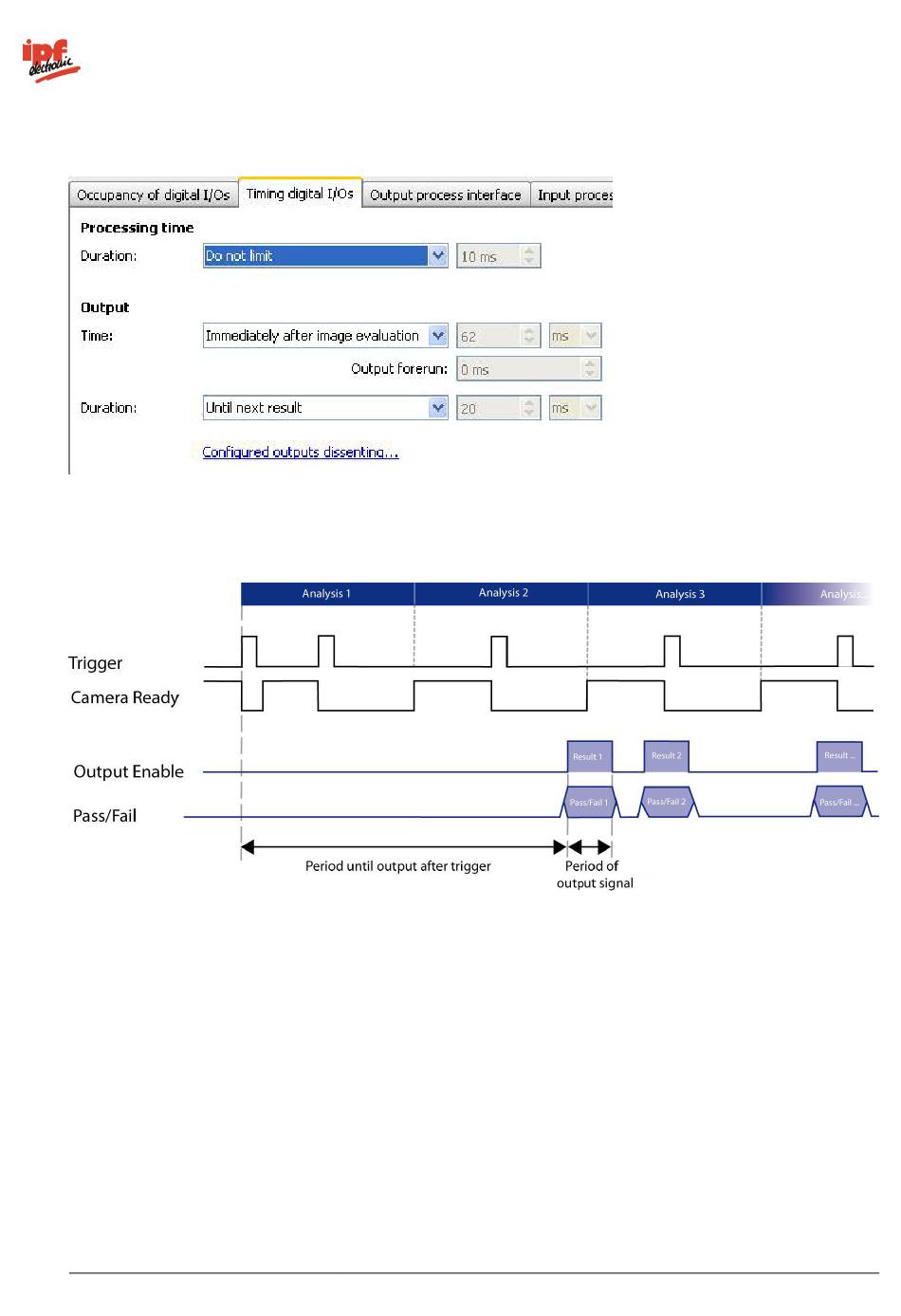

In this dialogue, you can define when the output time is reached and how long the output
is to be. The timing diagram displays the process visually and you can mouse over various positions to bring
up further details.
Following image acquisition, the Camera Ready signal is deactivated. The Camera Ready signal is activated
again at the end of image acquisition and another image acquisition operation is possible immediately.
The Pass/Fail signal then switches at the set output time even if additional analyses have already been
performed. The Result valid signal is active during this time.
A maximum of 64 results can be temporarily saved.
