12.2 Geometry

12.2.1 Distance

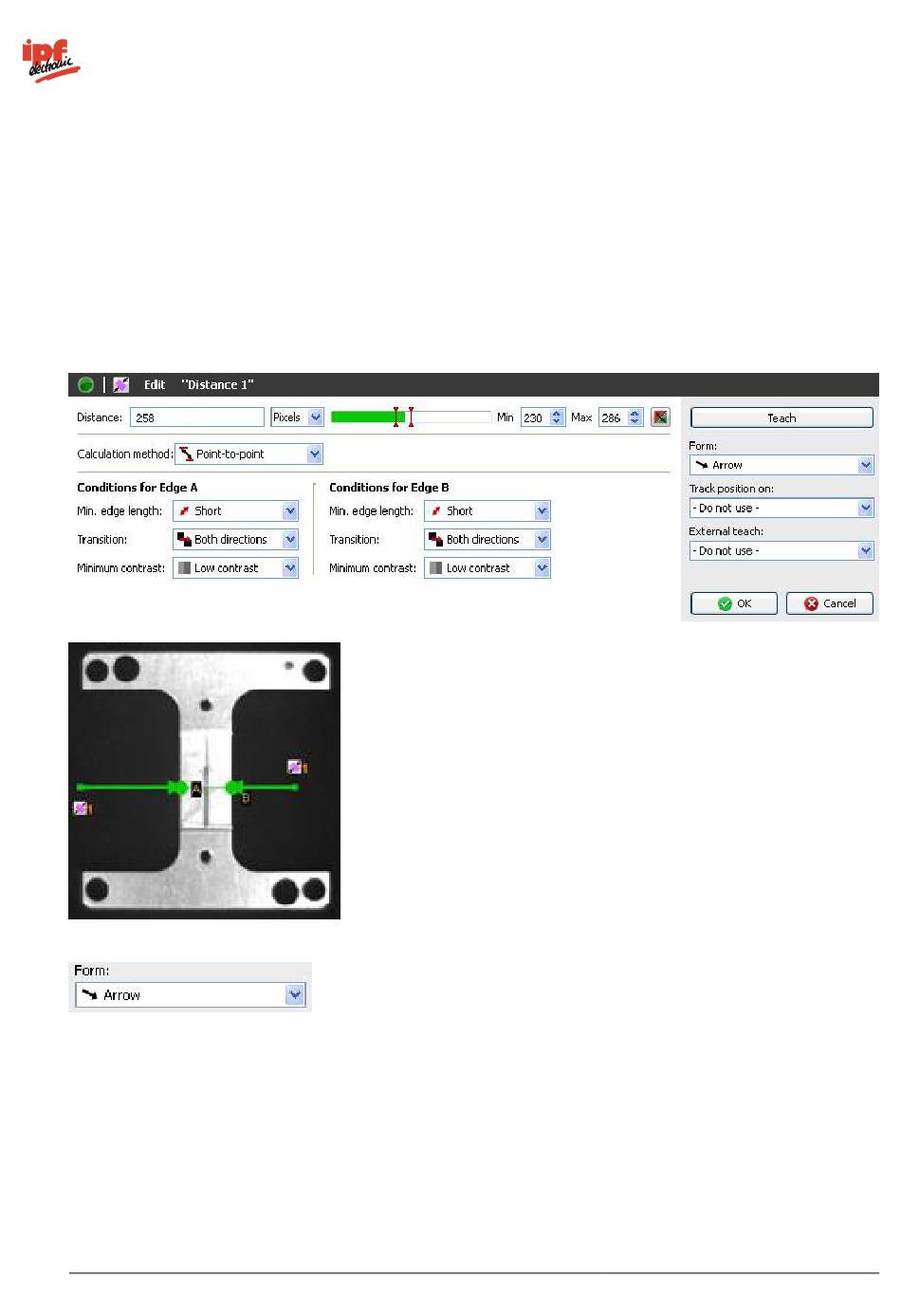

This feature check determines the distance between two points, the right angular distance between two
points and the distance of an edge in relation to a reference edge (a taught-in edge) and compares the
distance found with the associated switching points.
This feature check supports external Teach. The switching points are adjusted as a percentage to the current
measured value.
Select the shape of the field of view. A search line and an arc can be chosen.
Adjust the field of view by holding the left mouse button depressed.
v2.8.2-K11
136/332
