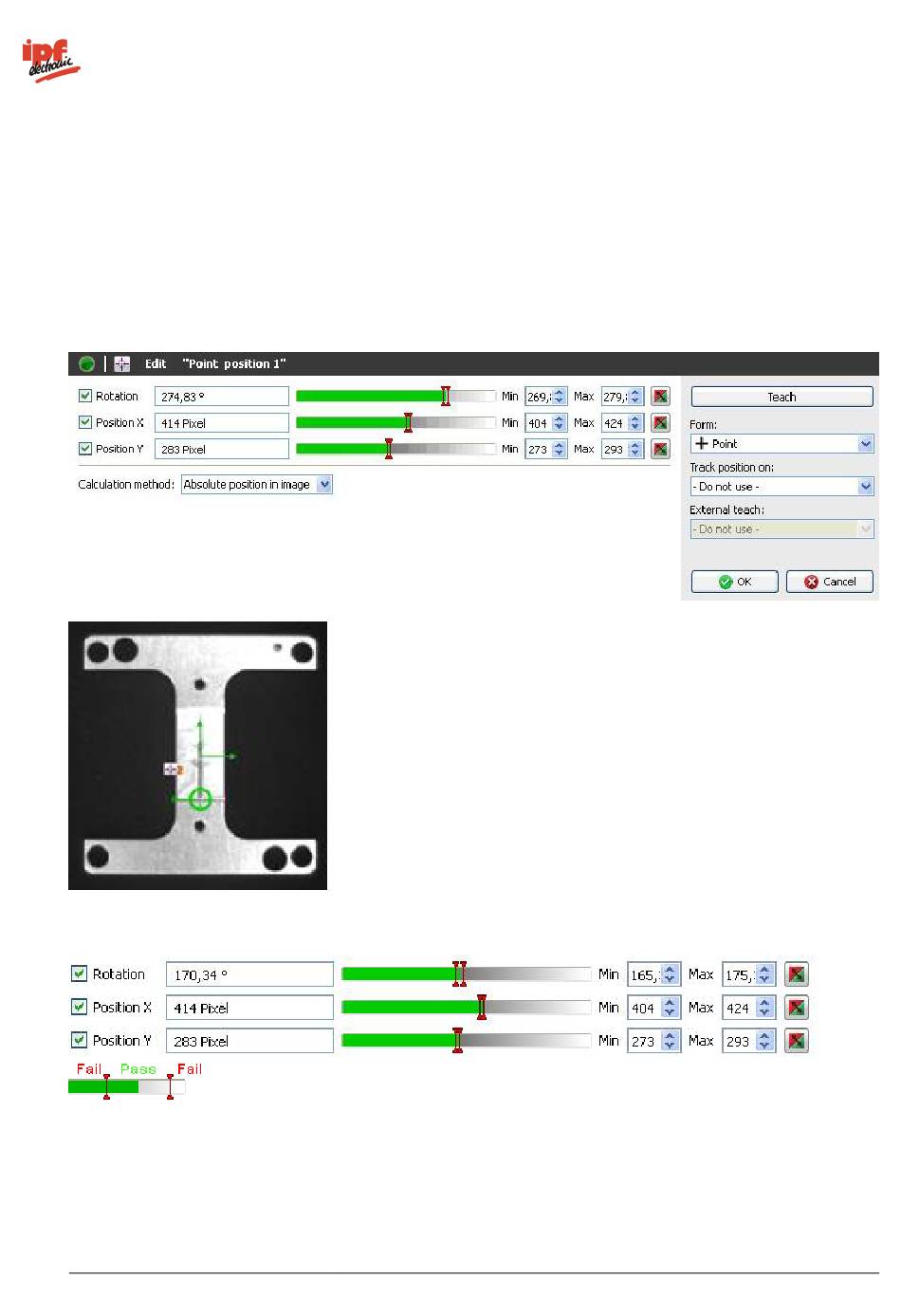

12.2.5 Point position

This feature check determines the position and rotational position of a point, as an absolute in the picture or
relative to a reference. It is therefore advisable that it is only used with part location. This feature check can,
e.g. be used to determine the grasp position for robots (pick and place).
This feature check supports external Teach. The switching points are adjusted as an absolute to the current
measured value.

Set the point on the position to be determined. You may need to rotate it with the lever.
Select the features that should be checked.

Rotation: Determine the switching points of the rotation.

Position X: Determine the switching points of the X position.

Position Y: Determine the switching points of the Y position.
The right button is used to invert the result of the feature check.
