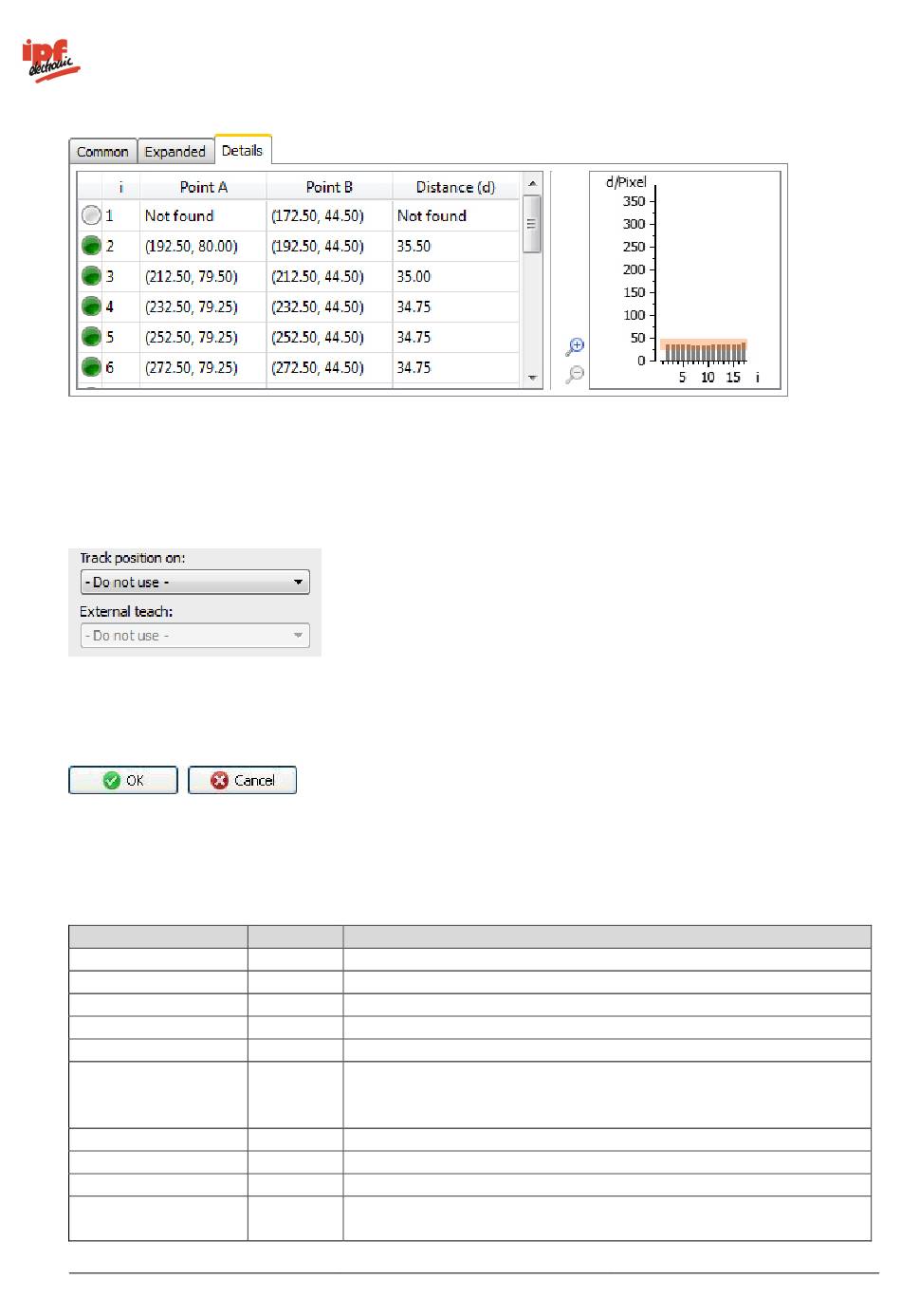

On the Details tab, there is a table showing the results for the individual search beams and a bar chart. This
tab is only used to display the values. You can zoom into the bar chart with the magnifying glass.
If you hover your cursor over one of the values in the table or a bar in the bar chart, the corresponding
search line, point or distance will be highlighted in the field of view.

If the feature check is to be corrected by the result of the part location, you can choose this option
here.

Confirm your settings and return to the feature list with OK. Return to the feature list without making
any changes with Cancel.
This feature check has the following output values for the datagram at the process interface:
Output value
Result
Number of distances
Minimum distance
Maximum distance
Difference Max-Min
Greatest difference
between adjacent
distances
Mean distance
Standard difference
Distance list
Edge point A list
v2.8.2-K11
Data type Description
Result of the feature check: "P" (Pass); "F" (Fail)
Float
Float
Float
Float
Float
Float
Float
Float list
Float-Point
Intersection between search beam and located edge
list
X – separator – Y, "NaN" if point is not found
