The device operates in two operating modes:

Activated

Configuration

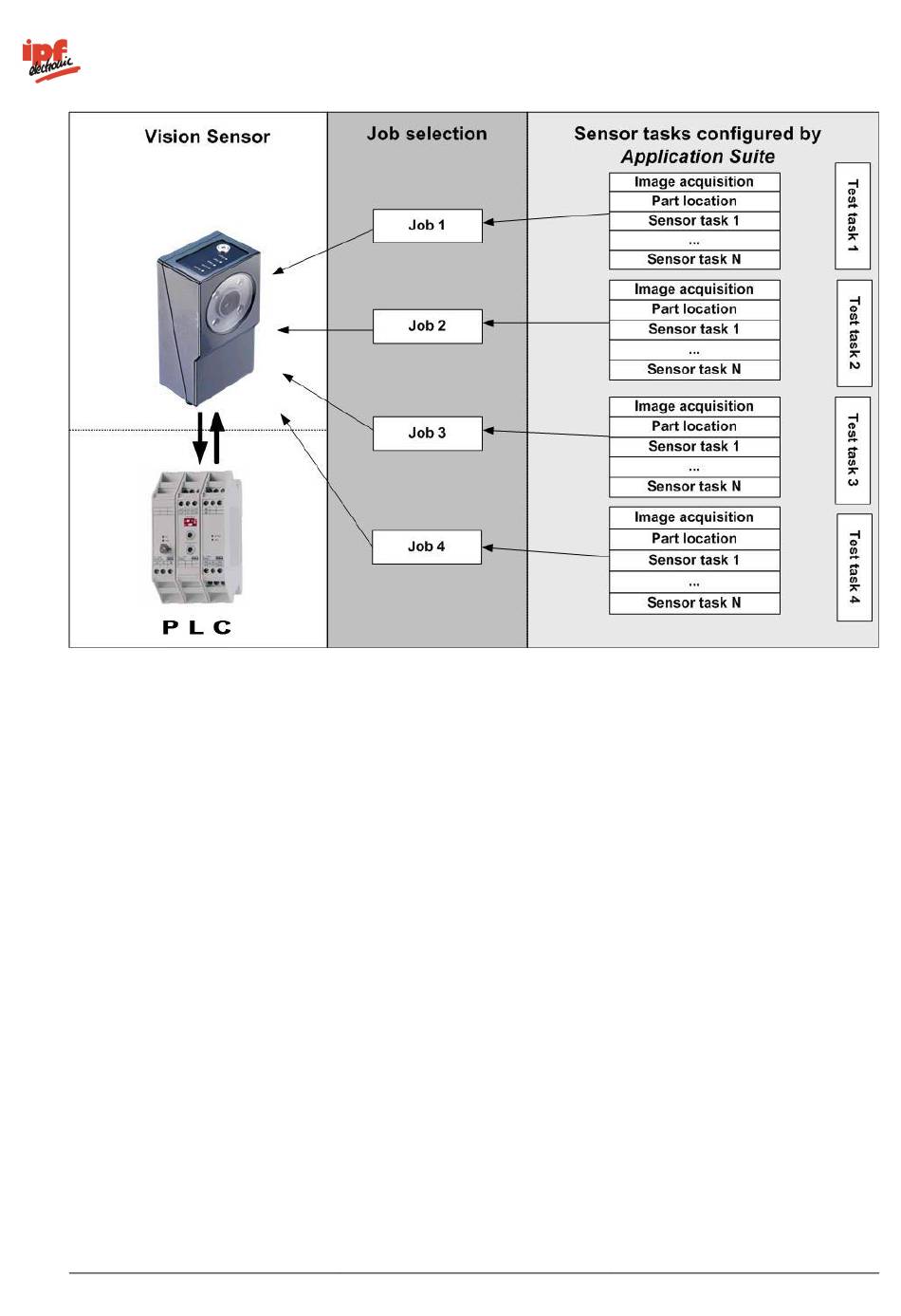

In activated mode, the inspection task is conducted. The device operates autonomously in this mode and
can communicate directly with a PLC. The device receives all commands such as trigger or job number from
the external control system and mainly returns a pass or fail result. In activated mode you can also use the
Application Suite to monitor your inspection tasks.
In the Configuration mode you can configure and set the parameters for the jobs and features to be checked.
This is conducted using the Application Suite.
Because a high-quality digital image provides many means of visual inspection, the parameters of the jobs
have to be set according to the inspection task and the application. For this purpose, the Application Suite
provides a pre-configured input mask for each feature to be checked, which supports the determination of
the optimum settings.
