10.2.11 Illumination controller (device dependant)

ATTENTION!
Erroneous settings can destroy the illumination! Please follow the information in the data
sheets for your illumination. Contact the manufacturer of the illumination if you are unsure
about admissible parameters.

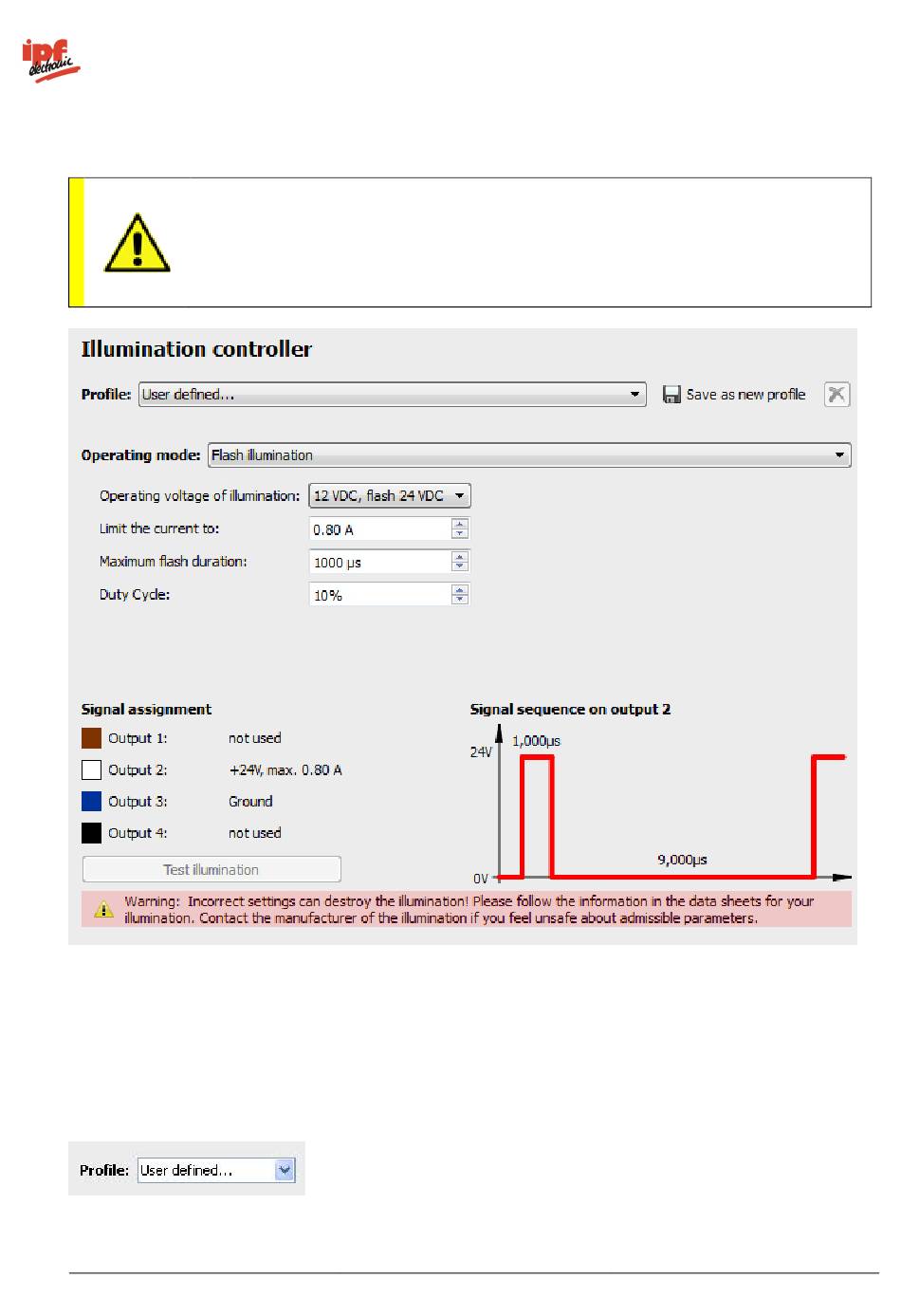

Using the illumination controller, you can make the settings at the outputs of the illumination port.
You can also use a direct "flash" (flash controller function) alongside directly controlling external illumination.
Alternatively, an unamplified signal can be output to an external flash controller.
To use the illumination controller, the device must be in Configuration mode. If the menu item is not visible,
your device does not support this function.
As soon as you have saved a profile that you created, it is available here.
