PDF417:
Reflection properties of the start/stop pattern, decoded codeword yield, unused error
correction, modulation, decodability, defects
In the AIM DPM-1-2006 mode, a total of 8 characteristics are determined (for ECC200 / QR code
only):
Cell contrast, cell modulation, fixed pattern damage, decodability, axial non-uniformity (evaluation of
the width and height), grid non-uniformity (evaluation of the slope angle), unused error correction,
mean grey value of the light modules.
NOTE

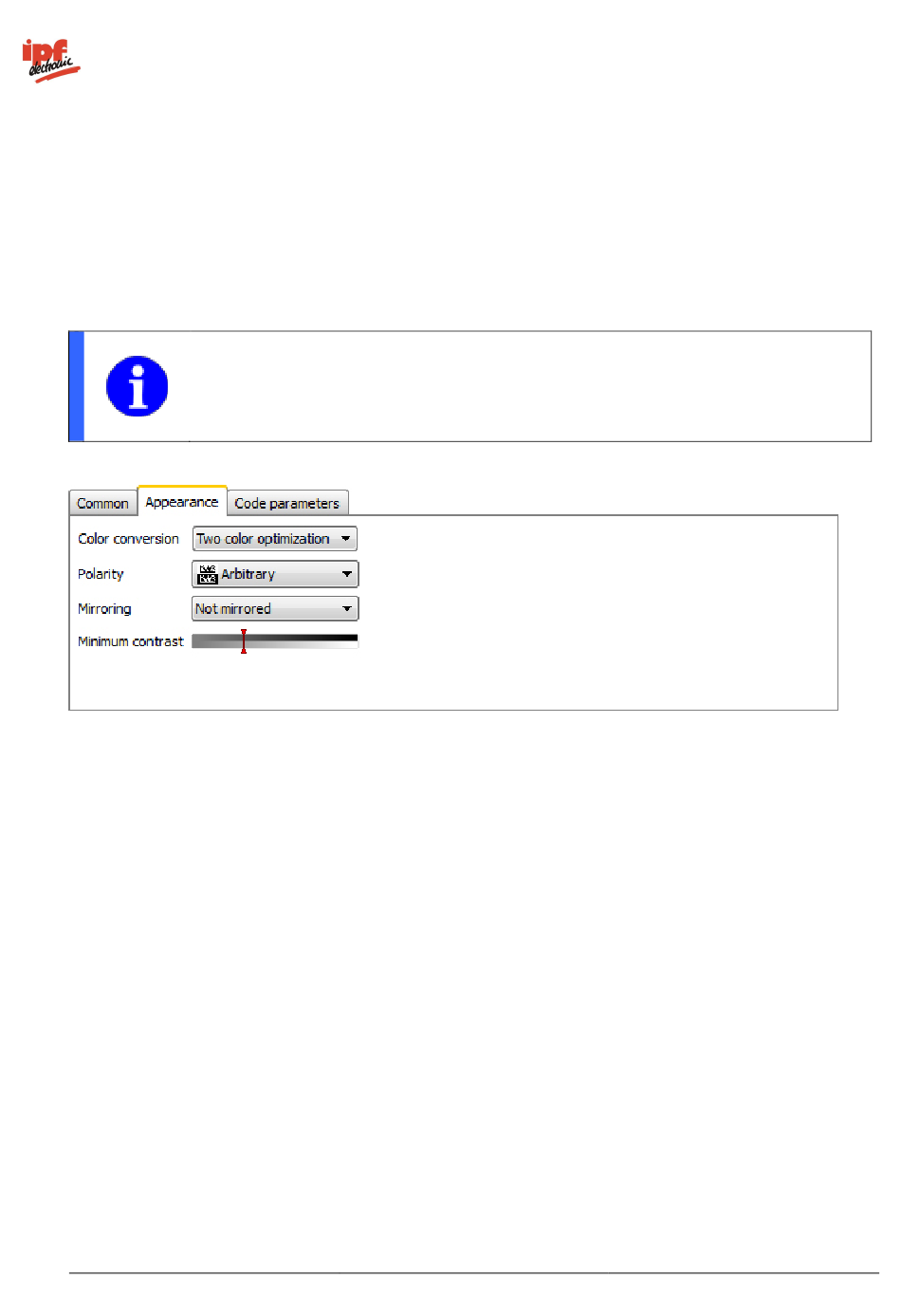

In order to be able to make the settings "Appearance" and "Code parameters" on the
tabs, you must set the Parameters on the "Common" tab to User defined.

Colour conversion: Enter the method you wish to use to convert the field of view into a black and
white image here. Select Gray value, if the black and white version of the field of view contrasts well.
Select Two colour optimization if the barcode and background appear in similarly light colours.

Polarity: Specify whether the code is brighter or darker than the background.

Mirroring: Specify whether the code is mirrored.

Minimum contrast: Specify the minimum contrast of the matrix code.
