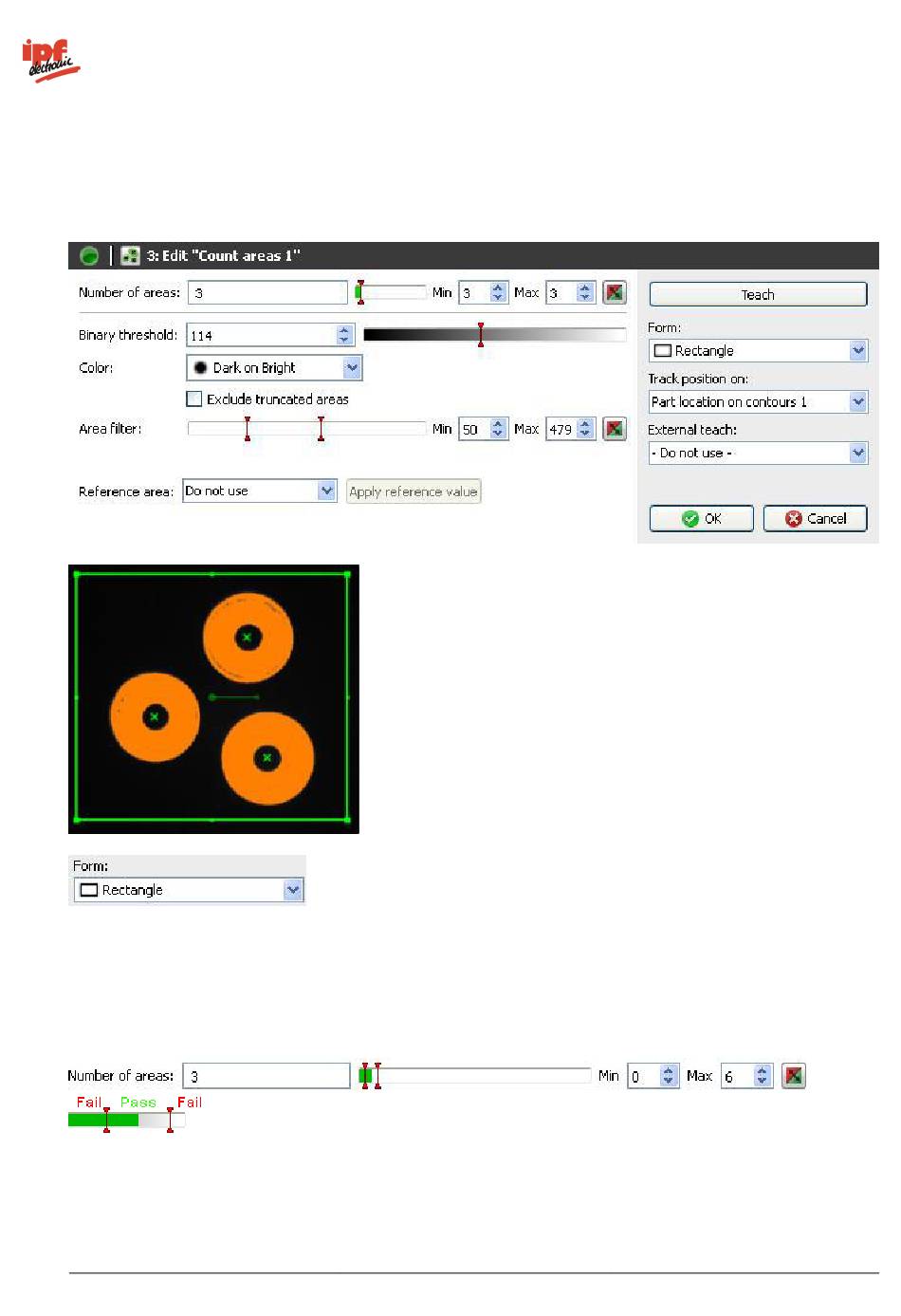

12.3.9 Count areas

With this feature check, related areas in the field of view are counted.
This feature check supports external Teach. The switching points are adjusted as an absolute to the current
measured value.

Select the shape of the field of view. A circle, a rectangle and a freely definable polygon, a circular
ring and a circular ring sector are available.

Adjust the field of view by holding the left mouse button depressed. You can rotate the rectangle by
correspondingly dragging the lever in the centre with your mouse.

The current result is displayed directly in the dialogue as the Number of areas. The switching points
designated Min and Max are adjusted on the right hand side. A graphic display is located in the
middle, in which the positions of the switching points are displayed and where they can be changed.

The right button is used to invert the result of the feature check.
