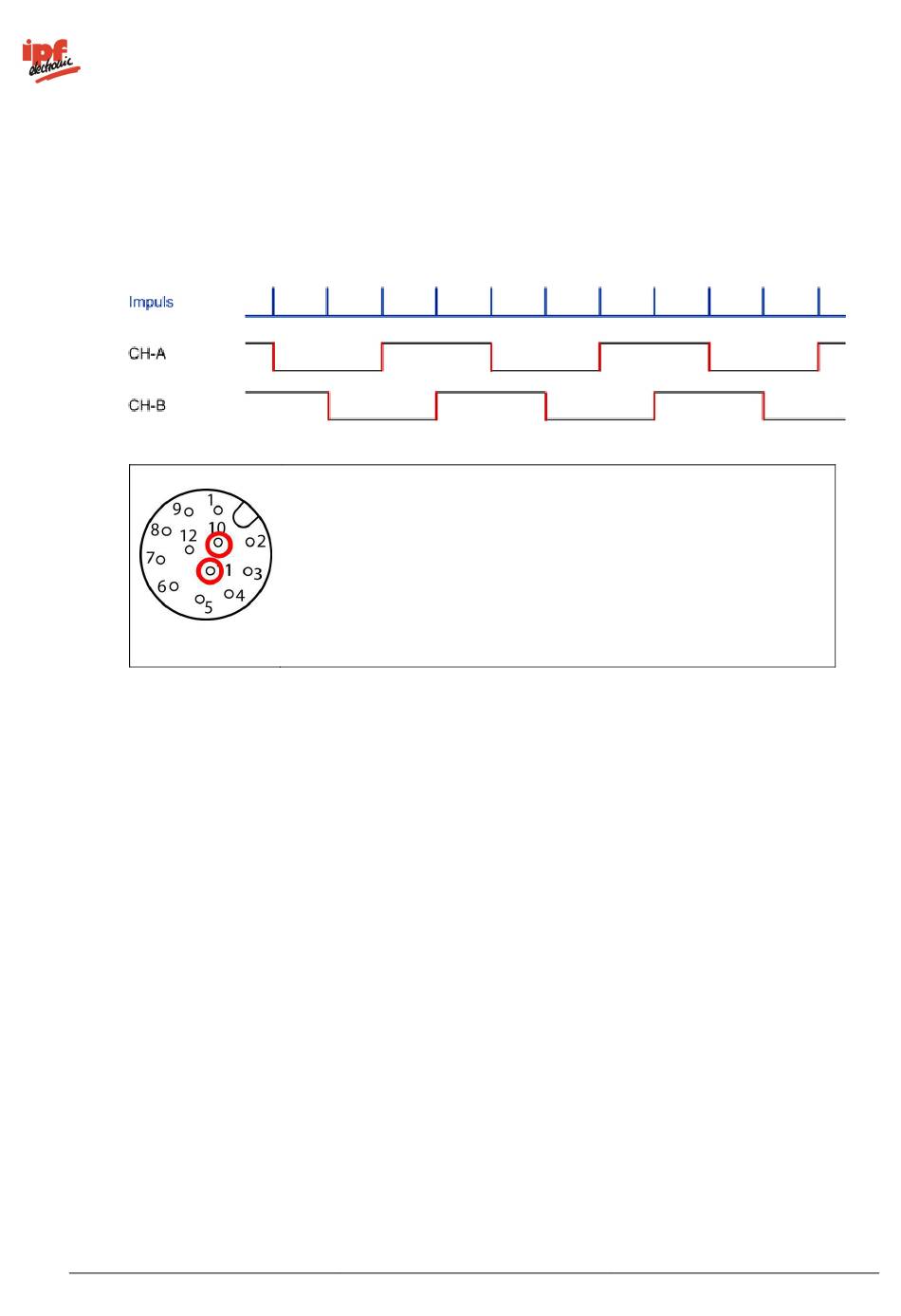

2-channel operation (CH-A and CH-B) In this mode, every rising and falling edge of the signal
corresponds to one pulse for the timing control of the device. The signals must alternate for the CH-A
and CH-B channels.
It is possible to detect the travel direction of the belt.
The maximum frequency of 500 kHz/channel should not be exceeded for reliable operation.
Pin assignment of
the power cable
v2.8.2-K11
Connect the encoder CH-A to pin 11 (IN 5; grey-pink).
Connect the encoder CH-B to pin 10 (IN 4; violet).
