15.5.3 PROFINET

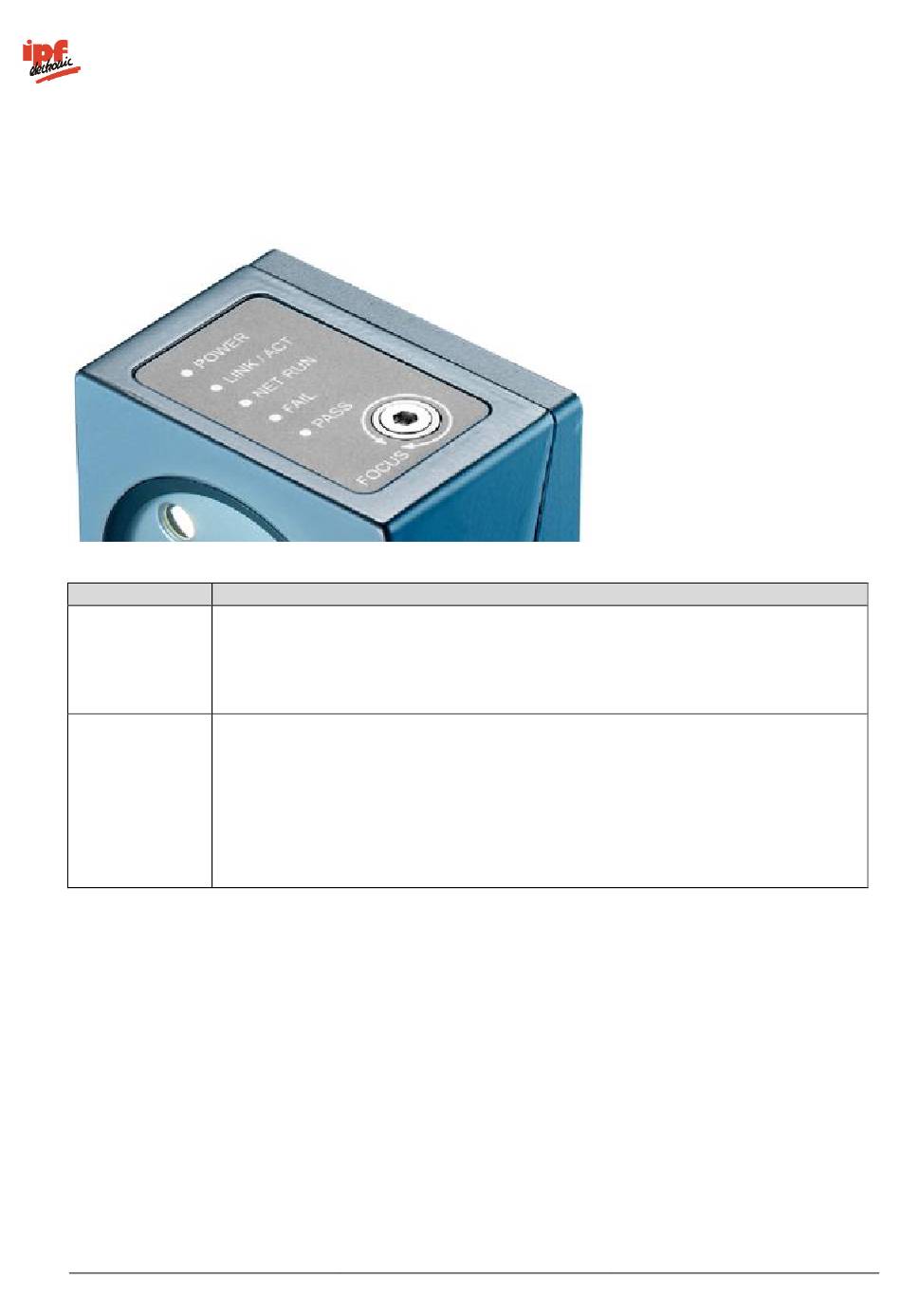

15.5.3.1 LEDs on the Vision Sensor

LED
Meaning
Indicates that the Vision Sensor is connected to a network.
LINK / ACT
Indicates that data is being transferred via Profinet.
NET RUN

15.5.3.2 Cabling

Follow the general rules for cabling Industrial Ethernet.
Use a shielded cable for data transfer. The maximum cable length is 100m. Make sure during cable
assembly that the cable shield is properly connected with the connector housing.
v2.8.2-K11
on: network connection established
blinking: data traffic active
off: Profinet will not be used
long blinking: waiting for first cyclical connection
on: cyclical connection active
short blinking: cyclical connection ended (waiting for next connection)
3 seconds of regular blinking: device identification in the system
309/332
