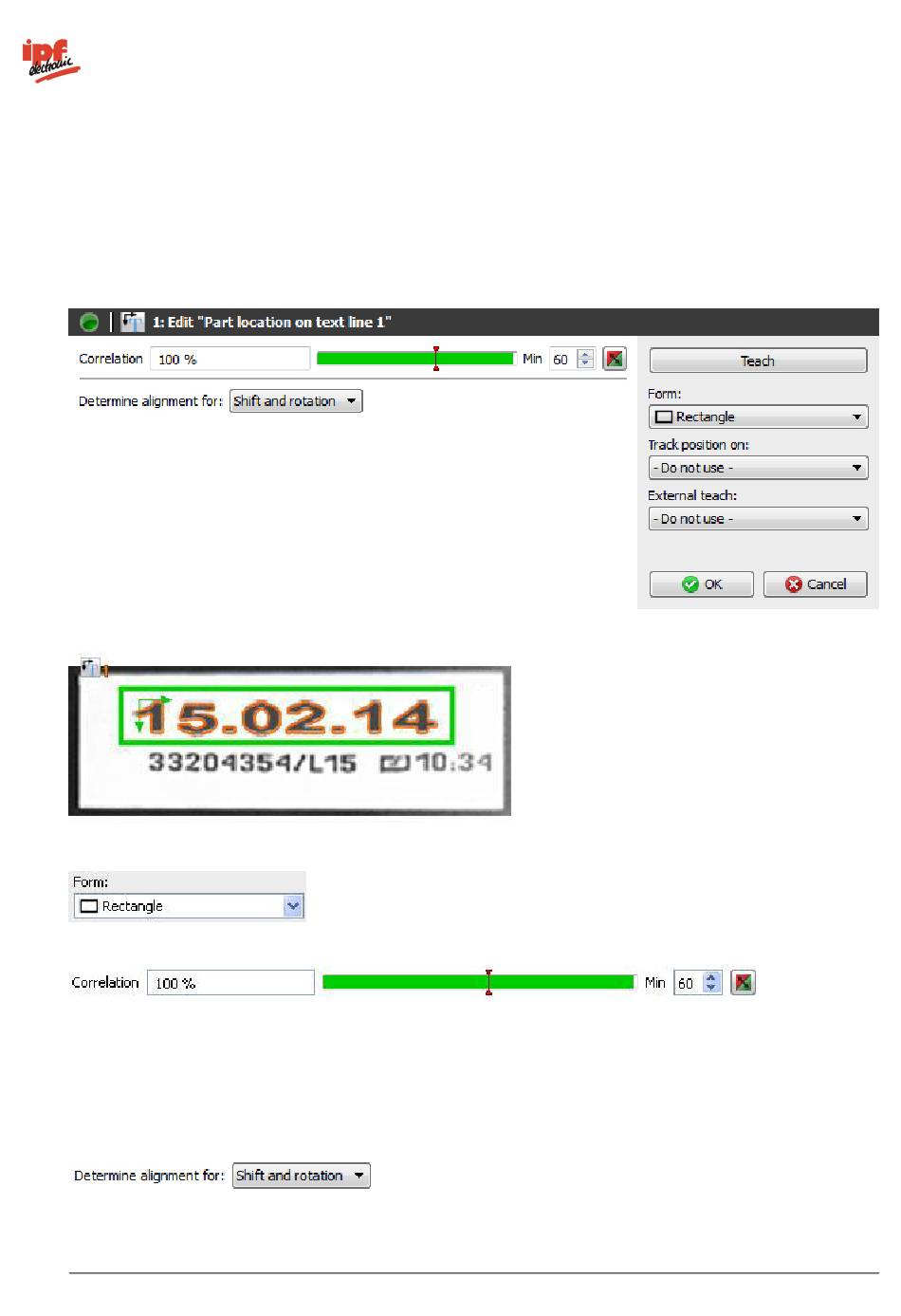

12.1.4 Part location on text line

With this feature check, the position of the text within a field of view can be determined. To do this, the field of
view must be positioned roughly parallel to the text with deviations of +/- 15
degrees being tolerated. The background of the text should be homogeneous to achieve a stable analysis.
The position found can then be used to align other feature checks, for example, the "Text" feature check.
This feature check supports external Teach. The position of the text line will be re-taught.

The conformance of the current object with the taught-in model is displayed directly. You can set the
associated switching point in the graphic display.

The button on the extreme right inverts the set point.

The switching point Min can also be edited manually.
Select which alignment should be determined:
