9.3 Configuring interfaces

9.3.1

Occupancy of digital I/Os

You can adjust the settings for the digital interface on this dialogue page.
NOTE
Please keep in mind that, during job switching, the device is not active and the "Camera
Ready" output is deactivated. Please wait with the next image analysis operation until the
"Active" state is displayed again by this signal. If the switch could not be performed, for
example, because the job number was invalid, an alarm signal is also output until the next
trigger.

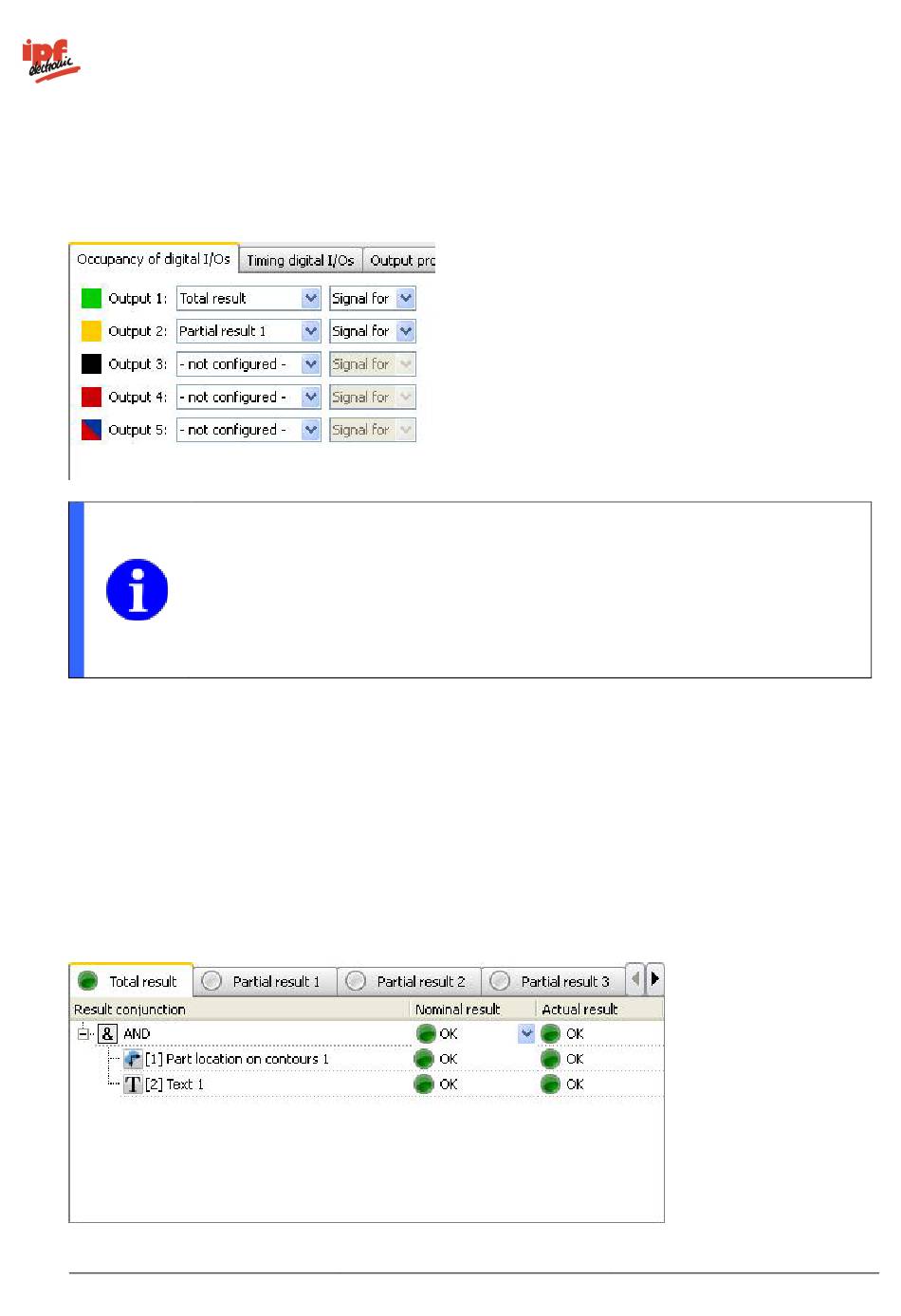

Output 1-5
Enter how the outputs are to be activated here. You can choose between these three options: Total result,
Partial result, Alarm. For the results output, you may also choose whether you want a signal to switch for a
pass or a fail result.
You may output the Total result and the Partial results via the digital interfaces. To do so, configure the
required output in Device menu.
Flexible result conjunction (device dependant)
