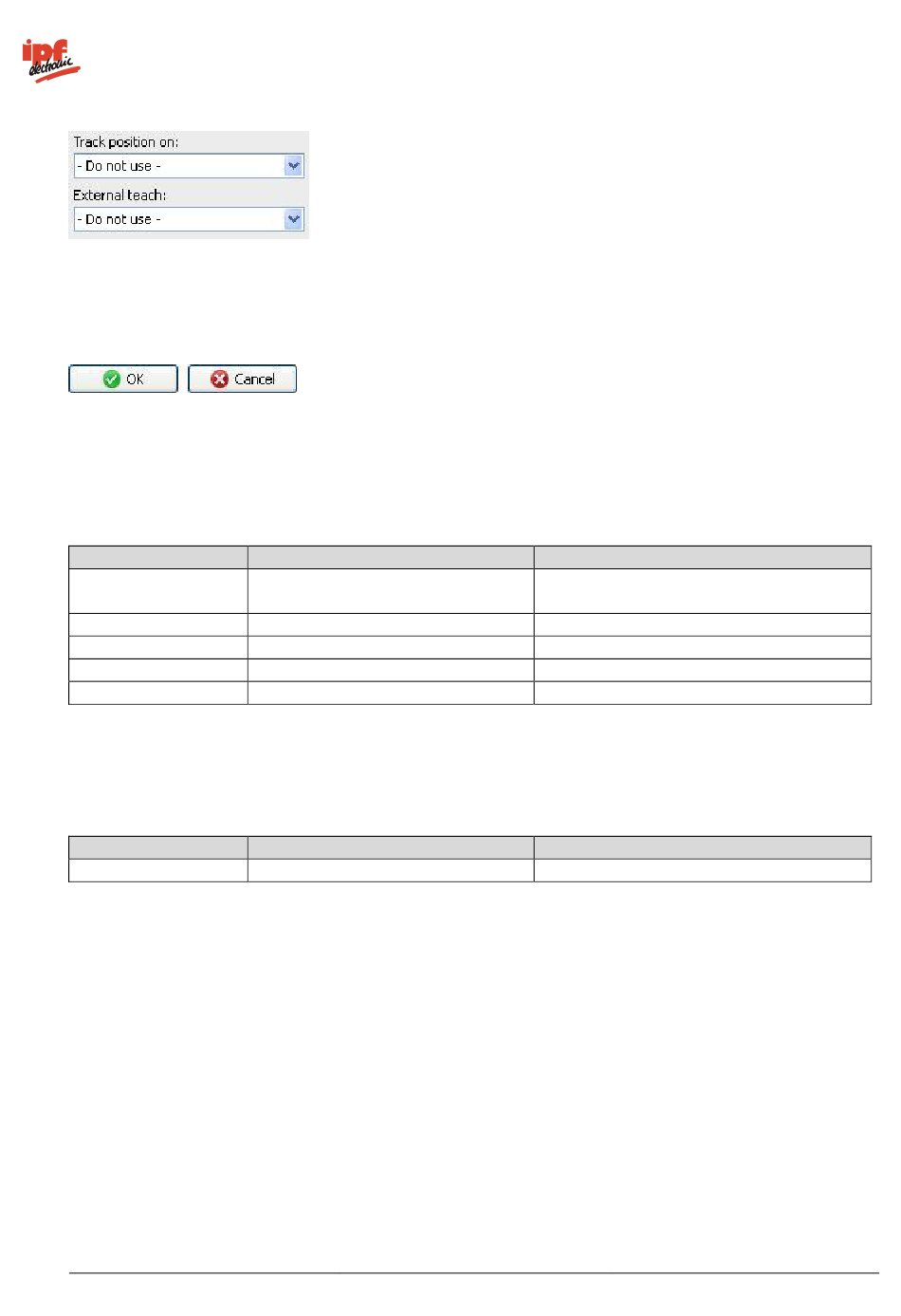

If the feature check is to be corrected by the result of the part location, you can choose this option
here. External teach also makes it possible to retrain the feature check. Select the appropriate option
for this purpose.

Confirm your settings and return to the feature list with OK. Return to the feature list without making
any changes with Cancel.
This feature check has the following output values for the datagram at the process interface:
Output value
Result
Read code
Quality
Quality (details)
Output of position
The following value can be set via the process interface. Please note that an expected value must be
provided during parametrization of the feature check.
Input value
to expected code
v2.8.2-K11
Data type
Text
Text
Text
Float point
Data type
Text
Description
Result of the feature check:
"P" (Pass); "F" (Fail)
Read result
Overall quality
Individual quality characteristics
Centre of the detected code
Description
expected code
