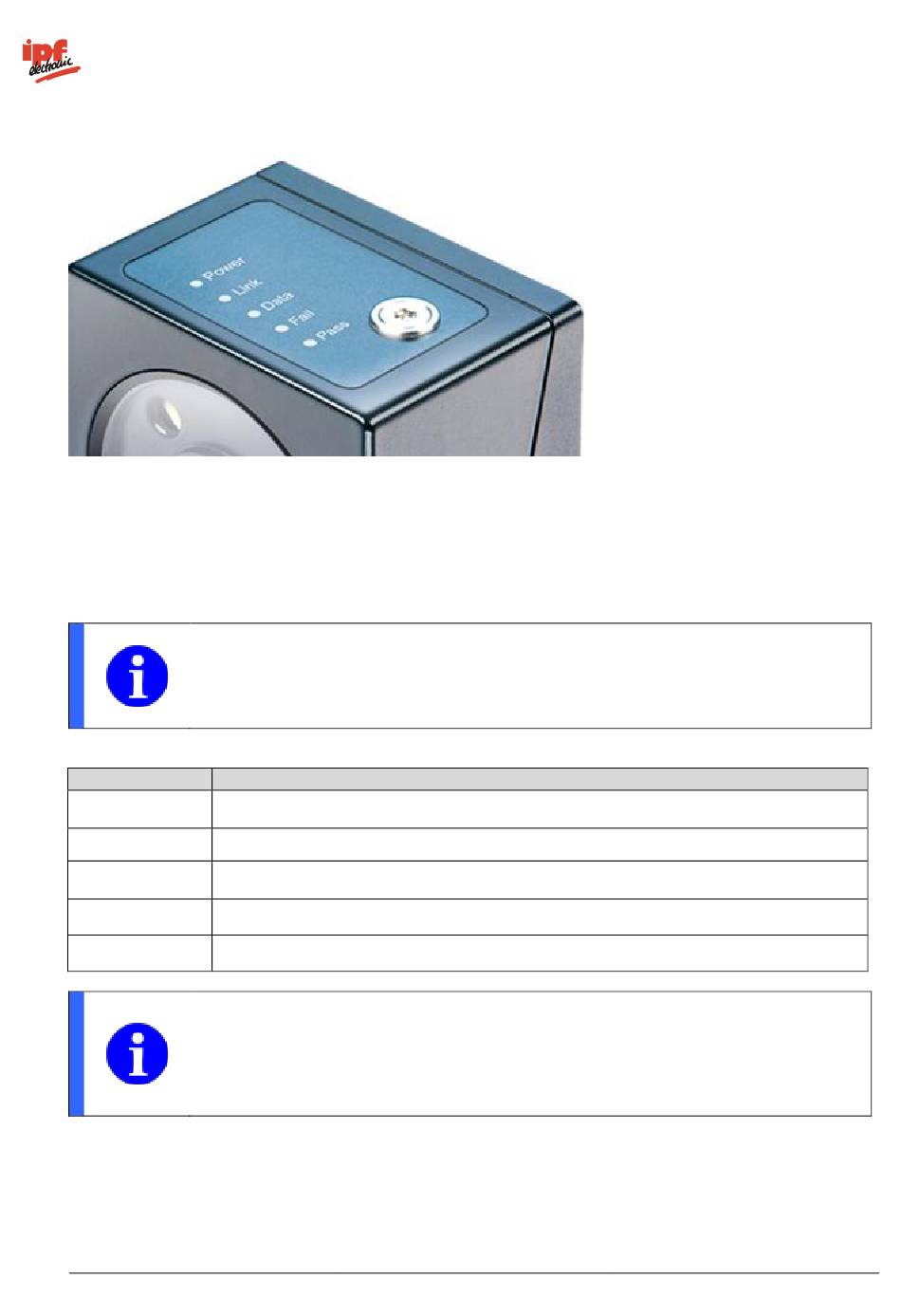

6.9 LED panel (device dependant)

A screw and 5 LEDs are located on the Vision Sensor for displaying the various states.
Image focus setting screw: Used to set the image focus.
NOTE
For devices with interchangeable lenses, the image focus is set on the installed lens.
LED
Meaning
Indicates that the Vision Sensor is being supplied with electricity.
POWER
Indicates that the Vision Sensor is connected to a network.
LINK
Indicates that data is being transferred.
DATA
Lights up when a feature check has been failed.
FAIL
PASS
Lights up when a feature check has been passed.
NOTE
Pass/Fail flash quickly and alternately: Vision Sensor starts
Pass/Fail flash simultaneously: Vision Sensor is in Recovery mode
v2.8.2-K11
28/332
