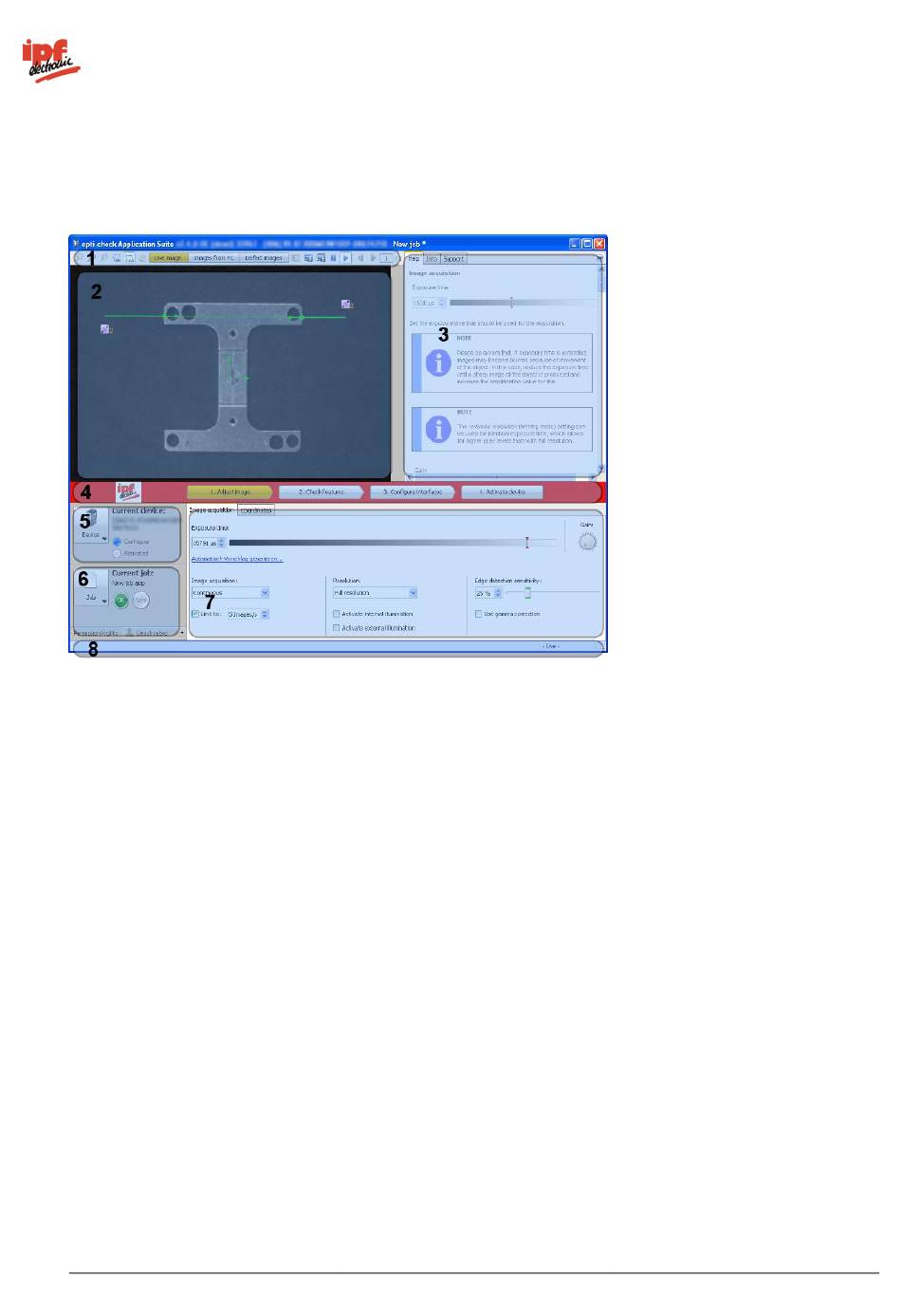

7 Overview of the Application Suite

The Application Suite is used for the initial set-up, job creation, configuration, service and maintenance of the
device. You can monitor the progress of the job in the Activated mode.
v2.8.2-K11 30/332
Technical Documentation
opti-check
1
Image display options
2
Display screen
3 Help, info and support
window
4 Job bar
5 Device menu /
Operating mode display
6 Job menu / Result and
user display
7
Parametrization area
8 Status bar
