Saving images to the FTP server
Saving images: Select the images to be stored on the FTP server.
(NOK only = all images with the total result of "Fail", OK only = all images with the total result of "Pass")
Number limit: Use this function to limit the number of images stored. If the limit is reached, the older images
will be overwritten.
Image directory on the server: Select a directory on the FTP server where images are to be stored.
Name of image series: Provide a name for the image series.

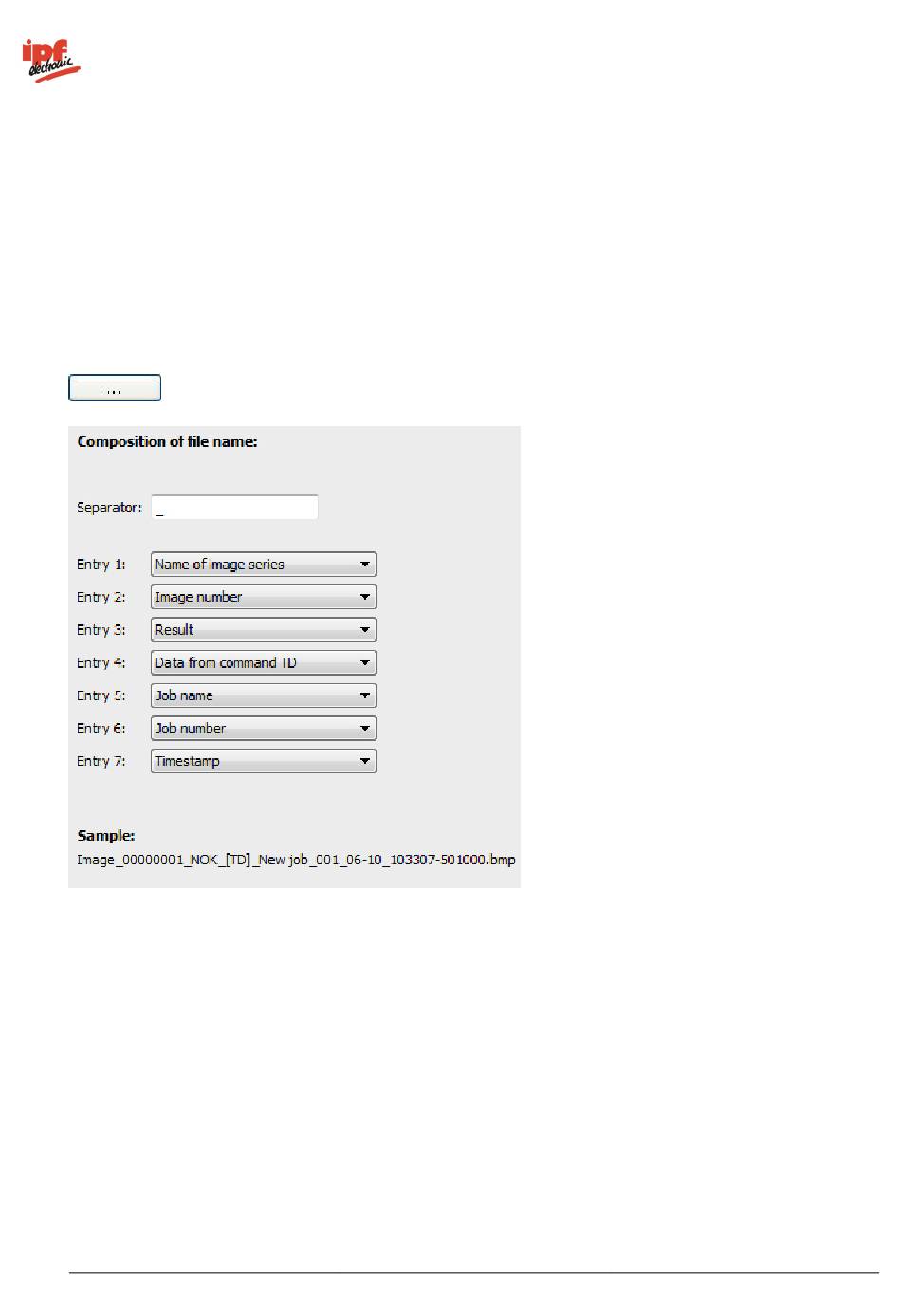

You can configure the structure of the file name.
The file name configuration gives you the option to freely arrange up to seven entries. You can also define a
separation marker.
The entry options for the device are:

the chosen name of the image series

sequential numbers generated by the system (00000001 – 99999999)

the result of the analysis

the additional data applied to the image using the TD command

the job name

the job number

a time stamp (when saving images to the PC and backups from the PC: PC time; backup from the
browser: Browser time (i.e. PC or plant computer; saving images to FTP: Time from FTP server (the
Vision Sensor time is synchronised with the FTP server every time it is restarted).
Backup via FTP
Directory for backup: Select a directory on the FTP server where the backups are to be stored.
