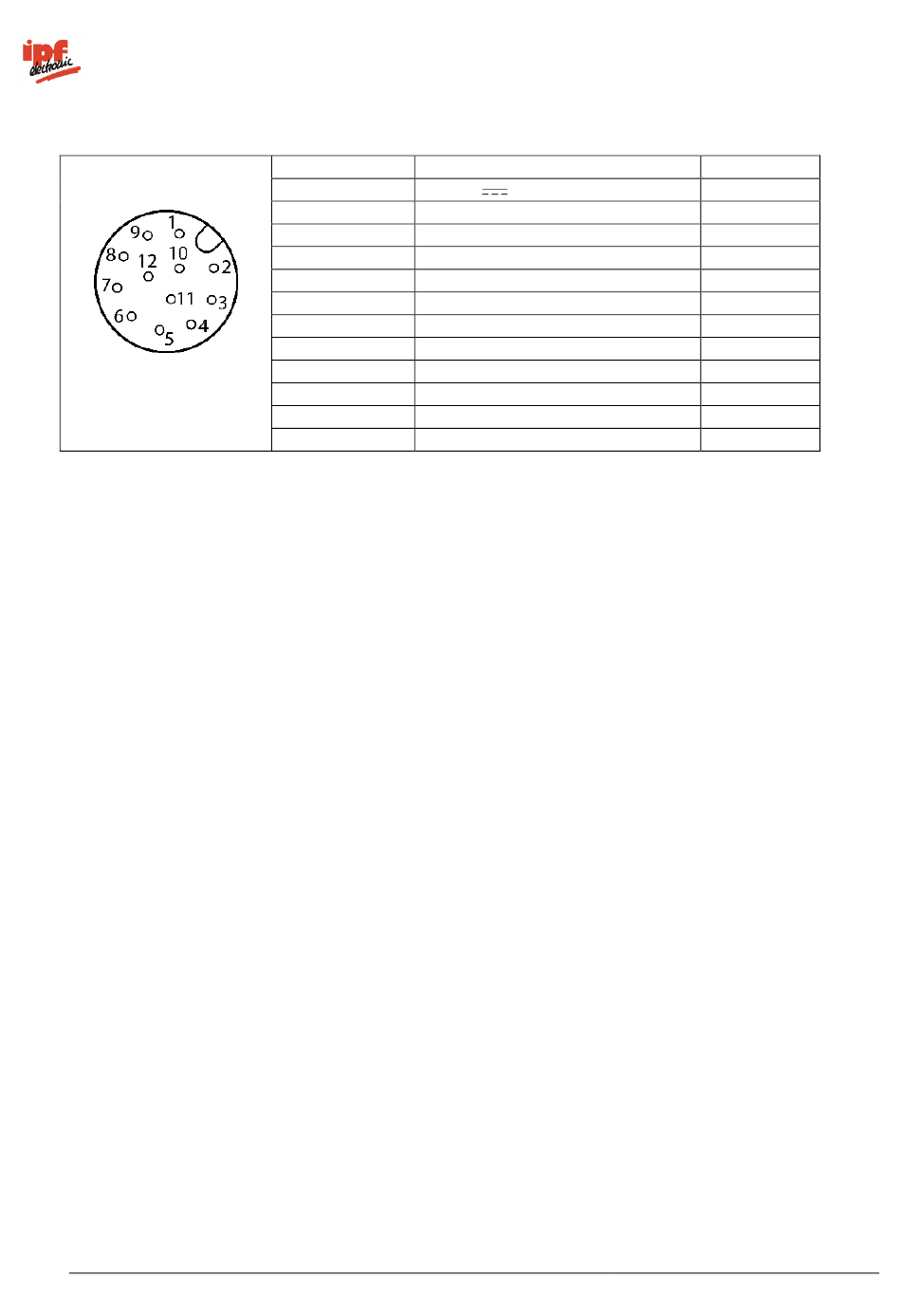

17.12 Power Cable M12 / 12-pin
Pin assignment of the
connecting cable (M12)
v2.8.2-K11
Pin
Designation
1
Power (
2
Ground
3
IN1 (Trigger)
4
OUT 1 (PTC-protected)
5
IN 2
6
OUT 2 (PTC-protected)
7
OUT 3 (PTC-protected)
8
IN 3
9
OUT 4 / RS 485+ (PTC-protected)
10
IN 4
11
IN 5
12
OUT 5 / RS 485- (PTC-protected)
332/332
Technical Documentation
+ 18 - 30 VDC)
opti-check
Colour code
brown
blue
white
green
pink
yellow
black
grey
red
violet
grey-pink
red blue
ipf electronic GmbH
Lüdenscheid, Germany
