6.3 Electrical installation

For initial set-up, you will require:

the Vision Sensor,

Installation CD for the Application Suite,

a M12-connecting cable (not supplied)

an Ethernet cable (not supplied)

a normal PC with Ethernet interface (not supplied).
NOTE
For optimum electrical noise immunity, the use of shielded cables is recommended.
ATTENTION!
The IP protection class is only valid if all connectors are connected as described in the
technical documentation and, for devices with protection class IP 69K, if the sealing screw
on the lens setting opening is correctly screwed in.
ATTENTION!
When connecting the power, ensure that all cables are connected correctly according to
their colour codes!
You will find the voltages necessary, the pin assignment and the corresponding electrical
power under Technical Data.

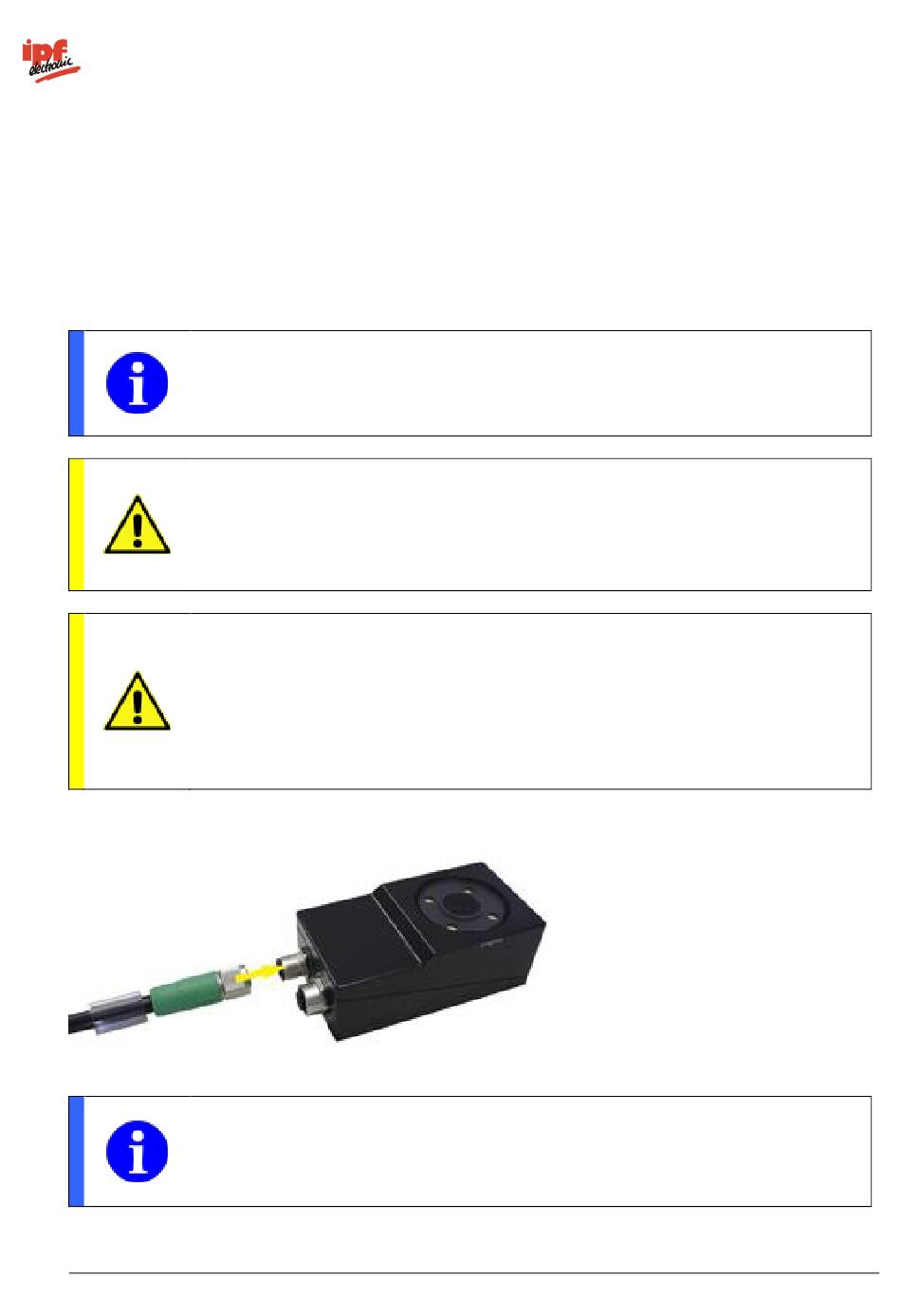

Screw the 12-pin power cable with M12 plug onto the power supply connection on the device.
NOTE
After installing the software, you can check the correct assignment of the digital
connections in the menu: Device → Digital I/O-Assistant.
