Example

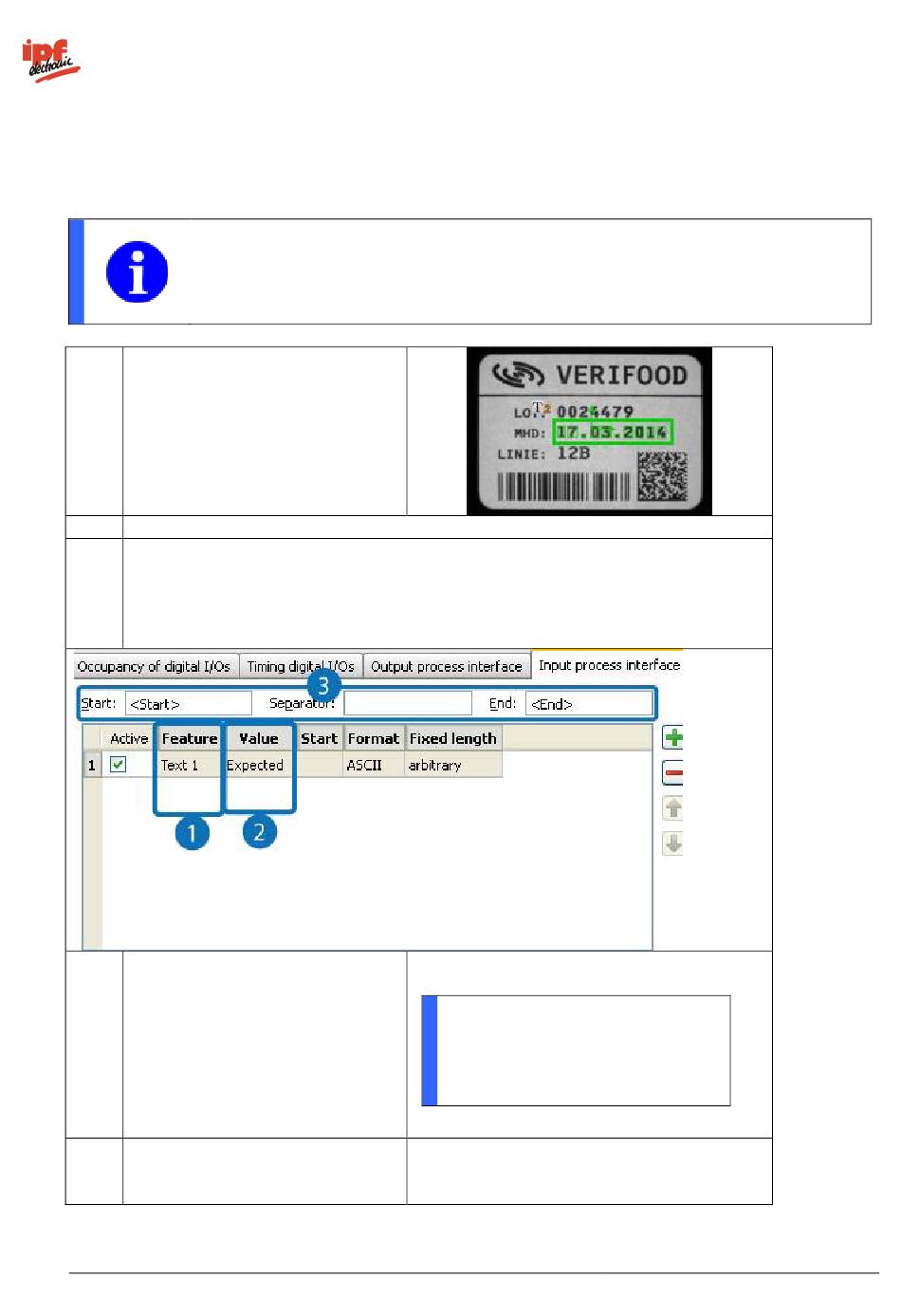

Setting an expected value for the Text feature check via the process interface and determining the required
command.
NOTE
The preview window on the right shows you in real time how your settings affect the data
to be sent.
1. Configure the Text feature check.
Go to the Configure interface → Input process interface step.
2.
3. Configure all of the settings in the overview for the data input (see Data table
settings).
(1) Select the feature check / setting to be set.
(2) Select the value to be output.
(3) Set the start character, separator and end character for the datagram.
4. You will now see the current set
value in the preview window on the
right. The SP (Set Parameter) and
the number of characters (4 byte
ASCII-Hex) will also be prefixed
(see SP command)
5. The command to set the expected
value for the device to this date is
therefore:
v2.8.2-K11
<Start>17.03.2014<End>
NOTE
If no value is set as "expected" during
configuration of the feature check, no value
will be shown in the preview window!
SP0017<Start>17.03.2014<End>
(Note: 0017 = 23 , length is therefore 23 characters)
HEX DEZ
