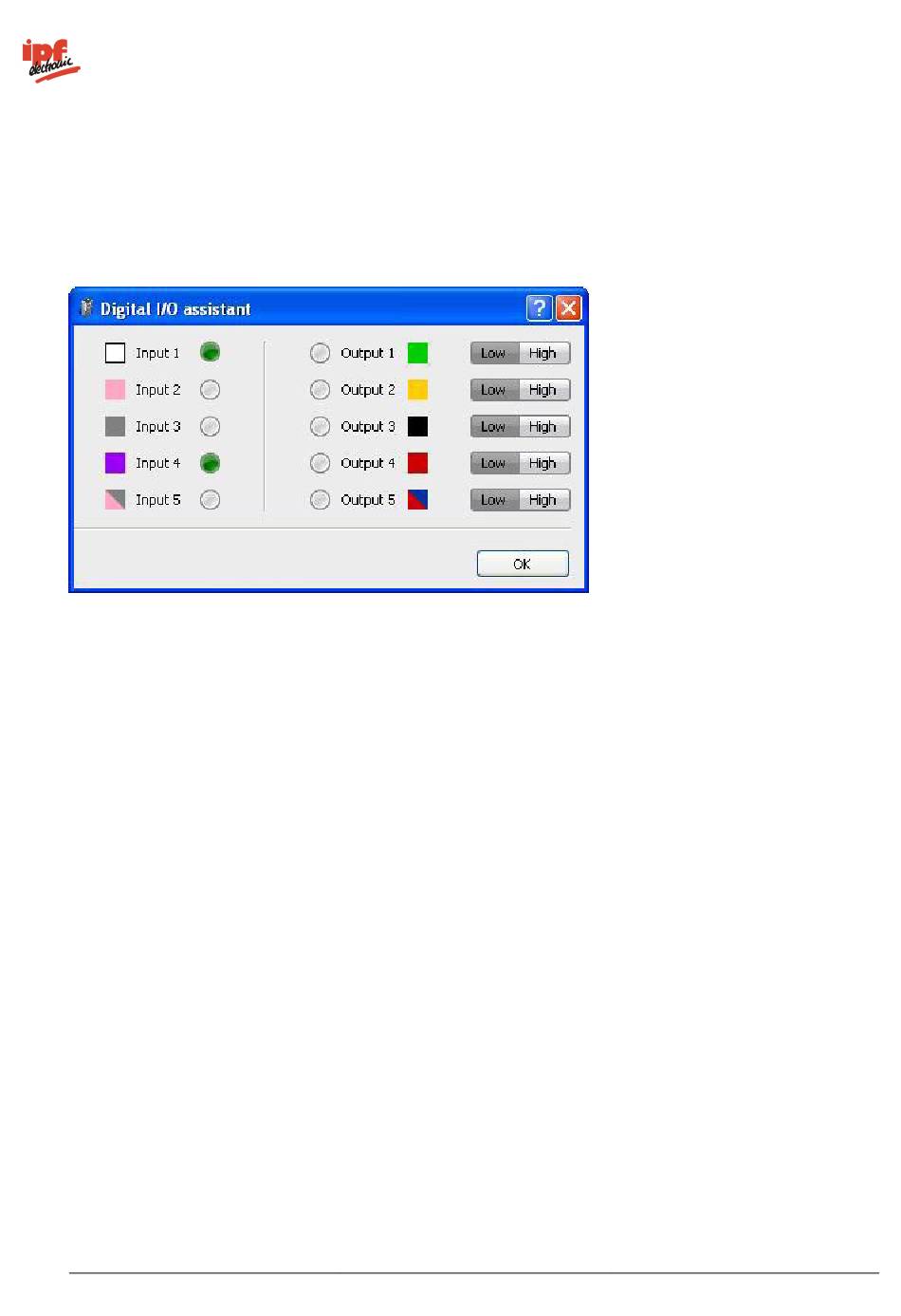

Set the appropriate output on or off using the Low/High button.
In the example, Output 1 and Output 3 are set. This means that power is now applied to Output 1 and Output
3.
Example using inputs
In the example, applied power is registered on Input 1 and Input 4.
