11.6.2 Test Protocol – Statistic

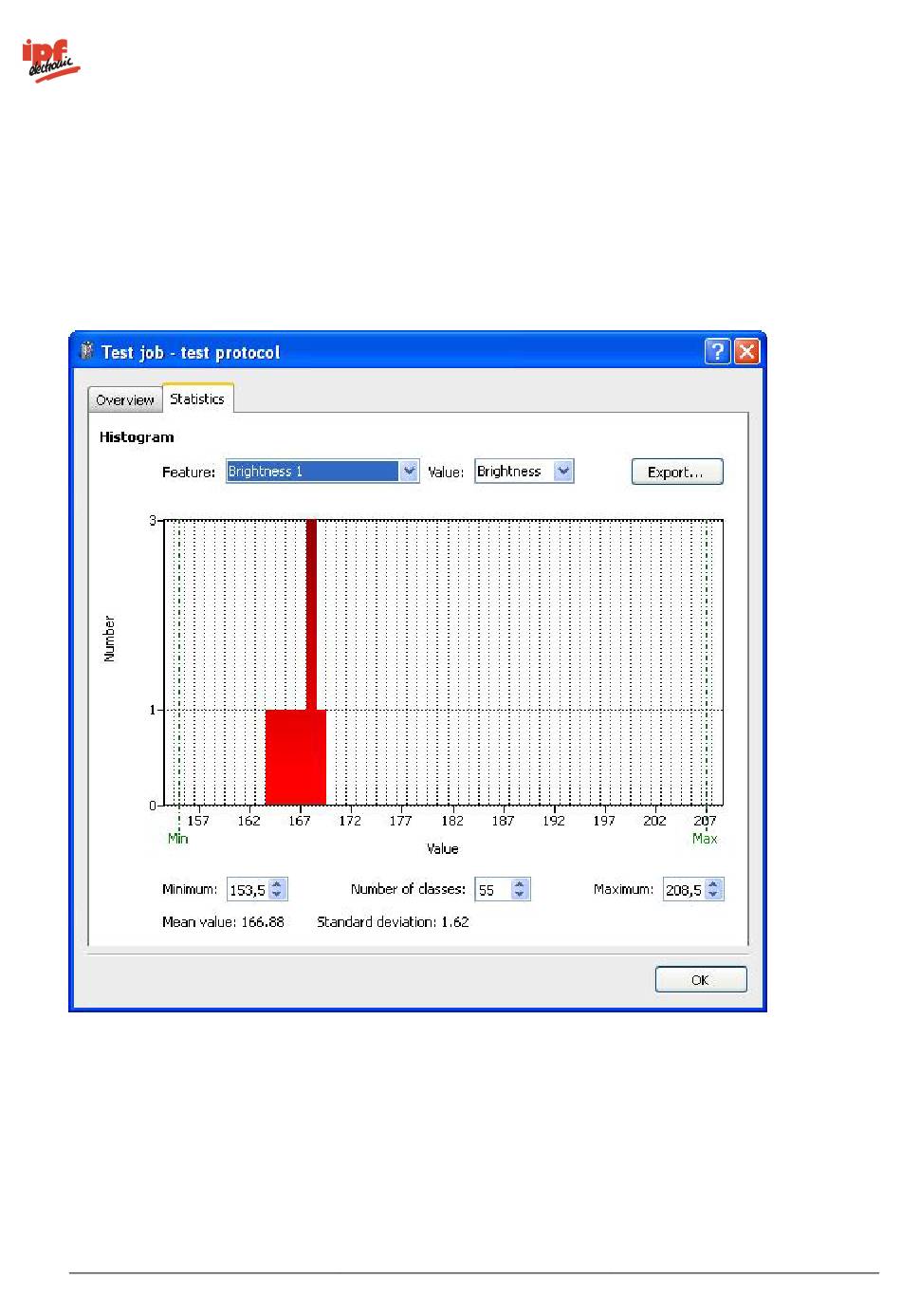

On the Statistics tab, you can even evaluate the job just tested using its individual feature checks according
to various criteria. The results are displayed graphically using a histogram.
The currently displayed result can be exported as a *.csv or *.txt file.
Under Feature, select the feature of the tested job or the entire job (number of OK/NOK) to be evaluated.
Under Value, you may evaluate the numerical results of the feature check (the angle of the object's rotation
in the event of a part location).
Minimum: Set the minimum of the range of values here.
Number of classes: You can set the scaling between the Minimum and Maximum here.
Maximum: Set the maximum of the range of values here.
If you move the mouse pointer over the histogram, a tool tip appears containing the values of the current
mouse pointer position.
The average and the standard deviation of the evaluation are displayed in the lower region.
