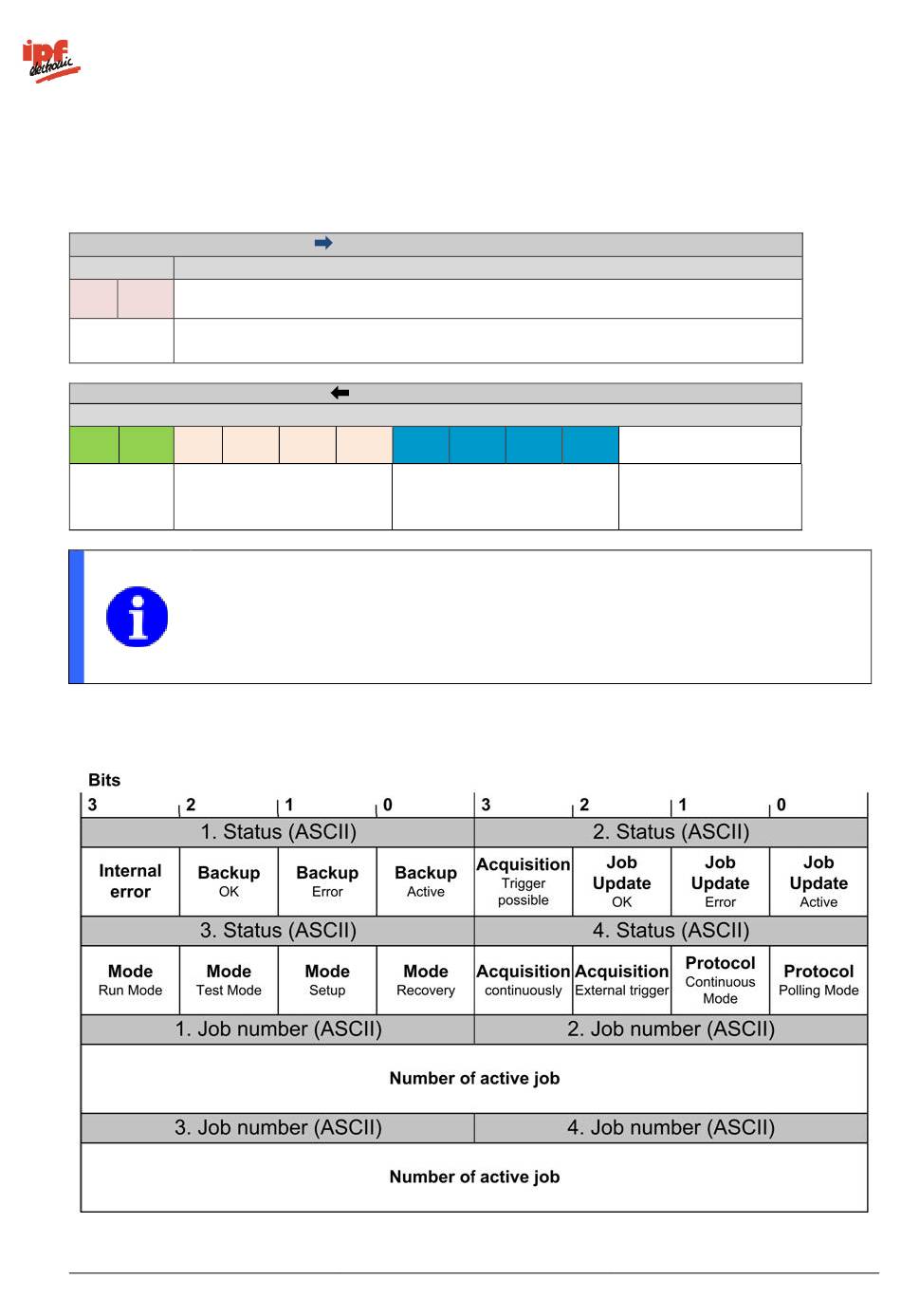

15.4.8 GS command – request status
This function enables you to access current status information for the device.
Example
Structure of the command PLC
Command Parameters
G S
Get State none
Structure of the Response PLC
Response
R S 0
Response 4 byte ASCII hex
State Status
NOTE
A TCP/IP connection can be monitored, for example for when the PLC cyclically sends
the "GS" command. If the connection is broken, this is shown on the Vision Sensor page
and the connection is reset.
Parameters of the "RS" command – Current status information
The current status information consists of 8 characters, of which the first 4 characters describe various states
in a bit mask and the other 4 characters contain the current job number.
v2.8.2-K11
device
device
0 8 5
4 byte ASCII hex
Number of the active job
0 0 1 A
279/332
