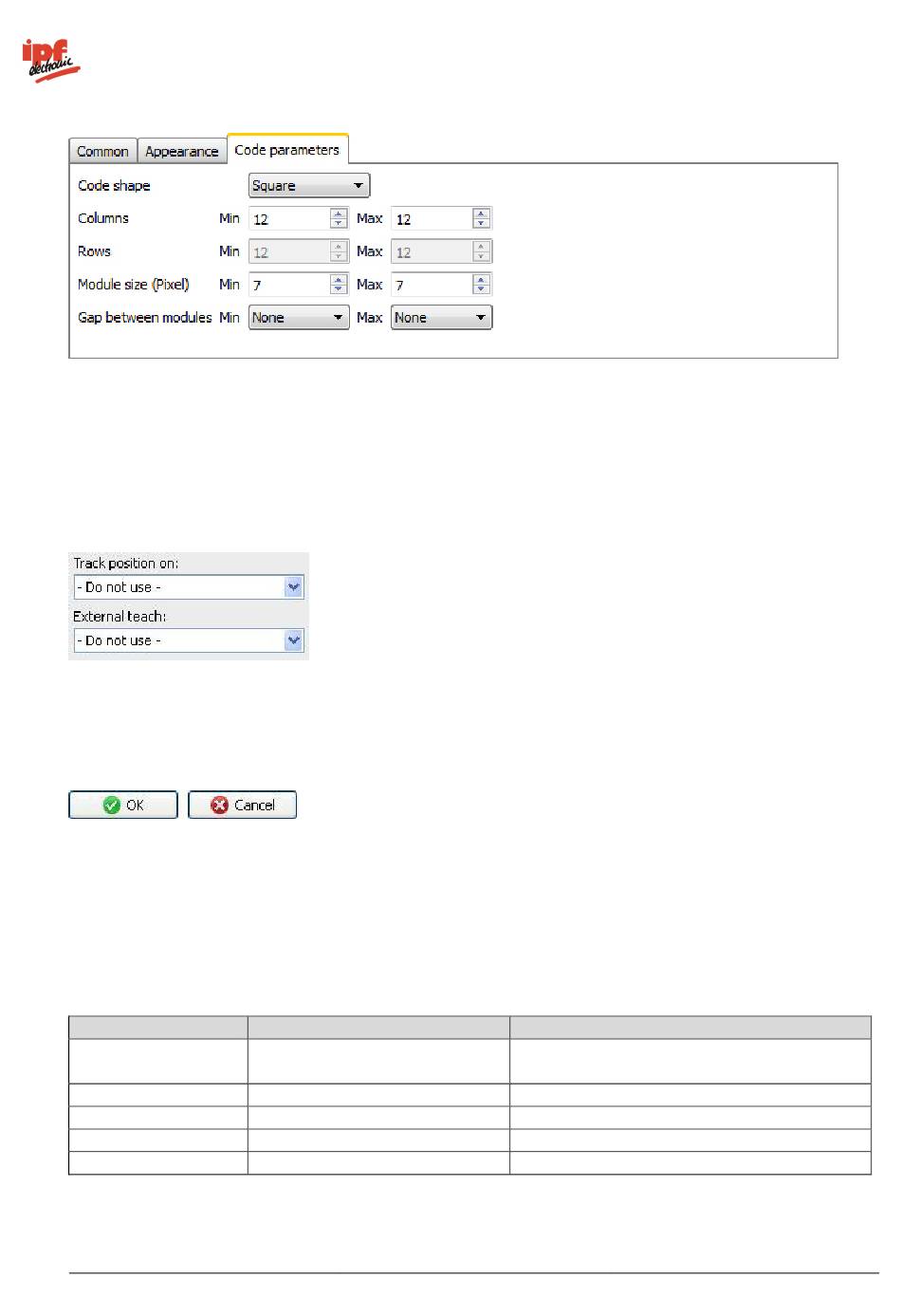

Code shape: Specify the shape of the code to be found. For code type Data Matrix: (rectangular,
square, arbitrary). For code type QR code: (Model 1, Model 2, arbitrary).

Columns: Specify the number of columns of the module.

Rows: Specify the number of lines of the module.

Module size (Pixel): Specify the size of a module.

Gap between the modules: Specify whether gaps may occur between the modules.

If the feature check is to be corrected by the result of the part location, you can choose this option
here. External teach also makes it possible to retrain the feature check. Select the appropriate option
for this purpose.

Confirm your settings and return to the feature list with OK. Return to the feature list without making
any changes with Cancel.
This feature check has the following output values for the datagram at the process interface:
Output value
Result
Read code
Quality
Quality (details)
Output of position
v2.8.2-K11
Data type
Text
Text
Text
Float point
Description
Result of the feature check:
"P" (Pass); "F" (Fail)
Read result
Overall quality
Individual quality characteristics
Centre of the detected code
